Coxreels EZ-PC13L-5012 Power Cord Reel 50 Ft Spring Drive

Product Description

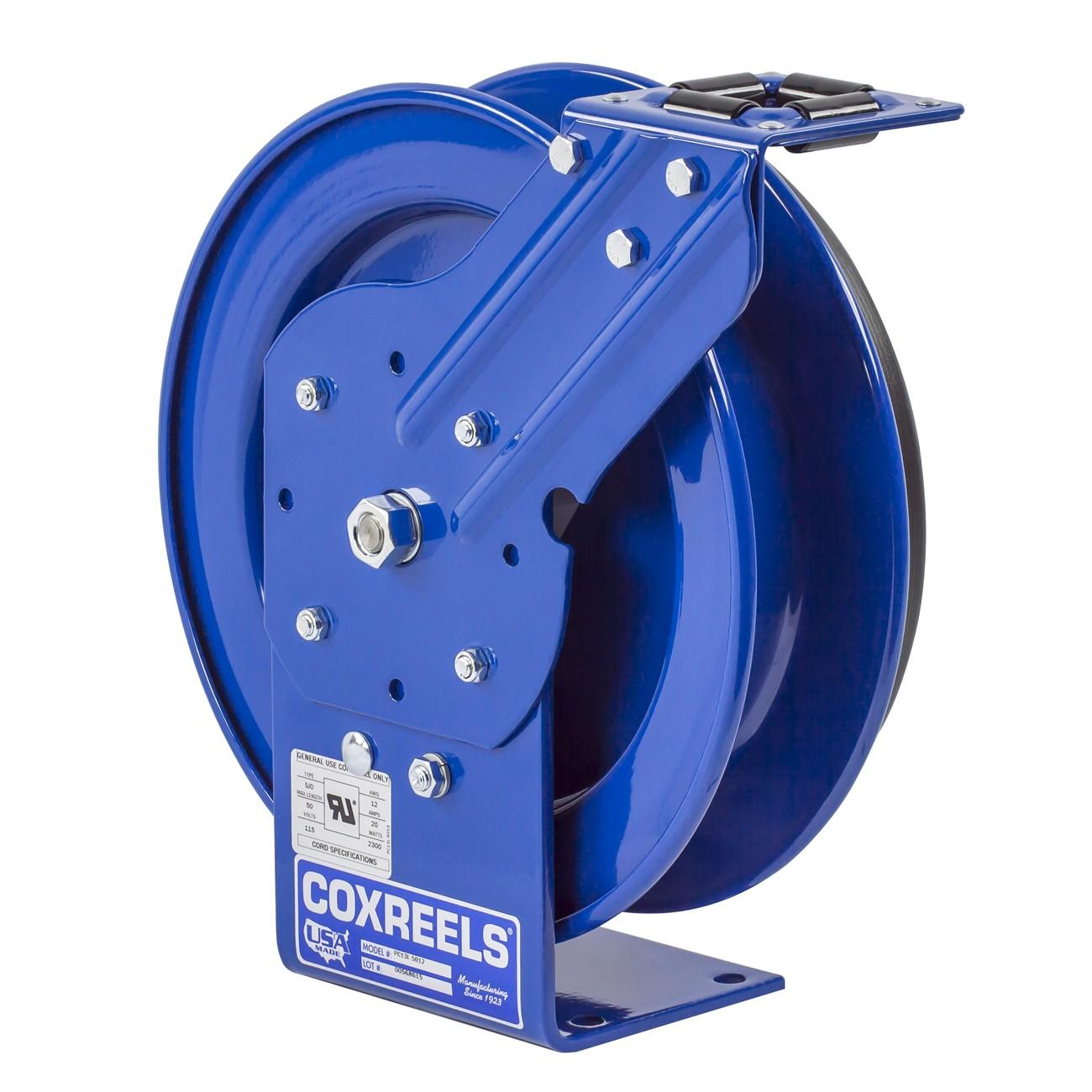

The COXREELS EZ-PC13L-5012 is a spring-driven power cord reel built for industrial and commercial environments where a tangled extension cord is a productivity and safety hazard. Part of the EZ-PC Series, this reel features the patented EZ-Coil retraction system, which slows retraction speed up to 80 percent compared to conventional reels, reducing snap-back risk and cable wear. The steel construction and powder coat finish are engineered for long-term, trouble-free use under demanding conditions. Licensed electricians and maintenance professionals install this reel in facilities, service bays, and mobile work vehicles.

The EZ-PC13L-5012 is suited for industrial facilities, commercial maintenance operations, automotive service shops, and fleet vehicle installations where a reliable, self-retracting 50-foot power cord reel is required. The multi-position guide arm allows mounting on walls, floors, ceilings, or vehicles, giving installers flexibility across a wide range of job-site configurations. The externally accessible slip ring cover means routine maintenance can be performed without removing the reel from its mount, reducing downtime during service calls.

Key Features

• EZ-Coil spring-driven retraction slows cord return up to 80 percent slower than conventional reels for improved safety
• Enclosed, lubricated cartridge-style motor is removable for maintenance without full reel disassembly
• External heavy-gauge powder-coated steel component cover allows slip ring service without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and cord protection
• Solid one-piece steel base with single pedestal support post, no-weld construction, for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• Chip-resistant, rust-inhibiting powder coat finish with permanently lubricated precision bearings

Compatibility

Designed as an OEM-style industrial power cord reel replacement compatible with applications previously served by tangled extension cord setups in fixed and mobile installations. Modeled after the Coxreels P and SH Series form factor for familiar fitment in existing mounting configurations.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. Disconnect and lock out all power sources before wiring the cord reel or servicing the slip ring assembly. Verify that the mounting surface and hardware are rated to support the reel weight before securing. Do not exceed the cord reel rated capacity for cord length or current load.

Technical Specifications

• Cord Length: 50 feet
• Drive Type: EZ-Coil Spring Drive
• Material: Steel
• Length: 13 inches
• Width: 17 inches
• Height: 15.25 inches
• Weight: 29 pounds
• UPC: 674255923553

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-PC13L-5012
