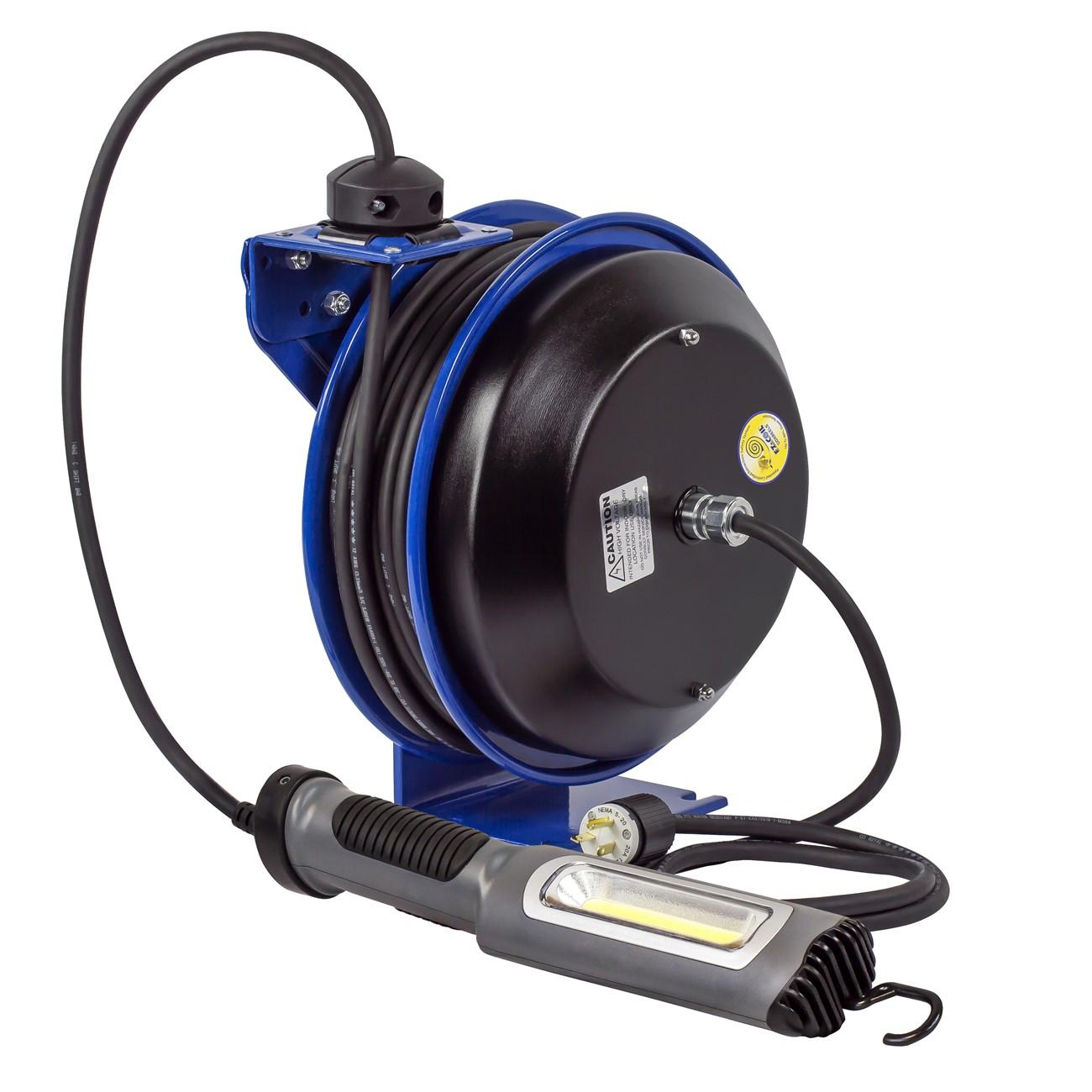

Coxreels EZ-PC13-5016-M Power Cord Reel 50 Ft Steel

Product Description

The COXREELS EZ-PC13-5016-M is a spring-driven power cord reel built for industrial and trade environments where a tangled extension cord is a liability. Part of the EZ-PC Series, it carries 50 feet of cord on CNC robotically spun, ribbed steel discs and retracts using Coxreels patented EZ-Coil drive system, which slows retraction speed up to 80 percent compared to conventional spring reels. At 37 pounds, this is a heavy-duty unit intended for permanent or semi-permanent mounting in shops, service bays, and on work vehicles. Licensed electricians and industrial maintenance technicians are the typical installers.

The EZ-PC13-5016-M is suited for commercial and industrial applications that require a reliable, self-retracting power source at a fixed workstation or mobile service unit. Typical install scenarios include vehicle-mounted service rigs, shop floor power drops, and overhead ceiling mounts in maintenance facilities. The multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, making this reel adaptable across a wide range of trade and industrial settings.

Key Features

• EZ-Coil spring-driven retraction slows retract speed up to 80 percent slower than conventional reels for improved operator safety
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and cord protection
• External component cover in powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is removable for safe, convenient servicing
• Multi-position guide arm adjusts for wall, floor, ceiling, or vehicle installation
• Includes 5-foot lead cable, grounding plug, adjustable solid rubber cord stop, and integrated compact LED light

Compatibility

Designed as an OEM-style replacement or direct-install power cord reel for industrial and commercial applications requiring a spring-retract cord management solution. Modeled after the Coxreels P and SH Series, making it a functional equivalent in similar mounting configurations.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with NEC requirements for cord and plug-connected equipment. Disconnect all power at the source before mounting or servicing the reel or its slip ring assembly. The multi-position guide arm should be secured to a structurally sound mounting surface rated for the combined weight of the reel and cord. Do not exceed the cord reel rated capacity or attempt field repairs to the slip ring contacts without following the manufacturer service procedure.

Technical Specifications

• Cord Length: 50 feet
• Drive Type: EZ-Coil spring driven
• Disc Construction: CNC robotically spun ribbed steel
• Base Material: Steel, single pedestal, one-piece no-weld construction
• Finish: Powder coat, chip-resistant and rust-inhibiting
• Length: 13 inches
• Width: 17 inches
• Height: 15.25 inches
• Weight: 37 pounds
• UPC: 674255926103

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-PC13-5016-M
