Coxreels EZ-PC13-5016-K Power Cord Reel 50 Ft Steel

Product Description

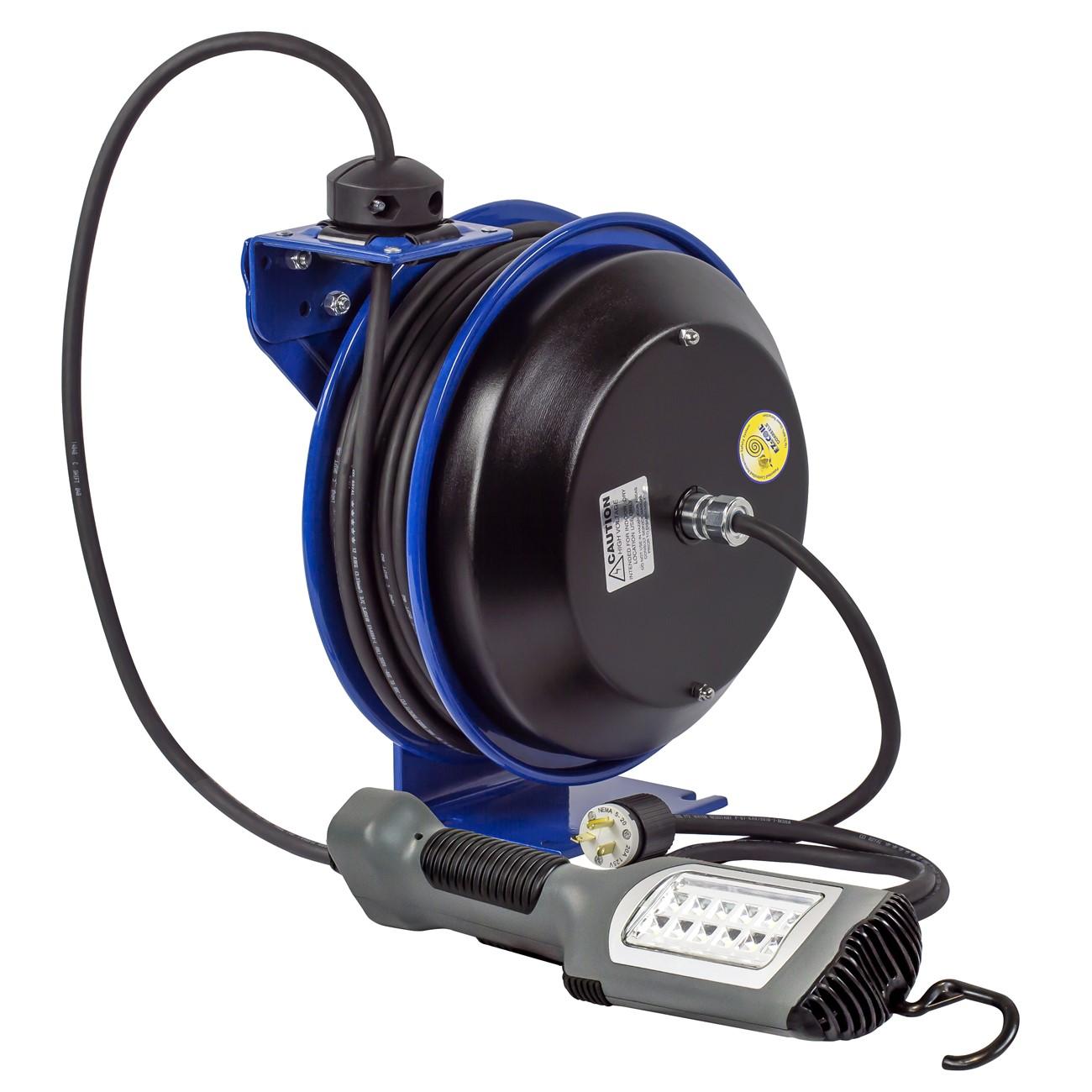

The COXREELS EZ-PC13-5016-K is a spring-driven power cord reel built for heavy-duty industrial and commercial use. It replaces tangled extension cords with a self-retracting design that improves jobsite safety and workflow efficiency. The reel features Coxreels patented EZ-Coil retraction system, which slows the retract speed up to 80 percent compared to conventional reels, reducing snap-back hazards. The housing is constructed from heavy-gauge steel with a chip-resistant, rust-inhibiting powder coat finish. At 37 pounds, it is a solid, permanently mounted unit suited for electricians and maintenance technicians working in demanding environments.

This cord reel is designed for industrial and commercial facilities where a reliable, fixed power source is needed at a workstation, bay, or vehicle mount. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations. The unit ships with a 5-foot lead cable and grounding plug, making it ready for direct installation in permanent or semi-permanent service points. A Super-Bright LED light with tool tap on the handle adds functional utility in low-light work areas.

Key Features

• EZ-Coil patented retraction system slows rewind up to 80 percent slower than conventional spring reels for improved operator safety
• Lubricated, enclosed cartridge-style motor is fully removable for maintenance without removing the reel from its mount
• External component cover in heavy-gauge powder coated steel allows fast access to slip ring for routine service
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and cord protection
• Solid one-piece steel base with single pedestal support post, no-weld construction for maximum stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting
• Includes 5-foot lead cable, grounding plug, adjustable solid rubber cord stop, and Super-Bright LED light with tool tap

Compatibility

Designed as an OEM-style replacement or direct-install power cord reel in the Coxreels EZ-PC Series, modeled after the P and SH Series platform for interchangeable mounting and service compatibility.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with NEC requirements for cord and plug-connected equipment. Power down and lock out the circuit before connecting the lead cable to the supply. Verify the mounting surface can support the reel weight plus the load of the extended cord. Ensure the grounding plug is properly connected before energizing the circuit.

Technical Specifications

• Cord Capacity: 50 ft
• Drive Type: EZ-Coil Spring Driven
• Body Material: Steel
• Finish: Powder Coat
• Length: 13 inches
• Width: 17 inches
• Height: 15.25 inches
• Weight: 37 pounds
• UPC: 674255926080

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-PC13-5016-K
