Coxreels EZ-PC13-5016-H Ez-coil Power Cord Reel 50 Ft

Product Description

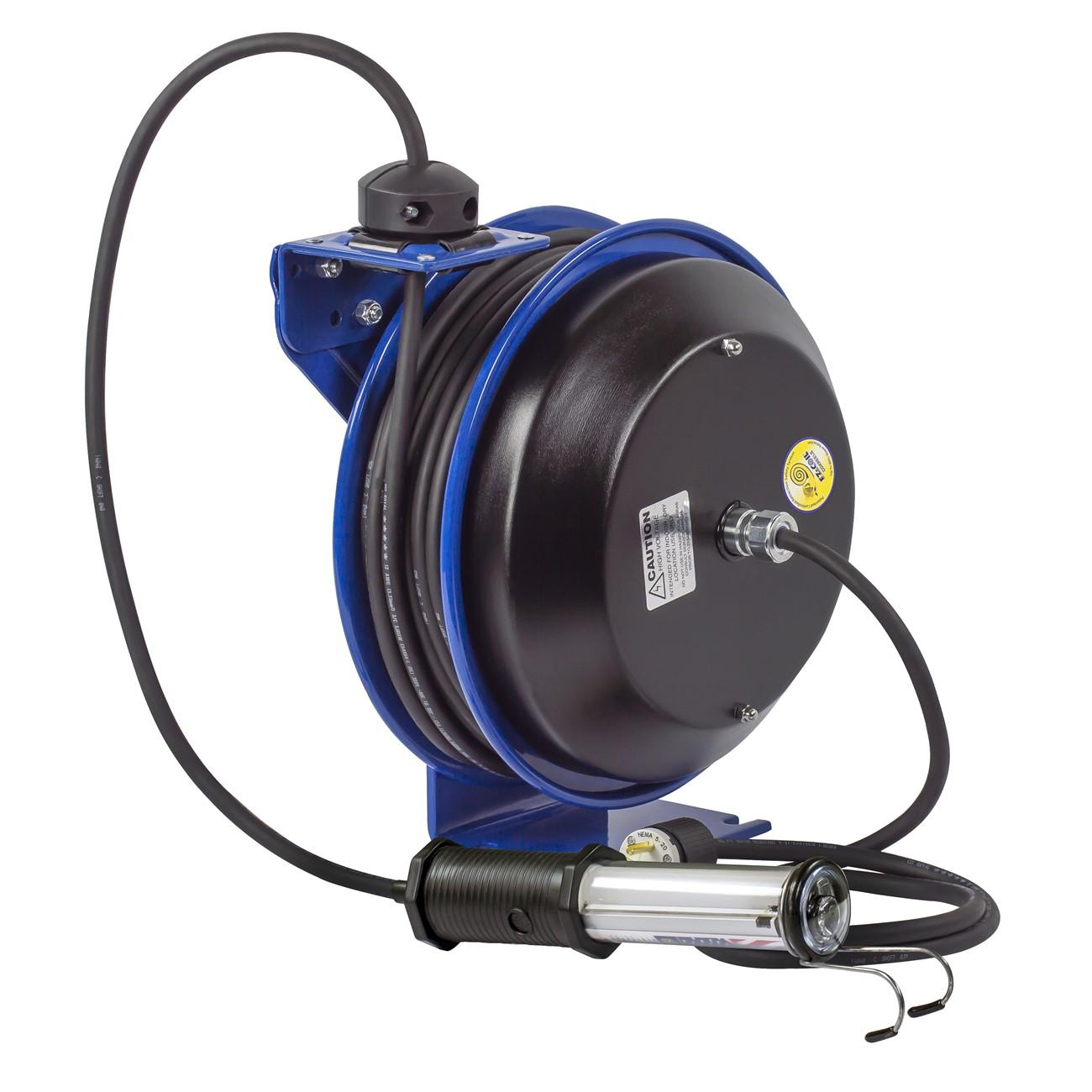

The COXREELS EZ-PC13-5016-H is a spring-driven power cord reel built for heavy-duty industrial and trade applications. It self-retracts using Coxreels patented EZ-Coil drive system, which slows retraction speed by up to 80 percent compared to conventional reels, reducing snap-back hazards. The reel holds 50 feet of cord and replaces tangled extension cord setups on job sites, service vehicles, and shop floors. CNC robotically spun and ribbed steel discs with rolled edges provide structural strength and protect the cord during repeated use. An integrated Industrial Duty LED light adds visibility during low-light service work. Licensed electricians and industrial maintenance technicians are the primary installers.

This reel is suited for commercial and industrial environments where a reliable, self-retracting power source is needed at a fixed or vehicle-mounted station. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across shop, fleet, and facility installations. The enclosed, lubricated cartridge-style spring motor is removable without taking the reel off its mount, which supports routine preventive maintenance schedules in high-use settings. A 5-foot lead cable and grounding plug are included for direct connection to a power source.

Key Features

• EZ-Coil spring drive retracts up to 80 percent slower than conventional reels, reducing cord snap-back risk
• External component cover in heavy-gauge powder-coated steel allows slip ring maintenance without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for cord protection and operator safety
• Solid one-piece steel base and support post with no-weld single pedestal design for maximum stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• Includes 5-foot lead cable, grounding plug, adjustable solid rubber cord stop, and Industrial Duty LED light

Compatibility

Designed as an OEM-style replacement or direct upgrade for industrial spring-driven power cord reel applications. Modeled after the Coxreels P and SH Series reel platforms for long-lasting, trouble-free performance in demanding conditions.

Installation Notes

Installation is typically performed by a licensed electrician following applicable NEC requirements for cord reel and temporary power applications. Disconnect and lock out all power sources before mounting or servicing the reel. The multi-position guide arm should be secured to a structural surface rated for the combined weight of the reel and cord load. Do not exceed the cord rating of the reel when connecting to a power source.

Technical Specifications

• Cord Length: 50 feet
• Drive Type: EZ-Coil spring driven
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Base Material: Steel, one-piece no-weld construction
• Finish: Chip-resistant, rust-inhibiting powder coat
• Length: 13 inches
• Width: 17 inches
• Height: 15.25 inches
• Weight: 37 pounds
• UPC: 674255925946

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-PC13-5016-H
