Coxreels EZ-PC13-5016-E Power Cord Reel 50 Ft Steel

Product Description

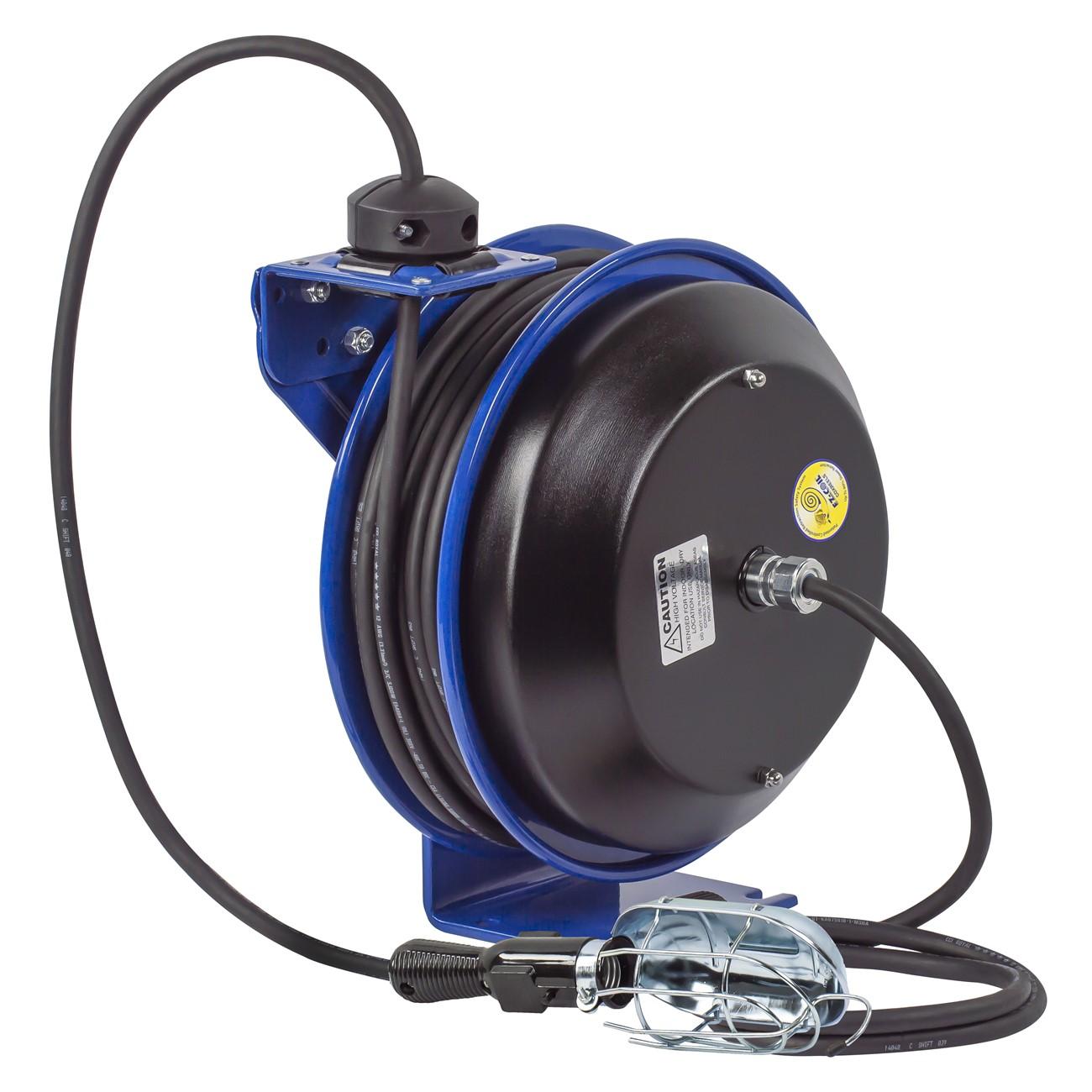

The COXREELS EZ-PC13-5016-E is a spring-driven power cord reel built for heavy-duty industrial use. Part of the PC Series, it replaces tangled extension cords with a self-retracting design that improves jobsite safety and workflow efficiency. The reel features an EZ-Coil drive system that retracts up to 80 percent slower than conventional reels, reducing snap-back hazards. CNC robotically spun and ribbed steel discs with rolled edges provide structural strength and protect the cord during daily use. At 36 pounds, this is a substantial, permanently mounted unit suited to fixed workstations and service bays.

This cord reel is designed for industrial and commercial environments where a reliable, self-retracting power source is needed at a fixed location. Typical installations include automotive service bays, manufacturing floors, warehouses, and fleet maintenance facilities. The multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations. The unit ships with a 5-foot lead cable and grounding plug, an adjustable solid rubber cord stop, and an incandescent caged drop light with a tool tap plug, making it functional immediately after installation.

Key Features

• EZ-Coil spring-driven retraction system retracts up to 80 percent slower than standard reels for improved operator safety
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and cord protection
• External component cover in heavy-gauge powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Solid one-piece steel base with single pedestal support post, no-weld construction, for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• Includes 5-foot lead cable with grounding plug, adjustable rubber cord stop, and caged drop light with tool tap plug
• Chip-resistant, rust-inhibiting powder coat finish with permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement and direct-fit unit within the COXREELS PC Series product line, modeled after the P and SH Series reel platforms for dimensional and mounting consistency.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements for fixed cord and wiring devices. Power down the circuit before making any electrical connections to the lead cable or grounding plug. Verify the mounting surface can support the weight of the reel plus the loaded cord before securing the base. Do not use the cord reel in a coiled or partially retracted state if the application requires the full rated load capacity of the cord.

Technical Specifications

• Cord Length: 50 ft
• Drive Type: EZ-Coil Spring Driven
• Disc Material: Steel
• Length: 13 inches
• Width: 17 inches
• Height: 15.25 inches
• Weight: 36 pounds
• UPC: 674255921559

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-PC13-5016-E
