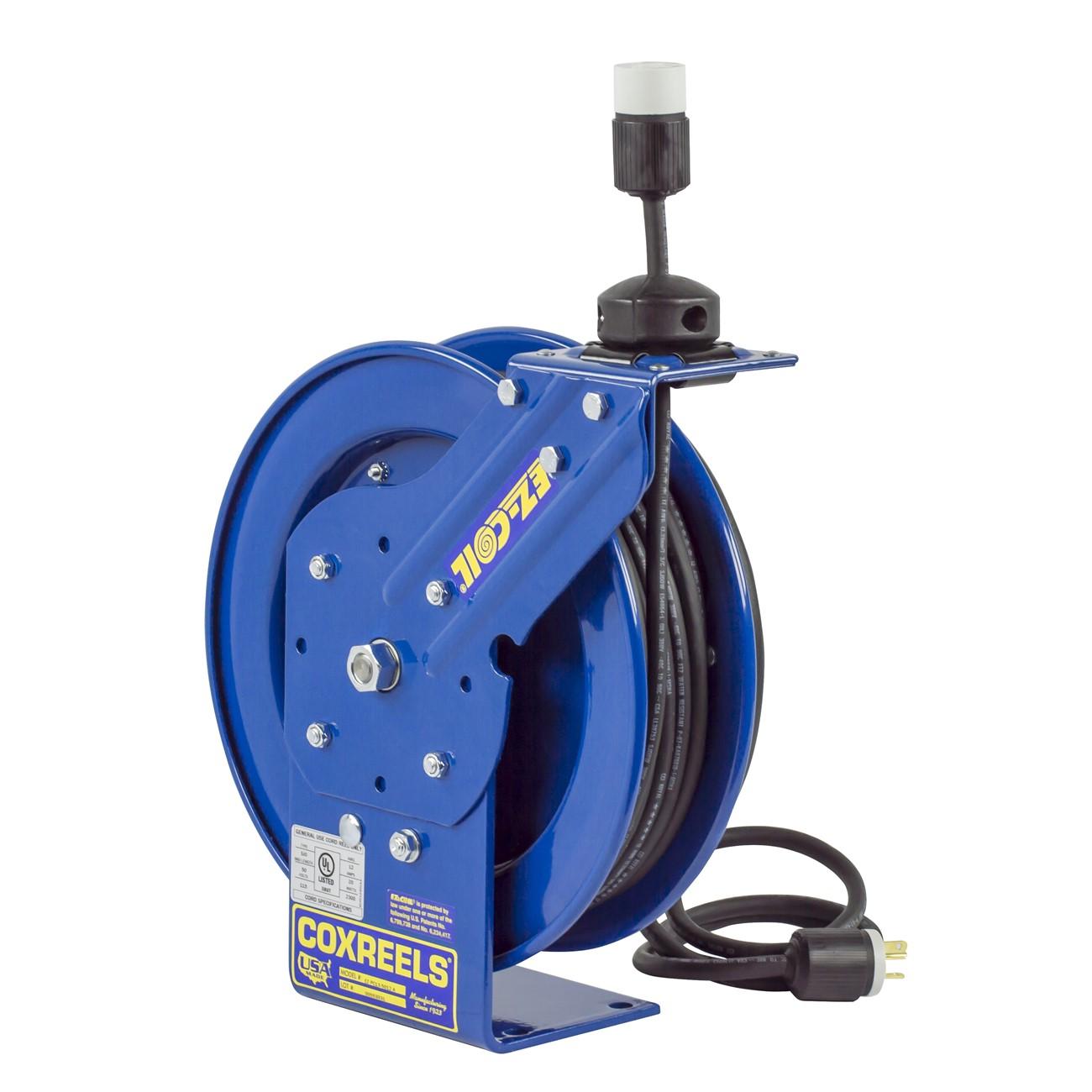

Coxreels EZ-PC13-5016-A Power Cord Reel 50 Ft Steel

Product Description

The COXREELS EZ-PC13-5016-A is a spring-driven, self-retracting power cord reel built for heavy-duty industrial and commercial use. It replaces tangled extension cords with a retractable design that improves jobsite safety and workflow efficiency. The reel features Coxreels patented EZ-Coil drive system, which slows retraction speed by up to 80 percent compared to conventional reels, reducing snap-back hazards. The drum and discs are CNC robotically spun and ribbed with rolled edges, providing structural rigidity and cord protection under sustained daily use. A powder-coated steel enclosure protects internal components while remaining accessible for slip ring maintenance without removing the reel from its mount. Electricians and maintenance technicians install this reel in facilities, service vehicles, and industrial settings where a durable, self-retracting power source is required.

This cord reel is suited for industrial facilities, manufacturing floors, service bays, and commercial maintenance environments. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable across a wide range of installation scenarios. The unit ships as a single reel with a 5-foot lead cable, grounding plug, adjustable solid rubber cord stop, and a single industrial receptacle. It is modeled after the Coxreels P and SH Series platform and is designed for long-lasting, trouble-free operation under demanding conditions.

Key Features

• EZ-Coil patented drive system retracts up to 80 percent slower than conventional spring reels, reducing snap-back risk
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and cord protection
• External component cover in heavy-gauge powder-coated steel allows slip ring maintenance without dismounting the reel
• 1/4-inch solid one-piece steel base with single pedestal and support post, no weld construction
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting orientations
• Includes 5-foot lead cable, grounding plug, adjustable rubber cord stop, and single industrial receptacle
• Chip-resistant, rust-inhibiting powder coat finish with permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement and direct-fit option for industrial spring-driven power cord reel applications. Modeled after the Coxreels P and SH Series platform for cross-series familiarity in multi-reel installations.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with applicable NEC requirements for cord and plug-connected equipment. Before servicing or mounting, disconnect all power sources at the circuit breaker and verify the circuit is de-energized. The multi-position guide arm should be secured to a structurally sound surface rated for the combined weight of the reel and cord. Do not exceed the rated cord capacity or modify the retraction spring assembly in the field.

Technical Specifications

• Cord Length: 50 feet
• Drive Type: EZ-Coil spring drive
• Disc Construction: CNC spun ribbed steel with rolled edges
• Base Material: Steel, 1/4-inch solid one-piece
• Finish: Powder-coated steel
• Length: 13 inches
• Width: 17 inches
• Height: 15.25 inches
• Weight: 34 pounds
• UPC: 674255921542

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-PC13-5016-A
