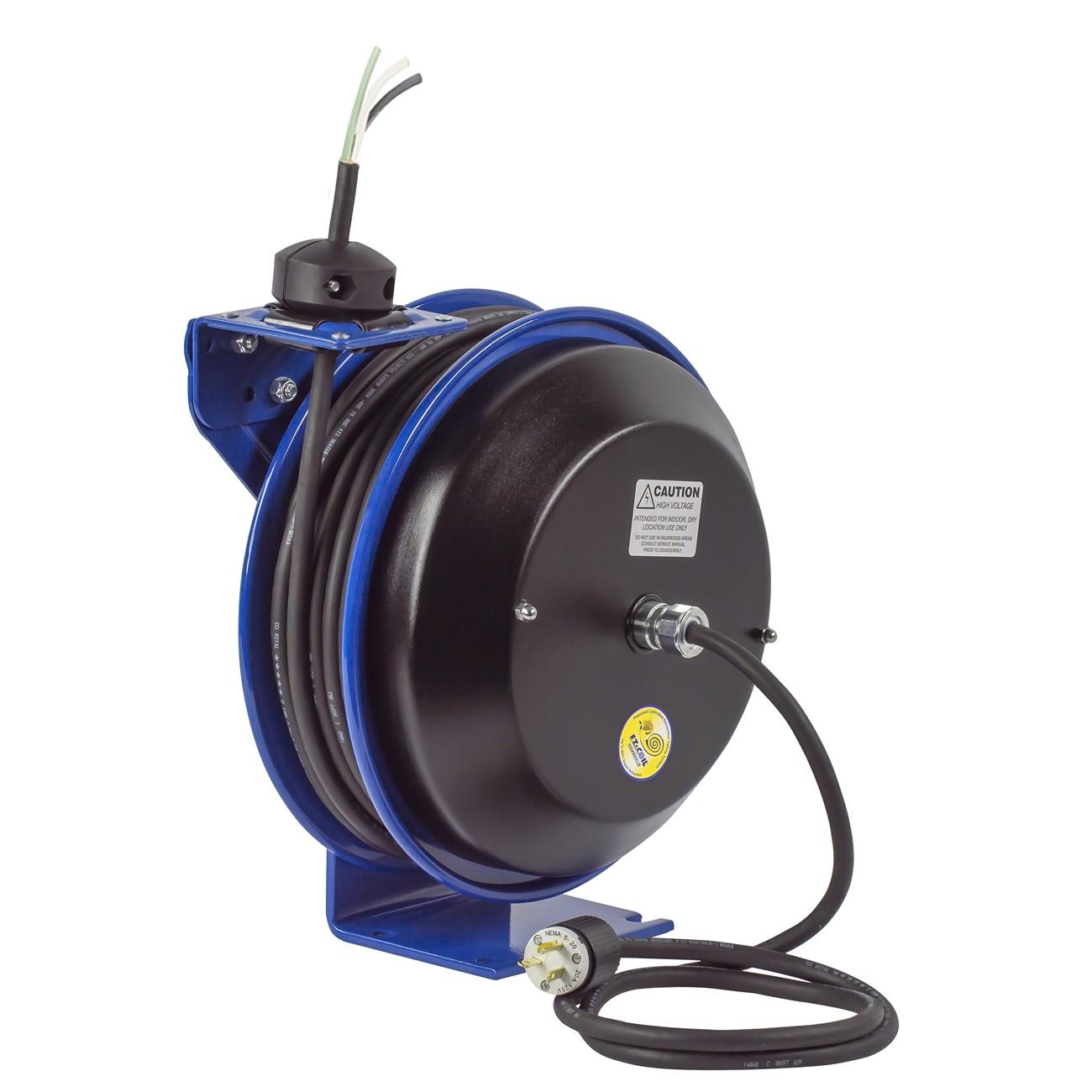

Coxreels EZ-PC13-5012-X Ez-coil Power Cord Reel 50 Ft

Product Description

The COXREELS EZ-PC13-5012-X is a spring-driven power cord reel built for heavy-duty industrial and commercial applications. Part of the PC Series, it uses Coxreels patented EZ-Coil retraction system, which slows retract speed by up to 80 percent compared to conventional reels, reducing snap-back hazards and cord wear. The reel is constructed with CNC robotically spun and ribbed steel discs with rolled edges for structural durability. It accommodates 50 feet of cord and is designed to replace tangled extension cord setups with a self-retracting, permanently mounted solution. Licensed electricians and industrial maintenance technicians are the primary installers.

The EZ-PC13-5012-X is suited for industrial facilities, workshops, service bays, and commercial job sites where a reliable, retractable power source is required. Its multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable across a wide range of permanent or mobile installations. The spring-driven EZ-Coil mechanism allows hands-free cord retrieval, improving workflow efficiency and reducing trip hazards in high-traffic work areas.

Key Features

• EZ-Coil spring-driven retraction system retracts up to 80 percent slower than conventional reels for improved operator safety
• CNC robotically spun and ribbed steel discs with rolled edges for strength and cord protection
• External component cover in heavy-gauge powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Solid one-piece steel base with single pedestal support post, no-weld construction for maximum stability
• Multi-position guide arm compatible with wall, floor, ceiling, and vehicle mounting orientations
• Includes 5-foot lead cable, grounding plug, adjustable solid rubber cord stop, and permanently lubricated precision bearings
• Chip-resistant, rust-inhibiting powder coat finish for long-term durability in demanding environments

Compatibility

Designed as an OEM-style replacement or direct upgrade for industrial spring-driven power cord reel applications; modeled after the Coxreels P and SH Series mounting footprint and configuration.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Disconnect and lock out all power sources before mounting or servicing the reel. The multi-position guide arm should be secured firmly to the mounting surface rated for the combined weight of the reel and cord load. Do not exceed the cord capacity or electrical ratings marked on the reel.

Technical Specifications

• Cord Length: 50 feet
• Drive Type: Spring-driven EZ-Coil
• Disc Material: Steel
• Base Material: Steel
• Finish: Powder coat
• Length: 13 inches
• Width: 17 inches
• Height: 15.25 inches
• Weight: 40 pounds
• UPC: 674255922990

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-PC13-5012-X
