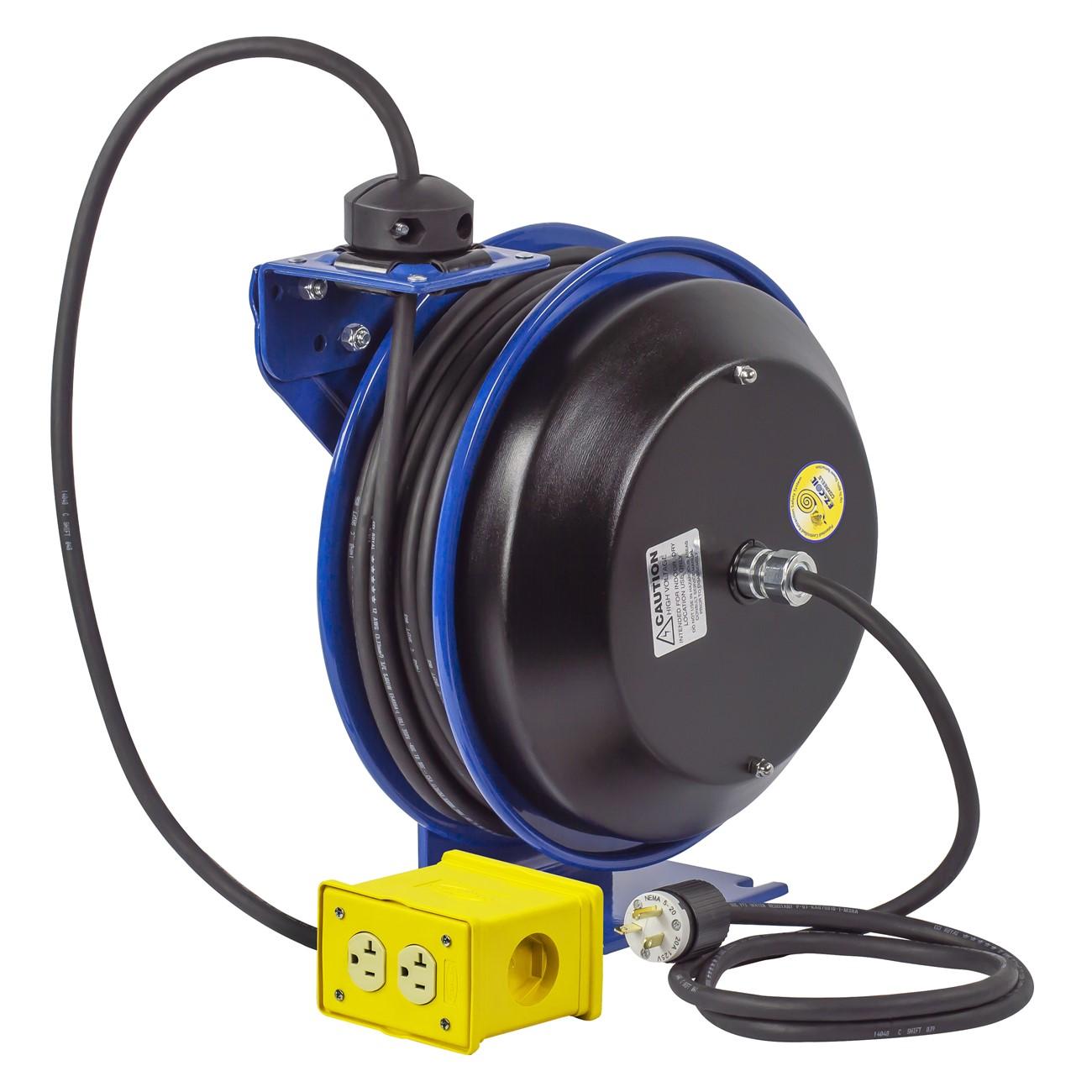

Coxreels EZ-PC13-5012-B Power Cord Reel 50 Ft Steel

Product Description

The COXREELS EZ-PC13-5012-B is a spring-driven power cord reel built for heavy-duty industrial and commercial use. It replaces tangled extension cords with a self-retracting design that improves jobsite safety and workflow efficiency. The reel features Coxreels patented EZ-Coil drive system, which retracts the cord up to 80 percent slower than conventional reels to reduce snap-back hazards. The steel construction includes CNC robotically spun and ribbed discs with rolled edges, and a solid one-piece steel base with a single pedestal support post requiring no welding. A quad four-plug industrial receptacle and a 5-foot lead cable with grounding plug are included. Licensed electricians and industrial maintenance technicians are the primary installers of this type of reel.

The EZ-PC13-5012-B is suited for industrial facilities, workshops, service bays, and commercial job sites where a reliable, retractable 50-foot power cord source is needed. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable to a wide range of fixed or mobile installations. The external component cover allows access to the slip ring for routine maintenance without removing the reel from its mount, which reduces downtime in production environments.

Key Features

• EZ-Coil patented drive system retracts cord up to 80 percent slower than standard spring reels for reduced snap-back risk
• Lubricated, enclosed cartridge-style motor is removable for maintenance without full disassembly
• External heavy-gauge powder-coated steel component cover allows slip ring service without dismounting the reel
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and cord protection
• Solid one-piece steel base with single pedestal support post, no-weld construction, for maximum stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• Includes quad four-plug industrial receptacle, adjustable solid rubber cord stop, and 5-foot lead cable with grounding plug

Compatibility

Designed as an OEM-style replacement and upgrade option for industrial spring-driven power cord reel applications. Modeled after the Coxreels P and SH Series reel platform for cross-compatible mounting and form factor.

Installation Notes

Installation of power cord reels of this type is typically performed by a licensed electrician in accordance with applicable NEC requirements. Disconnect and lock out all power sources before servicing the slip ring, motor cartridge, or any electrical components. Confirm the mounting surface and fasteners are rated for the reel weight of 41 pounds plus the dynamic load of cord retraction. The multi-position guide arm should be secured in the correct orientation before energizing the reel.

Technical Specifications

• Cord Length: 50 ft
• Drive Type: EZ-Coil Spring Driven
• Material: Steel
• Length: 13 inches
• Width: 17 inches
• Height: 15.25 inches
• Weight: 41 pounds
• UPC: 674255921375

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-PC13-5012-B
