Coxreels EZ-PC13-5012-A Power Cord Reel 50 Ft Steel

Product Description

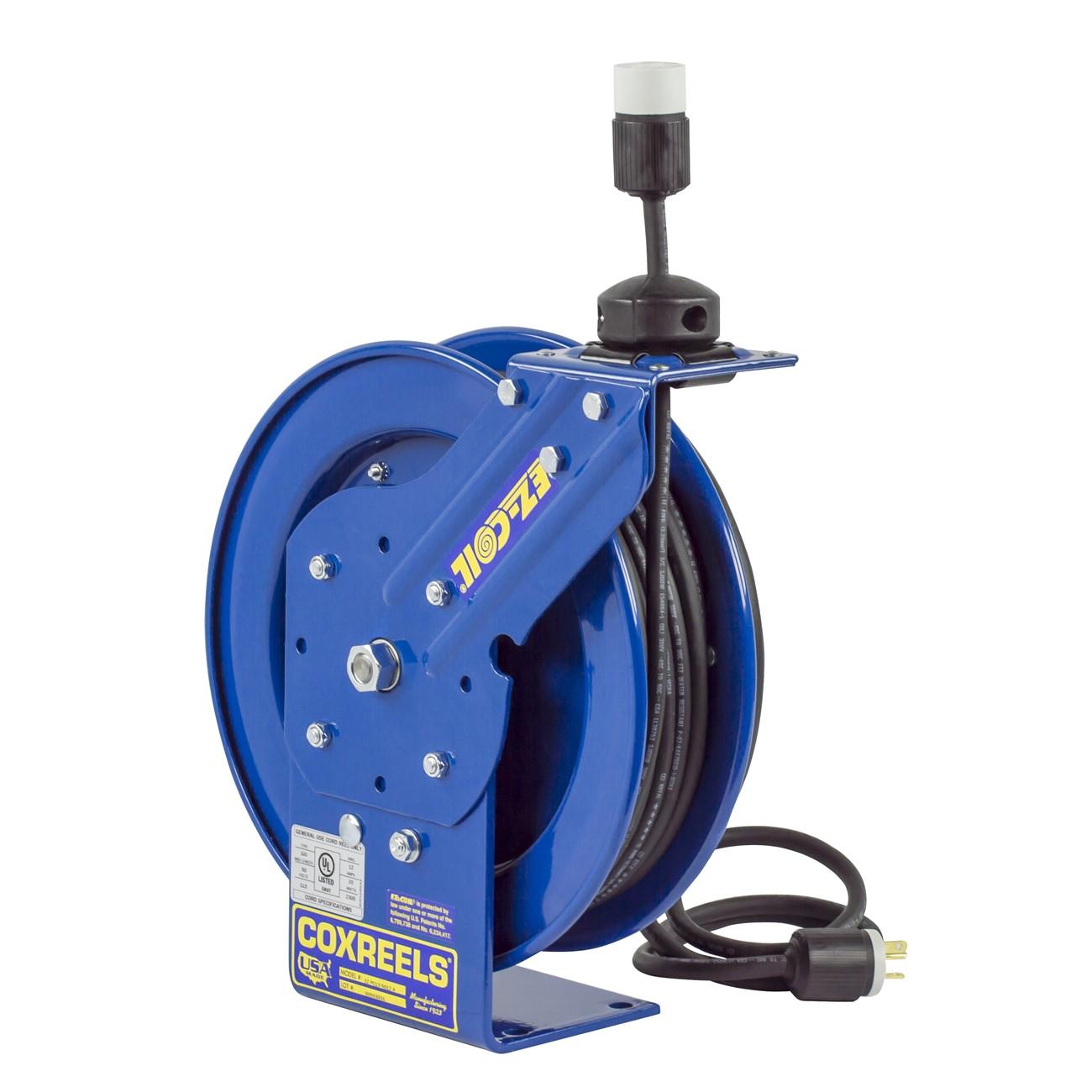

The COXREELS EZ-PC13-5012-A is a spring-driven power cord reel built for industrial and commercial service environments where tangled extension cords create safety hazards and lost productivity. Part of the PC Series, this reel uses Coxreels EZ-Coil technology to retract up to 80 percent slower than conventional spring reels, reducing snap-back hazards during cord retrieval. The reel is constructed with heavy-gauge powder-coated steel throughout and ships ready for wall, floor, ceiling, or vehicle mounting. At 40 pounds, it is a substantial, fixed-mount unit intended for permanent or semi-permanent installation by electricians and maintenance technicians in demanding shop, fleet, or industrial settings.

This cord reel is suited for industrial facilities, service bays, maintenance shops, and fleet operations where a reliable 50-foot powered cord drop is needed at a fixed station. The self-retracting design eliminates cord management labor between uses and keeps the work area clear. The single industrial receptacle and included 5-foot lead cable with grounding plug make it compatible with standard industrial outlet configurations. The adjustable multi-position guide arm allows the unit to be oriented for nearly any mounting surface without additional hardware modifications.

Key Features

• EZ-Coil spring-driven retraction retracts up to 80 percent slower than conventional reels, reducing snap-back risk
• Enclosed, lubricated cartridge-style spring motor is removable for maintenance without dismounting the reel
• External component cover in heavy-gauge powder-coated steel allows slip ring access without removing the reel from its mount
• CNC robotically spun and ribbed steel discs with rolled edges for strength, cord protection, and operator safety
• Solid one-piece steel base and support post, no-weld construction, for maximum pedestal stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting; includes adjustable solid rubber cord stop

Compatibility

Designed as an OEM-style industrial power cord reel for permanent or semi-permanent mounting in shop, fleet, and facility applications requiring a 50-foot self-retracting cord supply.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements for cord and plug connections and fixed electrical equipment. Power down and lock out the supply circuit before making any electrical connections to the reel. Confirm the mounting surface can support the static and dynamic load of a 40-pound reel under retraction forces. Do not exceed the cord and receptacle ratings for the connected load.

Technical Specifications

• Cord Length: 50 feet
• Drive Type: EZ-Coil Spring Driven
• Body Material: Steel
• Finish: Powder Coat
• Lead Cable: 5 feet with grounding plug
• Receptacle: Single industrial receptacle
• Length: 13 inches
• Width: 17 inches
• Height: 15.25 inches
• Weight: 40 pounds
• UPC: 674255921368

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-PC13-5012-A
