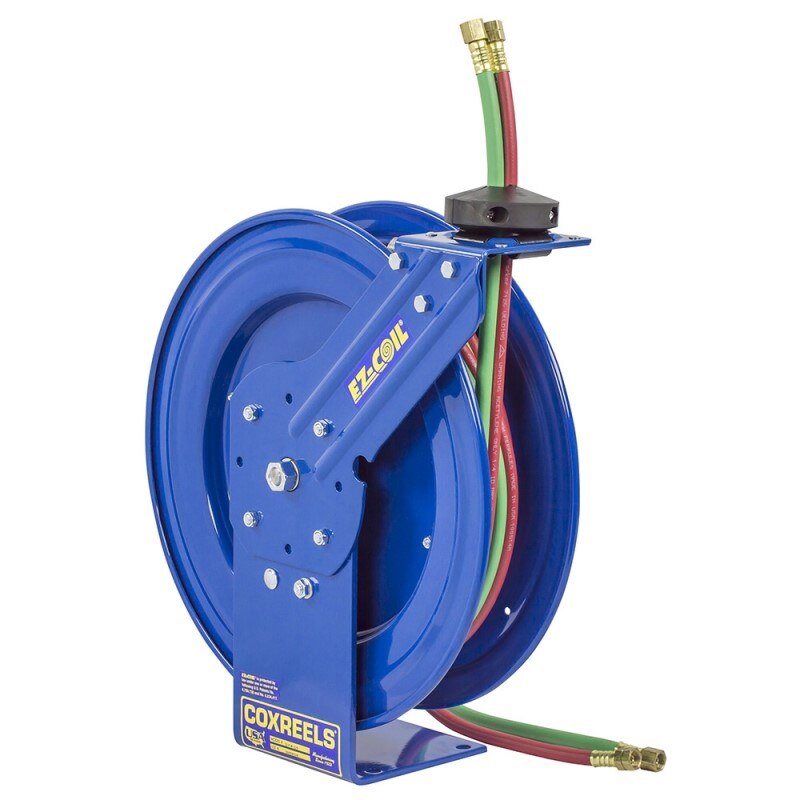

Coxreels EZ-P-WTL-125 Welding Hose Reel 1/4 in 25 Ft

Product Description

The COXREELS EZ-P-WTL-125 is a spring-driven welding hose reel designed to manage twin-line welding hose in demanding shop and field environments. Built on the compact P-W Series chassis, it accepts 1/4 inch ID hose up to 25 feet in length and features Coxreels EZ-Coil retraction technology, which slows retraction speed by up to 80 percent compared to conventional spring reels. The reel ships fully assembled with a CPC powder coat finish for chip and corrosion resistance. Licensed HVAC technicians, welders, and industrial service pros install this unit in fixed or vehicle-mounted positions.

This reel is suited for welding gas delivery applications in light industrial, fabrication shop, and mobile service environments. The single-pedestal steel base and multi-position guide arm allow mounting to walls, floors, ceilings, and vehicle surfaces. The external dual-ported brass swivel routes both hose connections from the same side of the reel, eliminating the need to dismount the unit for hose attachment or adjustment.

Key Features

• EZ-Coil enclosed cartridge-style motor retracts up to 80 percent slower than standard spring reels for operator safety
• External 90-degree full-flow dual-ported brass swivel with Viton seals routes both connections from one side
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and structural durability
• Solid one-piece steel base with single pedestal design and no-weld support post for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish resists chipping, rust, and corrosion for long service life

Compatibility

Designed for use with 1/4 inch ID twin-line welding hose up to 25 feet, consistent with P-W Series spring-driven welding hose reel applications.

Installation Notes

Installation should be performed by a qualified technician familiar with welding gas supply systems. Shut off all gas supply valves and verify zero pressure in the hose before mounting or connecting the reel. Secure the base to a structurally sound surface using hardware rated for the combined weight of the reel and hose. Verify all swivel connections are leak-free with an approved leak-detection method before returning the system to service.

Technical Specifications

• Hose ID: 1/4 inch
• Hose Length: 25 feet
• Reel Type: Spring Driven EZ-Coil
• Swivel Material: Brass with Viton Seals
• Disc Construction: CNC Robotically Spun Ribbed Steel
• Base Material: Steel
• Finish: CPC Powder Coat
• Length: 18 inches
• Width: 9.5 inches
• Height: 19.75 inches
• Weight: 39 pounds
• UPC: 674255725126

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-P-WTL-125
