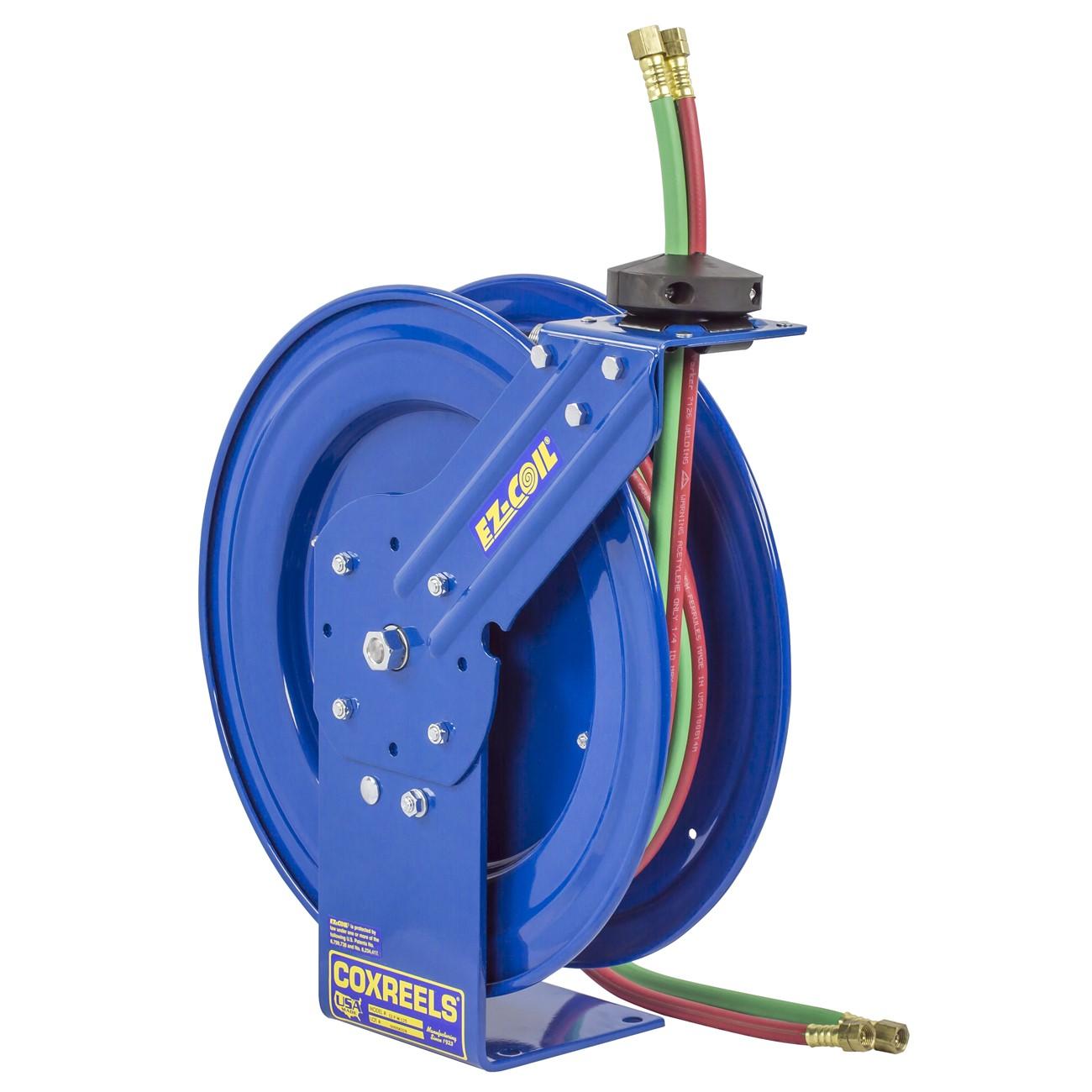

Coxreels EZ-P-WT-125 Welding Hose Reel 1/4 in 25 Ft

Product Description

The COXREELS EZ-P-WT-125 is a spring-driven welding hose reel designed to manage twin-line welding hose in demanding shop and field environments. Part of the EZ-Coil P-W Series, it features a compact chassis and a patented EZ-Coil retraction system that retracts hose up to 80% slower than conventional spring-driven reels, reducing snap-back hazards during daily use. The reel accepts 1/4 inch ID welding hose up to 25 feet in length. An external 90-degree full-flow dual-ported brass swivel with Viton seals delivers both supply and return connections from the same side of the reel, eliminating the need to dismount the unit for hose changes or gas line connections. Licensed welding technicians and industrial gas service professionals are the primary installers.

This reel suits residential fabrication shops, commercial welding bays, and mobile service vehicles where twin-line welding hose management is required. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across fixed and mobile work setups. The single-pedestal steel base provides a stable footprint in tight quarters. The reel is supplied with T-grade welding hose and is finished with a CPC powder coat that resists chipping and rust in shop environments.

Key Features

• EZ-Coil patented retraction system slows hose retrieval up to 80% compared to conventional reels, reducing snap-back risk
• External 90-degree dual-ported brass swivel with Viton seals — both connections exit the same side of the reel
• Lubricated, enclosed cartridge-style spring motor is removable for maintenance without full reel disassembly
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges protect hose and operator
• Solid one-piece steel base and support post — no-weld single pedestal construction for maximum stability
• Multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement and direct-fit unit within the COXREELS P-W Series spring-driven welding hose reel family, suitable for twin-line welding hose applications requiring 1/4 inch ID and up to 25-foot hose capacity.

Installation Notes

Installation is typically performed by a licensed welding gas technician or qualified industrial equipment installer familiar with compressed gas line connections. Shut off all gas supply valves and relieve pressure from the hose assembly before mounting or servicing the reel. Verify that mounting surface load ratings are appropriate for the reel weight before securing the base. Follow all applicable compressed gas handling codes and equipment manufacturer guidelines during connection of the dual-port swivel to the supply and return lines.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Length Capacity: 25 feet
• Retraction Type: Spring-driven EZ-Coil
• Swivel Type: External 90-degree dual-ported brass with Viton seals
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Base Construction: One-piece solid steel, no-weld single pedestal
• Finish: CPC powder coat
• Weight: 46 pounds
• Length: 18 inches
• Width: 9.5 inches
• Height: 19.75 inches
• UPC: 674255725096

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-P-WT-125
