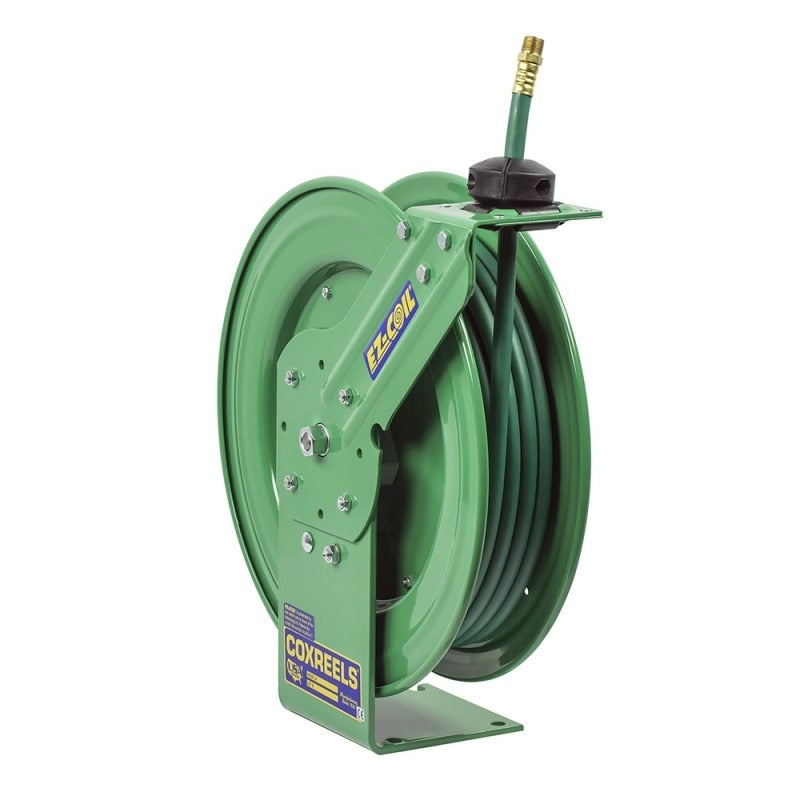

Coxreels EZ-P-NPL-350 Nitrogen Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS EZ-P-NPL-350 is a spring-driven nitrogen hose reel from the Nitro-Pro Series, engineered and approved specifically for nitrogen tire inflation systems. It features the EZ-Coil patented rewind safety system, which retracts the hose up to 80% slower than conventional spring-driven reels, reducing the risk of workplace injuries during retraction. The reel accepts 3/8-inch ID hose up to 50 feet in length. Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges provide lasting durability and hose protection. Licensed HVAC and automotive service technicians install this unit in professional shop environments where nitrogen inflation is standard practice.

The EZ-P-NPL-350 is designed for professional automotive service bays, tire shops, and fleet maintenance facilities that operate dedicated nitrogen tire inflation systems. Its compact footprint and multi-position guide arm allow installation on walls, floors, ceilings, or vehicles, making it adaptable to a wide range of shop layouts. The reel ships as a single unit and is suited for fixed-station or mobile service setups where nitrogen hose management and operator safety are priorities.

Key Features

• EZ-Coil patented rewind safety system retracts up to 80% slower than conventional spring-driven reels
• Nitrogen-rated brass 90-degree full-flow NPT swivel machined solid for reliable sealing and easy hose installation without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• 1/4-inch solid one-piece steel base and support post with single pedestal design for maximum stability
• Multi-position aluminum guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• Nitrogen green proprietary powder coat finish — chip resistant and rust inhibiting
• Permanently lubricated precision bearings and enclosed cartridge-style motor for low-maintenance operation

Compatibility

Designed as an OEM-style replacement or direct-fit reel for professional nitrogen tire inflation systems requiring a 3/8-inch ID hose reel with spring-driven retraction.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed gas hose reel systems. Shut off the nitrogen supply and depressurize the hose before mounting or servicing the reel. Secure the mounting surface to support the reel weight of 36 pounds plus hose load. Follow applicable shop safety codes and the manufacturer installation guide for swivel connection torque and guide arm positioning.

Technical Specifications

• Hose ID: 3/8 inch
• Hose Length Capacity: 50 feet
• Drive Type: Spring-driven with EZ-Coil retraction
• Swivel: 90-degree full-flow NPT brass swivel
• Base Material: 1/4-inch solid steel
• Guide Arm Material: Aluminum
• Finish: Nitrogen green CPCa powder coat
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 36 pounds
• UPC: 674255743366

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-P-NPL-350
