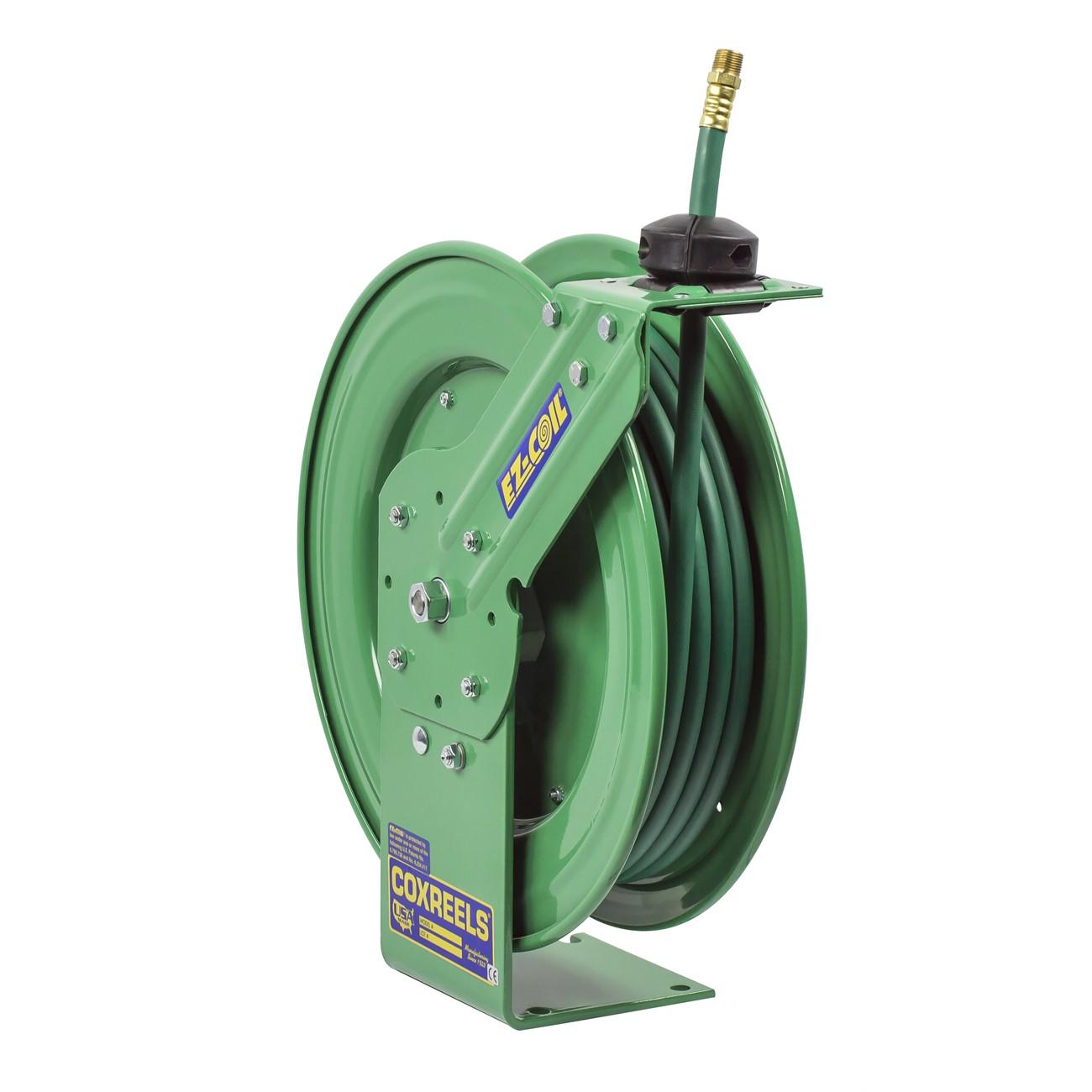

Coxreels EZ-P-NP-350 Nitrogen Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS EZ-P-NP-350 is a spring-driven nitrogen hose reel built specifically for professional nitrogen tire inflation systems. It is part of the Nitro-Pro Series, which is engineered, tested, and approved for nitrogen service — a distinction that sets it apart from general-purpose hose reels. The reel features the EZ-Coil patented rewind safety system, which retracts up to 80% slower than conventional spring-driven reels to reduce snap-back incidents in the shop. It accepts 3/8 inch ID hose up to 50 feet in length and is constructed for heavy-duty, long-term use in commercial tire service environments.

This reel is intended for automotive service shops, truck service centers, and fleet maintenance facilities that require dedicated nitrogen inflation stations. The compact footprint allows flexible placement in tight service bays. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting, making it adaptable to a wide range of shop layouts. Service technicians and shop equipment installers are the primary trades handling this unit. The nitrogen-specific construction ensures system integrity is maintained throughout the hose and swivel assembly.

Key Features

• EZ-Coil patented safety rewind system retracts up to 80% slower than conventional spring-driven reels, reducing snap-back hazard
• Machined solid brass 90-degree full-flow NPT swivel with nitrogen-quality seals — removable for maintenance without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and structural strength
• Solid one-piece steel base with single pedestal support post, no-weld construction for maximum stability
• Multi-position aluminum guide arm adjusts for wall, floor, ceiling, or vehicle mounting
• Proprietary nitrogen green powder coat finish, chip resistant and rust inhibiting, with adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed for use with nitrogen tire inflation systems requiring 3/8 inch ID hose. Engineered and approved specifically for nitrogen service applications.

Installation Notes

Installation should be performed by a qualified shop equipment technician familiar with nitrogen inflation system plumbing. Shut off the nitrogen supply and depressurize the line before connecting or disconnecting the swivel assembly. The guide arm mounting position should be confirmed before final fastening, as the arm accommodates wall, floor, ceiling, and vehicle-mount configurations. Verify all fittings are rated for nitrogen service before completing the installation.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Hose Length: 50 feet
• Swivel Type: 90-degree full-flow NPT brass swivel
• Drive Type: Spring driven with EZ-Coil rewind safety system
• Base Material: Steel, one-piece no-weld construction
• Guide Arm Material: Aluminum
• Finish: Nitrogen green CPCa powder coat
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 43 pounds
• UPC: 674255743342

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-P-NP-350
