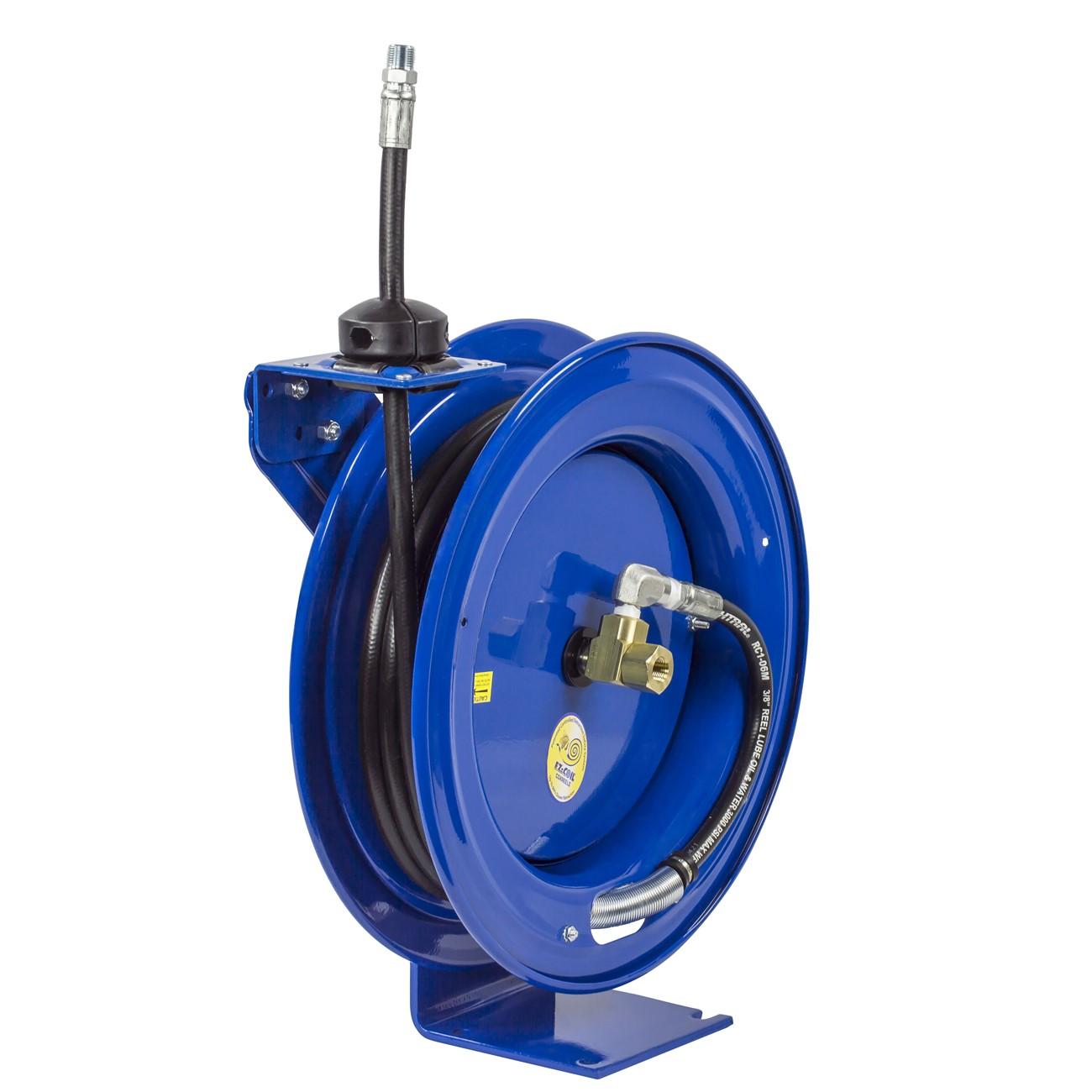

Coxreels EZ-P-MP-430 Spring Driven Hose Reel 1/2 in 30 Ft

Product Description

The COXREELS EZ-P-MP-430 is a spring-driven hose reel from the EZ-P Series, designed for trade professionals who need reliable, hands-free hose retraction in demanding service environments. The reel accepts hose with a 1/2 inch inner diameter and 13/16 inch outer diameter, with a 30-foot hose capacity. It features Coxreels patented EZ-Coil safety retraction system, which slows the retraction rate up to 80 percent compared to conventional spring-driven reels. Heavy-duty CNC robotically spun and ribbed steel discs, a solid one-piece steel base, and a CPC powder coat finish contribute to its durability in daily shop, fleet, or field use. Licensed technicians in HVAC, plumbing, automotive, and industrial service trades are the primary installers.

The EZ-P-MP-430 is suited for residential and light commercial service bays, fleet maintenance facilities, and mobile service vehicles. The multi-position guide arm adjusts to wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to a wide range of installation layouts. The machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount, reducing downtime during service calls. This reel is a practical fit wherever a retractable hose supply point is needed for air, water, oil, or compatible fluid delivery.

Key Features

• EZ-Coil patented safety system retracts up to 80 percent slower than conventional spring-driven reels
• Lubricated and enclosed cartridge-style spring motor is removable for maintenance without special tooling
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Machined solid brass 90-degree full-flow NPT swivel allows seal service without dismounting the reel
• Solid one-piece steel base with single pedestal support post, no-weld construction
• Multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting
• CPC chip-resistant, rust-inhibiting powder coat finish with permanently lubricated precision bearings

Compatibility

Designed for use with hose measuring 1/2 inch inner diameter and 13/16 inch outer diameter, with a 30-foot hose capacity. Suitable as an OEM-style spring-driven reel replacement or new installation in plumbing, HVAC, automotive, and industrial fluid-delivery applications.

Installation Notes

Installation is typically performed by a licensed plumber, HVAC technician, or qualified mechanical tradesperson. Shut off the fluid supply and depressurize the line before connecting or disconnecting hose and fittings. Secure the reel base to a structural mounting surface rated to support the combined weight of the reel and filled hose. Refer to applicable local codes and the manufacturer installation guide for mounting hardware requirements and swivel torque procedures.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 13/16 inch
• Hose Capacity: 30 feet
• Reel Length: 17.5 inches
• Reel Width: 8.5 inches
• Reel Height: 19.25 inches
• Weight: 51 pounds
• Swivel Material: Solid brass
• Base Material: Steel
• Finish: CPC powder coat
• Drive Type: Spring driven
• UPC: 674255729186

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-P-MP-430
