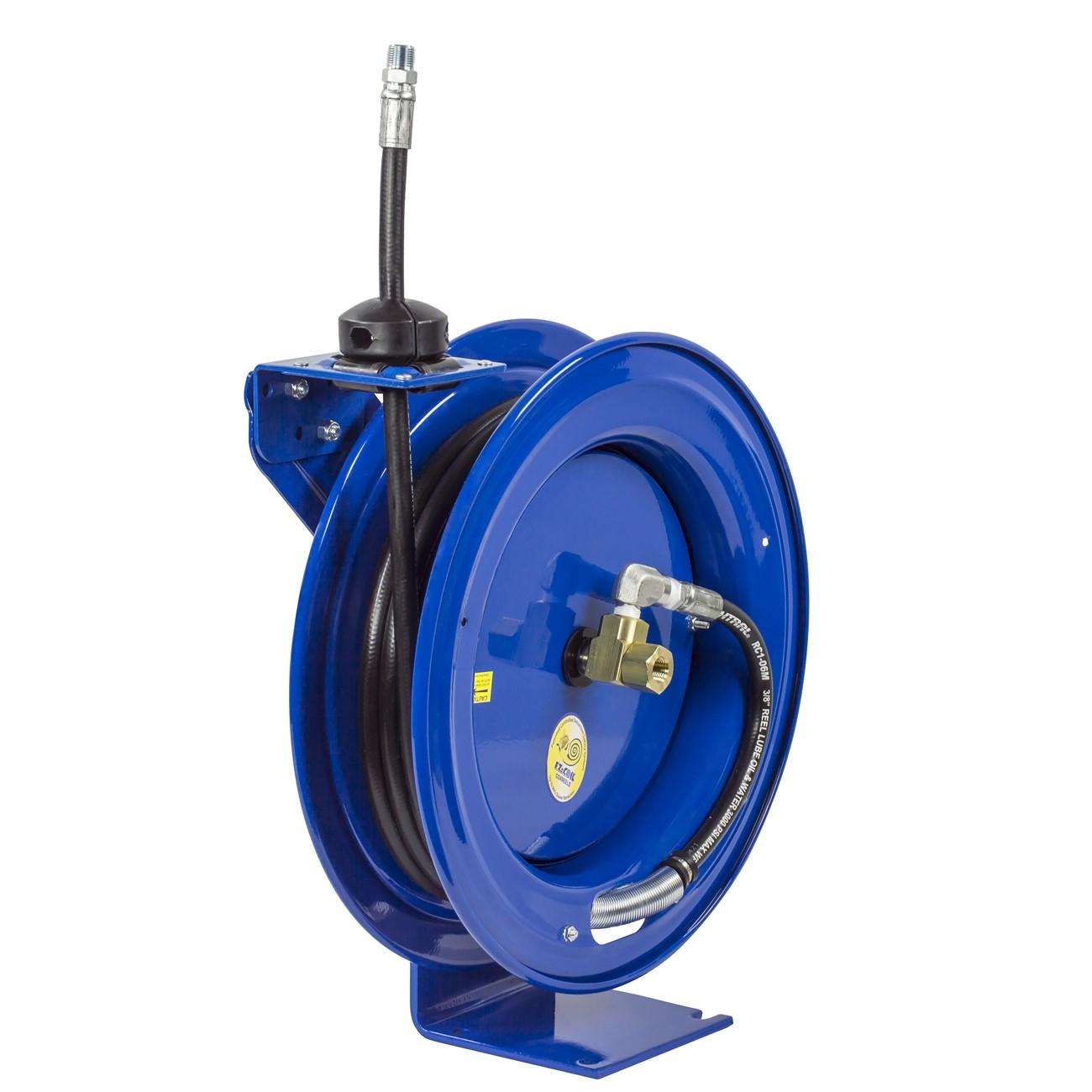

Coxreels EZ-P-MP-425 Spring Driven Hose Reel 1/2 in 25 Ft

Product Description

The COXREELS EZ-P-MP-425 is a spring-driven retractable hose reel built for demanding trade and industrial applications. Designed around the P Series platform, it accepts 1/2 inch ID hose up to 25 feet and retracts automatically using an enclosed, lubricated cartridge-style spring motor. The EZ-COIL system slows retraction speed by up to 80 percent compared to conventional reels, reducing snap-back risk on the job. Construction centers on heavy-duty CNC robotically spun and ribbed steel discs with rolled edges. A machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose replacement without removing the reel from its mount. Licensed plumbers, HVAC technicians, and industrial maintenance professionals are the primary installers.

The EZ-P-MP-425 suits residential and light commercial service environments where a compact, wall-, floor-, ceiling-, or vehicle-mounted hose reel is needed. The single-pedestal steel base and multi-position guide arm make it adaptable to service trucks, shop bays, mechanical rooms, and equipment pads. Its CPC powder coat finish resists chipping and rust, making it appropriate for outdoor and corrosive-environment installs where hose management and retraction speed control are priorities.

Key Features

• EZ-COIL spring motor retracts hose up to 80 percent slower than conventional reels, reducing snap-back hazard
• Machined solid brass 90-degree full-flow NPT swivel allows in-place seal maintenance and hose changes
• CNC robotically spun and ribbed discs with rolled edges for structural strength and hose protection
• 1/4 inch solid one-piece steel base with single pedestal and no-weld support post for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish is chip-resistant and rust-inhibiting; adjustable solid rubber hose stop included

Compatibility

Designed for use with 1/2 inch ID, 13/16 inch OD hose up to 25 feet in length; consult COXREELS fitment documentation for hose material and pressure rating compatibility before installation.

Installation Notes

Installation should be performed by a qualified technician familiar with the fluid or gas media being conveyed. Shut off and depressurize the supply line completely before connecting or disconnecting hose and swivel fittings. Verify that the mounting surface can support the loaded weight of the reel, hose, and fluid. Follow applicable OSHA and local safety codes for pressurized hose assemblies in the work environment.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 13/16 inch
• Hose Length: 25 feet
• Retraction Type: Spring driven (EZ-COIL cartridge motor)
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Base Material: 1/4 inch steel, single pedestal, no-weld construction
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 49 pounds
• UPC: 674255723139

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-P-MP-425
