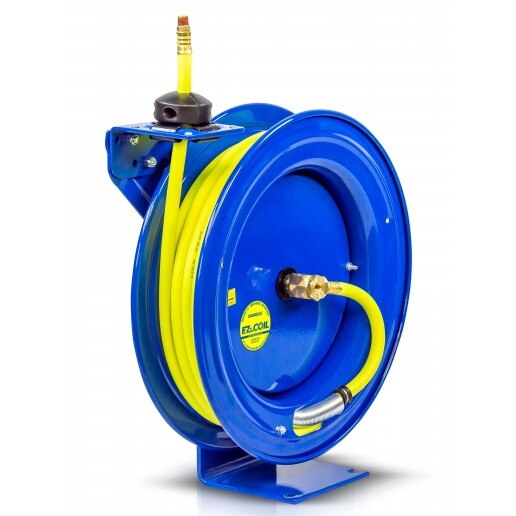

Coxreels EZ-P-LP-450-HV High Visibility Safety Hose Reel

Product Description

The COXREELS EZ-P-LP-450-HV is a high visibility safety hose reel built for trade environments where hose awareness and controlled retraction reduce injury risk. The reel features the EZ-Coil spring-driven retraction system, which retracts up to 80% slower than conventional reels, giving operators controlled, manageable hose return. The hose is a hybrid bright yellow PVC-rubber blend with a white glossy stripe designed to maximize visibility on the shop floor, job site, or service vehicle. Heavy-duty CNC robotically spun and ribbed discs with rolled edges provide structural integrity and protect the hose during coiling. This reel is installed by HVAC technicians, plumbers, mechanics, and general trade professionals in any setting where a retractable hose reel is part of the daily workflow.

The EZ-P-LP-450-HV is suited for shop, garage, fleet service, and industrial facility installations. The reel accepts wall, floor, ceiling, and vehicle mounting configurations via an adjustable guide arm, making it adaptable across a wide range of service environments. The 1/2 inch inner diameter hose path supports common air and low-pressure fluid supply lines. The solid single-pedestal steel base provides stable, permanent mounting without welded joints. The machined brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount.

Key Features

• EZ-Coil patented retraction system slows hose return to up to 80% slower than standard spring reels, reducing snap-back hazard
• High visibility hybrid yellow PVC-rubber hose with white glossy stripe improves hose awareness and reduces trip hazard potential
• Machined solid brass 90-degree full-flow NPT swivel allows seal service and hose replacement without dismounting the reel
• CNC robotically spun and ribbed steel discs with rolled edges protect the hose and improve operator safety during retraction
• Solid one-piece steel base with single pedestal design requires no welding and provides maximum mounting stability
• Adjustable guide arm supports wall, floor, ceiling, and vehicle mounting positions
• CPC powder coat finish resists chipping and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style retractable safety hose reel for low-pressure air and fluid service lines with a 1/2 inch inner diameter connection, compatible with standard NPT fittings common in shop and industrial trade installations.

Installation Notes

Installation is typically performed by a qualified mechanic, HVAC technician, or facilities maintenance professional. Shut off and depressurize the supply line completely before mounting or connecting the reel. Secure the mounting base to a structural surface rated to support the reel weight and hose load. Verify all NPT fittings are properly sealed and the guide arm is adjusted to the intended hose path before pressurizing the system.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 3/4 inch
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 48 pounds
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Hose Material: Hybrid PVC and rubber blend
• Base Material: Steel, single-piece no-weld construction
• Finish: CPC powder coat, chip resistant and rust inhibiting
• UOM: Each
• UPC: 674255752566

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-P-LP-450-HV
