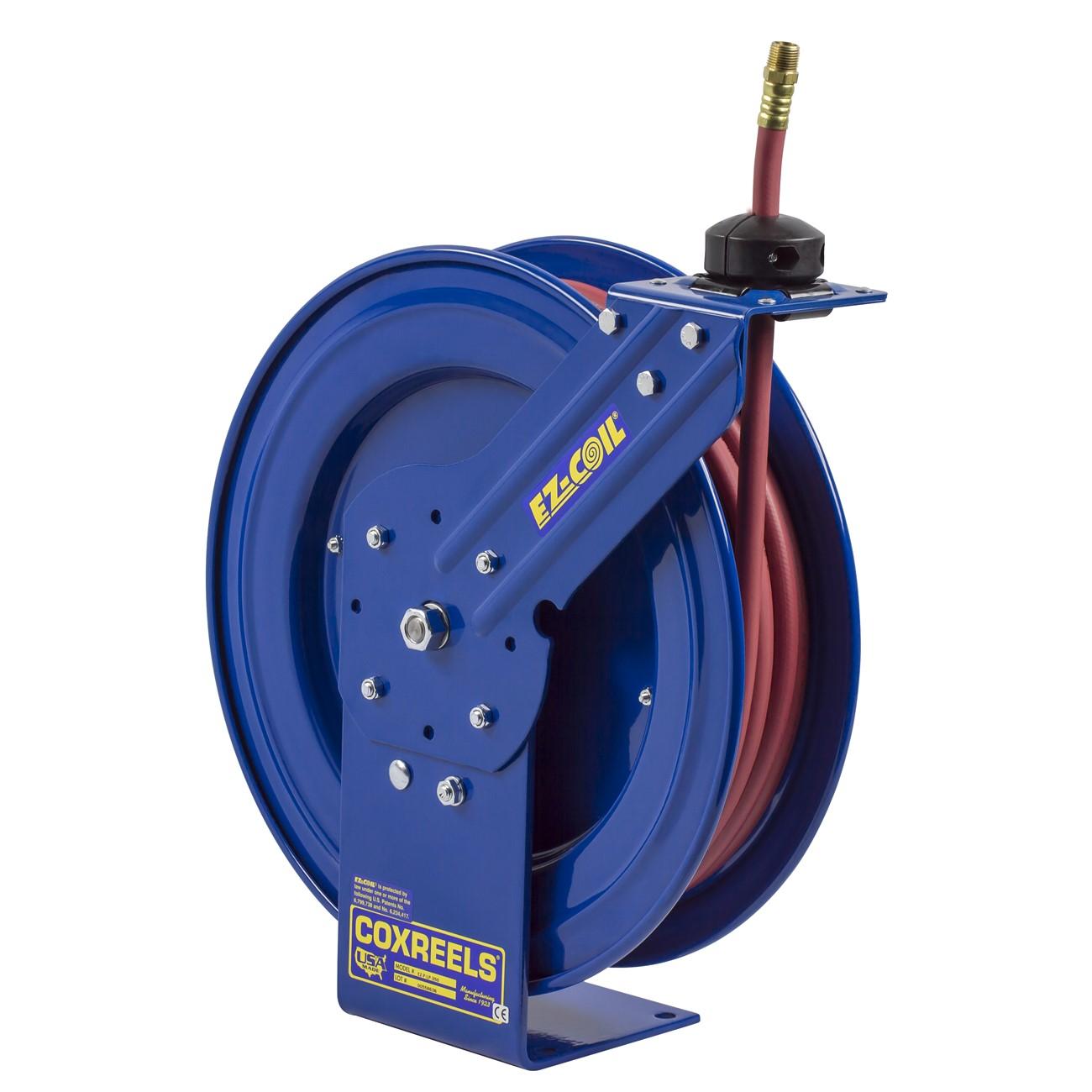

Coxreels EZ-P-LP-430 Spring Driven Hose Reel 30 Ft

Product Description

The COXREELS EZ-P-LP-430 is a spring-driven retractable hose reel built for demanding trade and industrial applications. Part of the EZ-P Series, it accepts 1/2 inch ID hose and accommodates up to 30 feet of hose length. The EZ-COIL spring motor uses a lubricated, enclosed cartridge design that retracts the hose at up to 80% slower than conventional reels, reducing snap-back hazards on the job site. Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges give the reel its structural integrity. Licensed HVAC techs, plumbers, and industrial service professionals routinely specify this reel for pressurized fluid delivery in mobile and fixed installations.

The EZ-P-LP-430 suits residential and commercial service environments where a compact, wall-, floor-, ceiling-, or vehicle-mounted hose management solution is needed. Its single-pedestal steel base and multi-position guide arm make it adaptable to tight utility rooms, service vans, and shop installations. The reel ships as a single unit without hose included, allowing the installer to select hose suited to the specific fluid and pressure application.

Key Features

• EZ-COIL enclosed cartridge spring motor retracts hose up to 80% slower than conventional reels for improved operator safety
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for superior strength, durability, and hose protection
• Solid one-piece steel base with single pedestal support post, no-weld construction, for maximum stability
• Multi-position guide arm adjusts to wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish resists chips and rust; adjustable solid rubber hose stop included; permanently lubricated precision bearings

Compatibility

Designed for use with 1/2 inch ID hose up to 30 feet in length; compatible with standard NPT hose fittings. Suitable as an OEM-style replacement or new-installation spring-driven hose reel in pressurized fluid service applications.

Installation Notes

Installation should be performed by a qualified technician familiar with pressurized hose systems and applicable local codes. Depressurize and drain the supply line fully before mounting or servicing the reel. Secure the base to a structurally sound surface rated for the combined weight of the reel and loaded hose. Verify NPT swivel connections are properly sealed before returning the system to service.

Technical Specifications

• Hose ID: 1/2 inch
• Hose Capacity: 30 feet
• Spring Motor Type: EZ-COIL lubricated enclosed cartridge
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Disc Construction: CNC robotically spun and ribbed steel with rolled edges
• Base Construction: One-piece solid steel, single pedestal, no-weld
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 45 pounds
• UPC: 674255725584

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-P-LP-430
