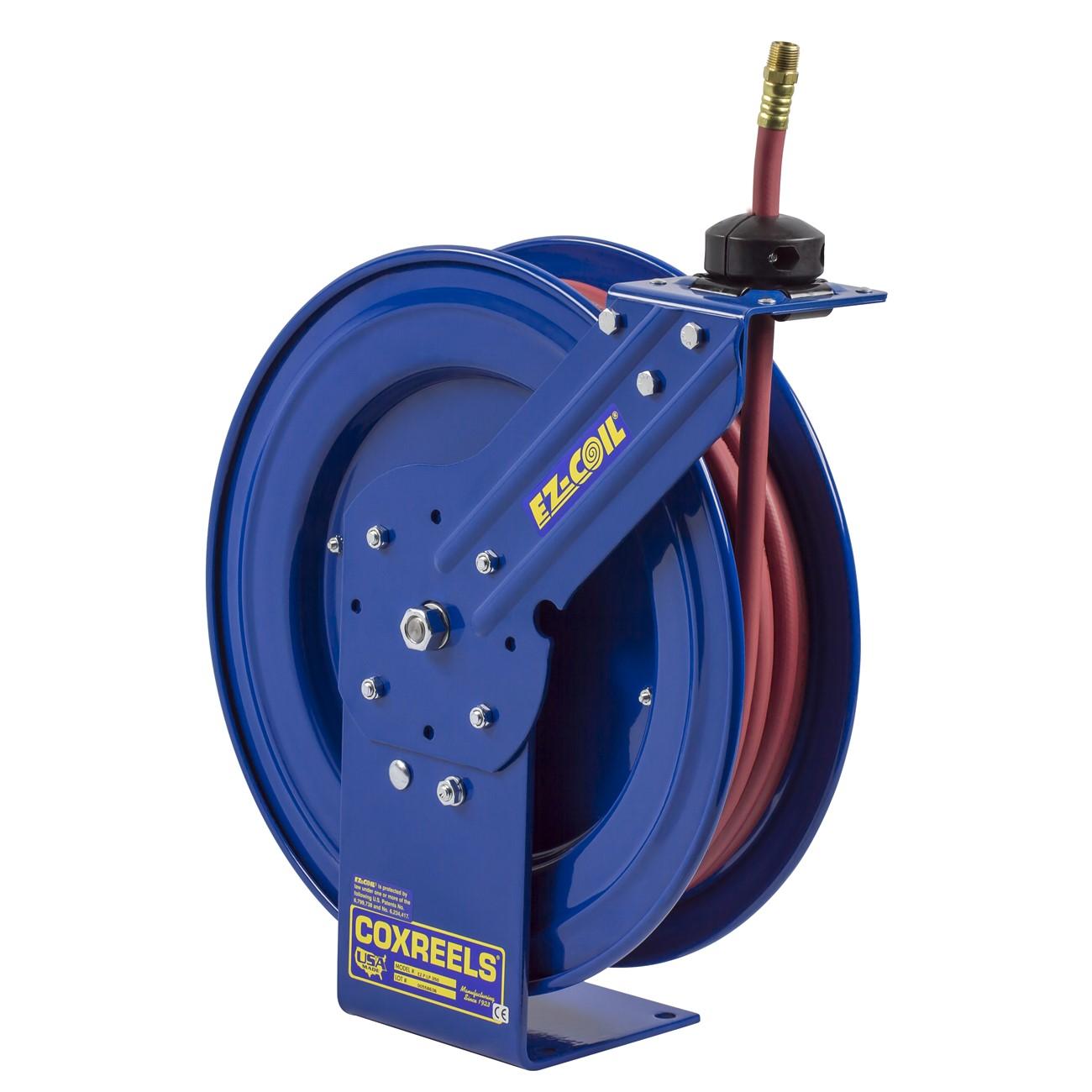

Coxreels EZ-P-LP-350 Spring Driven Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS EZ-P-LP-350 is a spring-driven hose reel built for low-pressure service in demanding trade environments. It accepts 3/8-inch ID hose up to 50 feet and retracts automatically using an enclosed, cartridge-style spring motor. The EZ-Coil safety system slows retraction to up to 80 percent slower than conventional spring reels, reducing snap-back risk during daily use. CNC robotically spun and ribbed steel discs with rolled edges provide structural strength and protect hose integrity. A machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount. Licensed tradespeople in plumbing, HVAC, and general shop service will find this reel suited to fixed and mobile installations alike. The unit weighs 43 pounds.

The EZ-P-LP-350 is designed for low-pressure hose applications across residential and light commercial settings. Typical installations include service bays, shop floors, utility rooms, and service vehicles. Its multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to tight or unconventional spaces. The single-pedestal, one-piece steel base provides stable footing without welded joints. A CPC powder coat finish resists chipping and rust for long service life in corrosive or high-humidity environments.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts up to 80 percent slower than conventional reels for improved operator safety
• Machined solid brass 90-degree full-flow NPT swivel allows in-place seal maintenance and fast hose installation
• Heavy-duty CNC robotically spun ribbed steel discs with rolled edges for strength, durability, and hose protection
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• One-piece steel base with single pedestal design, no welds, for maximum stability
• CPC powder coat finish resists chips and rust; adjustable solid rubber hose stop included

Compatibility

Designed as an OEM-style spring-driven hose reel for low-pressure service applications accepting 3/8-inch ID hose up to 50 feet in length.

Installation Notes

Installation is typically performed by a qualified tradesperson using standard hand tools and appropriate fasteners rated for the mounting surface. Ensure the hose supply line is fully depressurized and the system is shut off before connecting or servicing the swivel or hose fittings. Mount the reel per local codes and the manufacturer mounting guidelines, verifying the support structure can carry the combined weight of the reel and a fully loaded hose. The spring motor cartridge is removable for maintenance without detaching the reel from its mount.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Hose Capacity: 50 ft
• Drive Type: Spring driven
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 43 pounds
• UPC: 674255723122

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-P-LP-350
