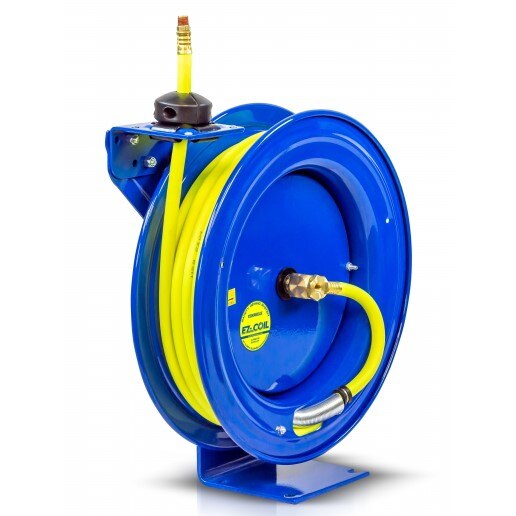

Coxreels EZ-P-LP-350-HV High Visibility Safety Hose Reel

Product Description

The COXREELS EZ-P-LP-350-HV is a spring-retractable safety hose reel designed for trade professionals who need controlled hose retrieval with enhanced jobsite visibility. The reel ships with a high-visibility hybrid yellow hose featuring a white glossy stripe, making it easy to spot in busy work environments. The EZ-Coil spring motor retracts the hose up to 80 percent slower than conventional reels, significantly reducing snap-back hazards. The reel body is built around CNC robotically spun and ribbed steel discs with rolled edges, and the unit weighs 43 pounds. Licensed HVAC technicians, plumbers, and general service technicians are the primary installers of this equipment.

This hose reel is suited for light-duty fluid transfer and compressed air service in residential and commercial settings. The 3/8 inch inner diameter hose path accommodates standard service line connections. The versatile guide arm adjusts for wall, floor, ceiling, and vehicle mounting positions, making it appropriate for service trucks, shop bays, and fixed equipment rooms. The single-pedestal steel base provides a stable footprint across all mounting orientations without requiring a welded assembly.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts hose up to 80 percent slower than conventional reels for controlled, safer retrieval
• High-visibility hybrid yellow hose with white stripe combines PVC flexibility and rubber durability with enhanced kink resistance and reduced coil memory
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges provide structural strength, hose protection, and operator safety
• One-piece solid steel base and support post with no-weld construction for maximum mounting stability
• CPC powder coat finish resists chips and rust; adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed as a direct-use spring-retractable hose reel for light-duty fluid and air service lines with 3/8 inch ID hose connections in shop, fleet, and commercial installation environments.

Installation Notes

Installation is typically performed by a qualified service technician or mechanic familiar with hose reel mounting systems. Disconnect and depressurize the supply line completely before connecting or servicing the reel. The guide arm must be secured to a structural surface rated to support the reel weight plus dynamic hose load. Verify that all fittings and swivel connections are torqued to fitting manufacturer specifications and confirm there are no leaks before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 3/8 inches
• Hose Outer Diameter: 5/8 inches
• Weight: 43 pounds
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Retraction Type: EZ-Coil spring motor, enclosed cartridge
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Base Construction: One-piece solid steel, no-weld single pedestal
• Finish: CPC powder coat, chip and rust resistant
• UPC: 674255752559

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-P-LP-350-HV
