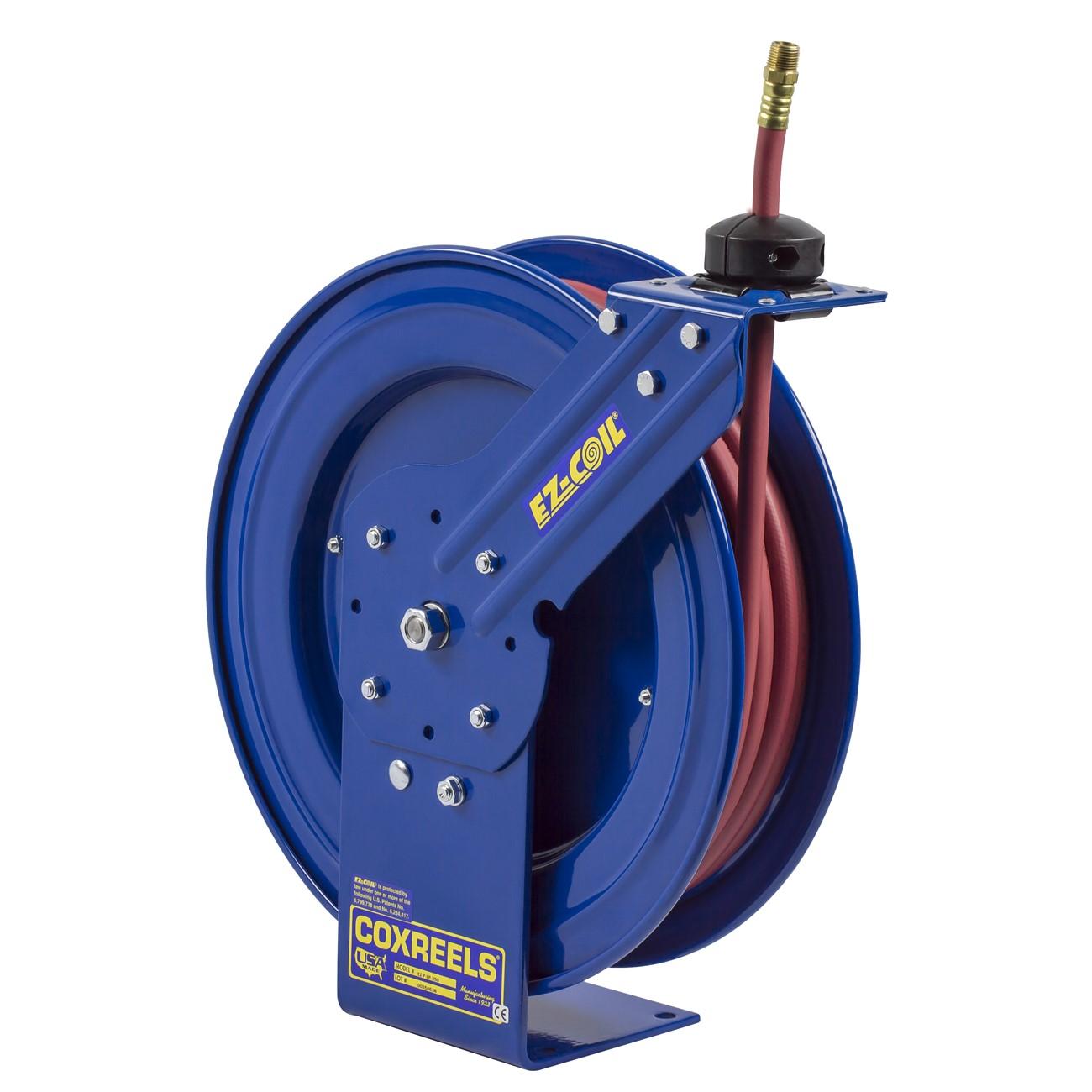

Coxreels EZ-P-LP-330 Spring Driven Hose Reel 3/8 in 30 Ft

Product Description

The COXREELS EZ-P-LP-330 is a spring-driven retractable hose reel built for demanding trade and industrial service environments. It accepts 3/8 inch ID hose up to 30 feet in length and uses a patented EZ-Coil cartridge-style motor that retracts up to 80 percent slower than conventional spring reels, reducing snap-back risk for the technician. The reel is constructed with CNC robotically spun and ribbed steel discs with rolled edges for structural integrity and hose protection. A machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose changes without removing the reel from its mount. This unit is suited for installation by HVAC technicians, plumbers, automotive service professionals, and general industrial maintenance crews.

The EZ-P-LP-330 is designed for low-pressure fluid delivery and retraction applications including compressed air, water, and similar compatible media in shop, fleet, or field service settings. Its multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across service bays, lube rooms, and mobile service units. The single-pedestal steel base uses a no-weld one-piece construction for a stable, secure footprint on any mounting surface.

Key Features

• EZ-Coil patented safety motor retracts up to 80 percent slower than standard spring reels
• Lubricated enclosed cartridge-style motor is removable for maintenance without full disassembly
• Machined solid brass 90-degree full-flow NPT swivel supports in-place seal service and hose replacement
• CNC robotically spun and ribbed steel discs with rolled edges for durability and operator safety
• Multi-position guide arm mounts to wall, floor, ceiling, or vehicle
• CPC powder coat finish provides chip resistance and rust inhibition for long service life

Compatibility

Designed for use with 3/8 inch ID hose up to 30 feet in length in low-pressure hose reel applications. Consult COXREELS documentation to confirm fluid media compatibility before installation.

Installation Notes

Installation is typically performed by a qualified mechanic, HVAC technician, or maintenance professional using standard hand tools. Before mounting, ensure the selected surface can support the loaded weight of the reel and hose. Depressurize and disconnect any fluid supply lines before servicing the swivel, motor cartridge, or hose stop. Follow all applicable facility safety and equipment mounting codes for the intended environment.

Technical Specifications

• Hose ID: 3/8 inch
• Hose Length: 30 feet
• Reel Type: Spring driven retractable
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Base Construction: One-piece steel, no-weld single pedestal
• Finish: CPC powder coat
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 37 pounds
• UPC: 674255729179

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-P-LP-330
