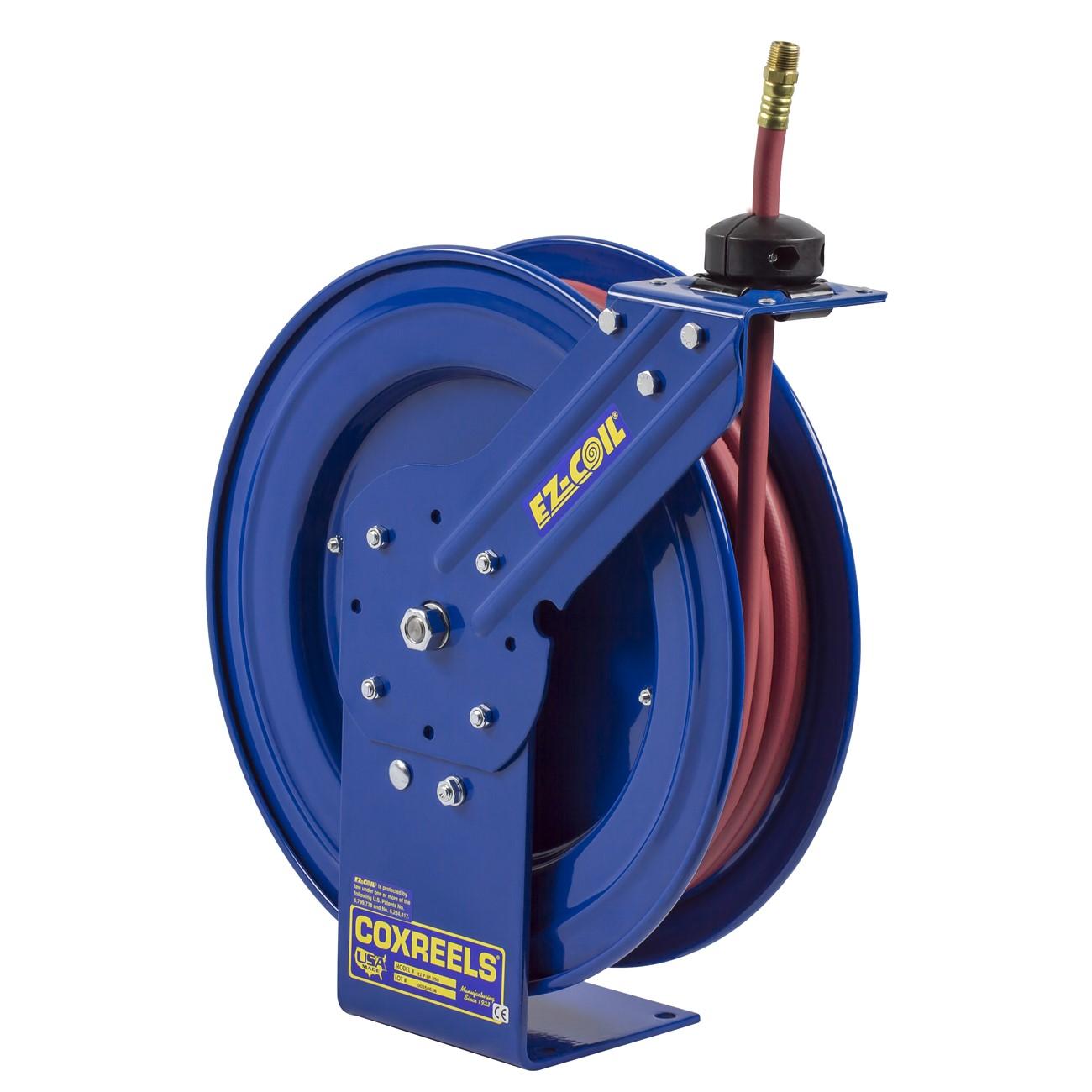

Coxreels EZ-P-LP-325 Spring Driven Hose Reel 3/8 in 25 Ft

Product Description

The COXREELS EZ-P-LP-325 is a spring-driven retractable hose reel built for low-pressure hose management in demanding trade environments. The EZ-Coil cartridge motor uses a patented safety retraction system that slows the retract speed up to 80 percent compared to conventional spring reels, reducing snap-back hazards on the job. The reel features CNC robotically spun and ribbed steel discs with rolled edges for structural rigidity and hose protection. A machined solid-brass 90-degree full-flow NPT swivel allows seal maintenance and hose swaps without removing the reel from its mount. Licensed HVAC technicians, plumbers, and general mechanical contractors are the typical installers of this unit.

The EZ-P-LP-325 is suited for low-pressure hose applications in residential and light commercial service settings. Its multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it a practical choice for service vans, shop bays, and fixed utility stations. The compact footprint — 17.5 inches long by 8.5 inches wide by 19.25 inches tall — fits in tight spaces where full-size reels will not. The reel accommodates 3/8 inch ID hose up to 25 feet in length.

Key Features

• EZ-Coil patented safety system retracts up to 80 percent slower than conventional spring-driven reels
• Lubricated, enclosed cartridge-style spring motor is removable for maintenance without specialized tooling
• Machined solid-brass 90-degree full-flow NPT swivel supports fast hose installation and in-place seal service
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish is chip-resistant and rust-inhibiting for long service life in harsh environments

Compatibility

Designed as an OEM-style replacement or direct-fit unit for low-pressure hose reel applications requiring 3/8 inch ID hose and up to 25 feet of hose capacity.

Installation Notes

Installation is typically performed by mechanical or service technicians familiar with hose and fluid-handling systems. Shut off and depressurize the supply line completely before connecting or disconnecting hose fittings at the swivel. The single-pedestal steel base requires secure fastening to a structural surface rated for the combined weight of the reel, hose, and working fluid. Refer to applicable facility or vehicle codes when mounting in mobile service unit applications.

Technical Specifications

• Hose Inside Diameter: 3/8 inch
• Hose Outside Diameter: 5/8 inch
• Hose Length: 25 feet
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 28 pounds
• Swivel Material: Solid brass
• Base Construction: Single pedestal, one-piece steel, no-weld
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Drive Type: Spring driven
• UPC: 674255723115

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-P-LP-325
