Coxreels EZ-P-LP-325-HV High Visibility Safety Hose Reel

Product Description

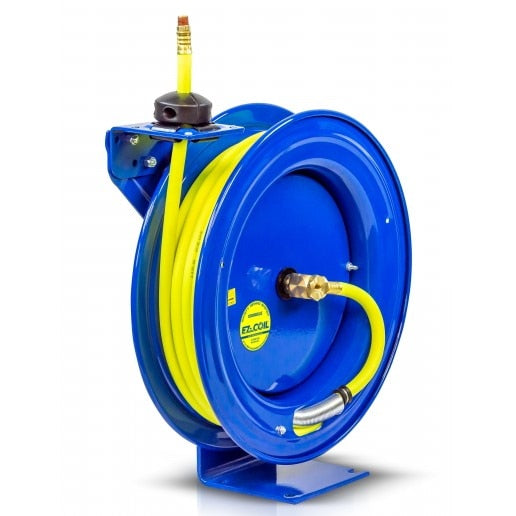

The COXREELS EZ-P-LP-325-HV is a high-visibility, spring-driven retractable hose reel built for trade and industrial environments where safety and reliable hose management are priorities. The reel uses the Coxreels EZ-Coil controlled retraction system, which slows retraction speed up to 80 percent compared to conventional spring reels, reducing snap-back hazards. It ships with a hybrid bright yellow and white high-visibility hose measuring 3/8 inch inner diameter and 5/8 inch outer diameter. The machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount. Licensed HVAC technicians, plumbers, and industrial service professionals are the primary installers of this unit.

The EZ-P-LP-325-HV suits applications where operator safety and hose visibility are critical, such as shop floors, service bays, maintenance facilities, and fleet service environments. The high-visibility hybrid hose reduces trip hazard potential by laying flat and resisting coil memory. Its adjustable guide arm supports wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a range of commercial and industrial service setups. The single-pedestal steel base provides a stable footprint in fixed installations.

Key Features

• EZ-Coil controlled retraction retracts up to 80 percent slower than conventional reels, reducing snap-back injury risk
• Machined solid brass 90-degree full-flow NPT swivel allows hose service and replacement without dismounting the reel
• Hybrid PVC and rubber high-visibility hose in bright yellow with white stripe offers kink resistance, low-temperature flexibility, and reduced coil memory
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• One-piece solid steel base with no-weld single pedestal design for maximum mounting stability
• Chip-resistant, rust-inhibiting CPC powder coat finish with adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style retractable hose reel for use in commercial and industrial service applications requiring 3/8 inch ID hose delivery with controlled spring-driven retraction.

Installation Notes

Installation is typically performed by qualified service technicians or maintenance professionals familiar with hose reel mounting and fluid delivery systems. Shut off all fluid supply and depressurize the hose before servicing or mounting the reel. The guide arm supports multiple mounting orientations; confirm the mounting surface can support the loaded weight of the reel before fastening. Follow applicable facility and safety codes when installing in vehicle or overhead configurations.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Outer Diameter: 5/8 inch
• Retraction System: EZ-Coil controlled spring retraction
• Swivel: Machined solid brass 90-degree full-flow NPT
• Hose Type: Hybrid PVC and rubber high-visibility
• Disc Construction: CNC robotically spun ribbed discs with rolled edges
• Base Material: One-piece solid steel, no-weld single pedestal
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 28 pounds
• UPC: 674255752542

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-P-LP-325-HV
