Coxreels EZ-P-LP-135 Spring Driven Hose Reel 1/4 in 35 Ft

Product Description

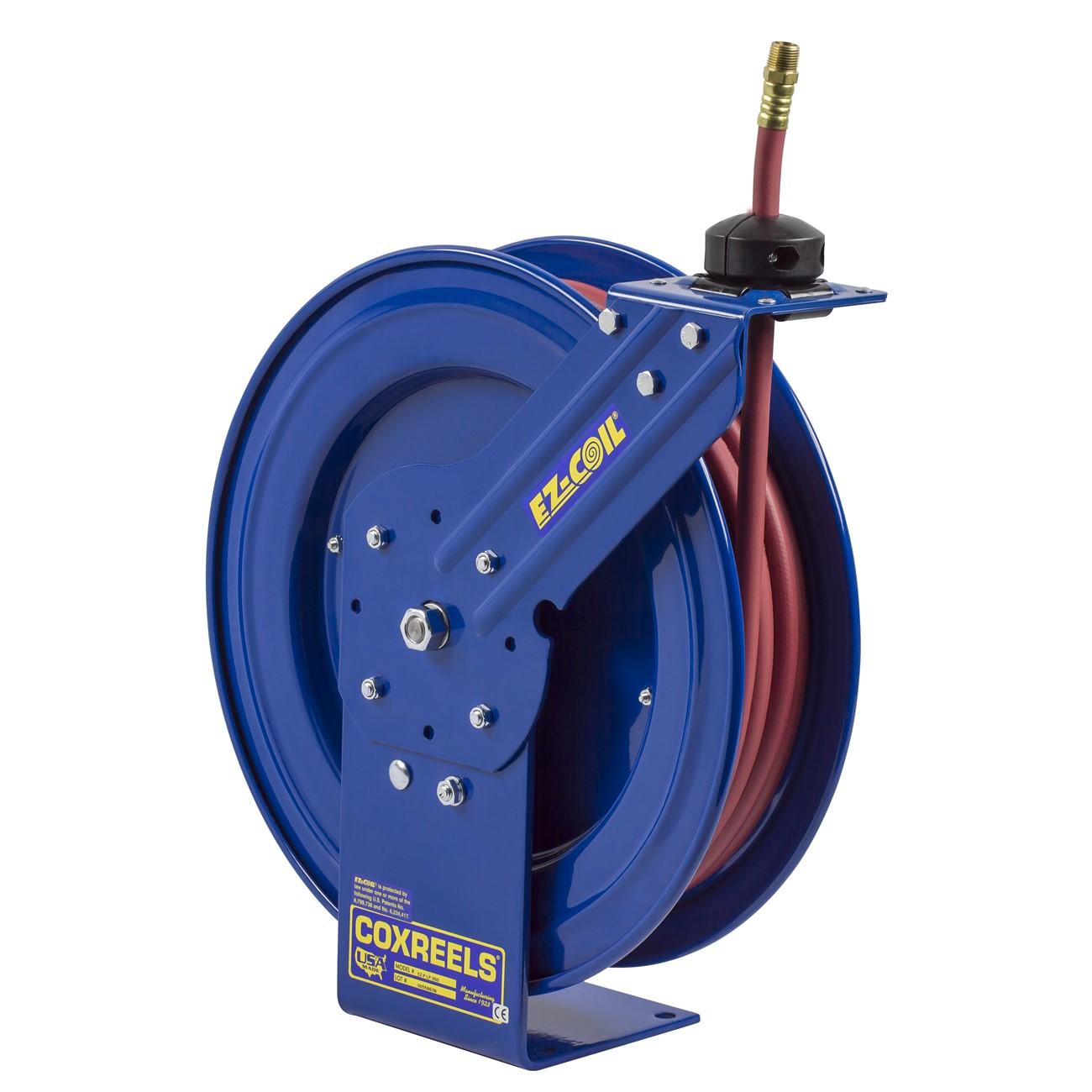

The COXREELS EZ-P-LP-135 is a spring-driven retractable hose reel designed for trade and industrial environments where reliable hose management is essential. Built around the EZ-COIL patented retraction system, it retracts up to 80 percent slower than conventional reels, reducing snap-back hazards during everyday use. The reel accommodates a 1/4 inch ID hose up to 35 feet in length and features a machined solid-brass 90-degree full-flow NPT swivel that allows hose installation and seal maintenance without removing the reel from its mount. At 28 pounds and measuring 17.5 inches long by 8.5 inches wide by 19.25 inches tall, it is compact enough for van, wall, floor, or ceiling installations. HVAC technicians, plumbers, and service mechanics are the primary installers.

The EZ-P-LP-135 is suited for light-duty pneumatic and fluid transfer applications in residential and light commercial service environments. Its single-pedestal, no-weld steel base and multi-position guide arm make it adaptable to shop carts, service vehicles, and fixed wall or ceiling mounts. The CPC powder coat finish resists chipping and rust, making it a practical choice for outdoor vehicle mounts or humid shop conditions. The enclosed, lubricated cartridge-style spring motor is removable without special tooling, which simplifies preventive maintenance in the field.

Key Features

• EZ-COIL spring motor retracts up to 80 percent slower than conventional reels, reducing snap-back risk
• Machined solid-brass 90-degree full-flow NPT swivel allows hose installation and seal service without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base with single-pedestal, no-weld construction for maximum stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting orientations
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style spring-driven reel for use with 1/4 inch ID hose up to 35 feet in light-duty pneumatic and fluid transfer service applications.

Installation Notes

Installation is typically performed by HVAC technicians, plumbers, or mechanical service professionals. Shut off and depressurize the supply line completely before mounting or connecting the reel. Secure the base to a structurally sound surface using fasteners appropriate for the mounting substrate and load. Consult applicable OSHA and local safety codes for overhead or vehicle-mounted installations.

Technical Specifications

• Hose ID: 1/4 inch
• Hose Length Capacity: 35 feet
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 28 pounds
• Swivel Material: Solid brass
• Finish: CPC powder coat
• UPC: 674255736900

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-P-LP-135
