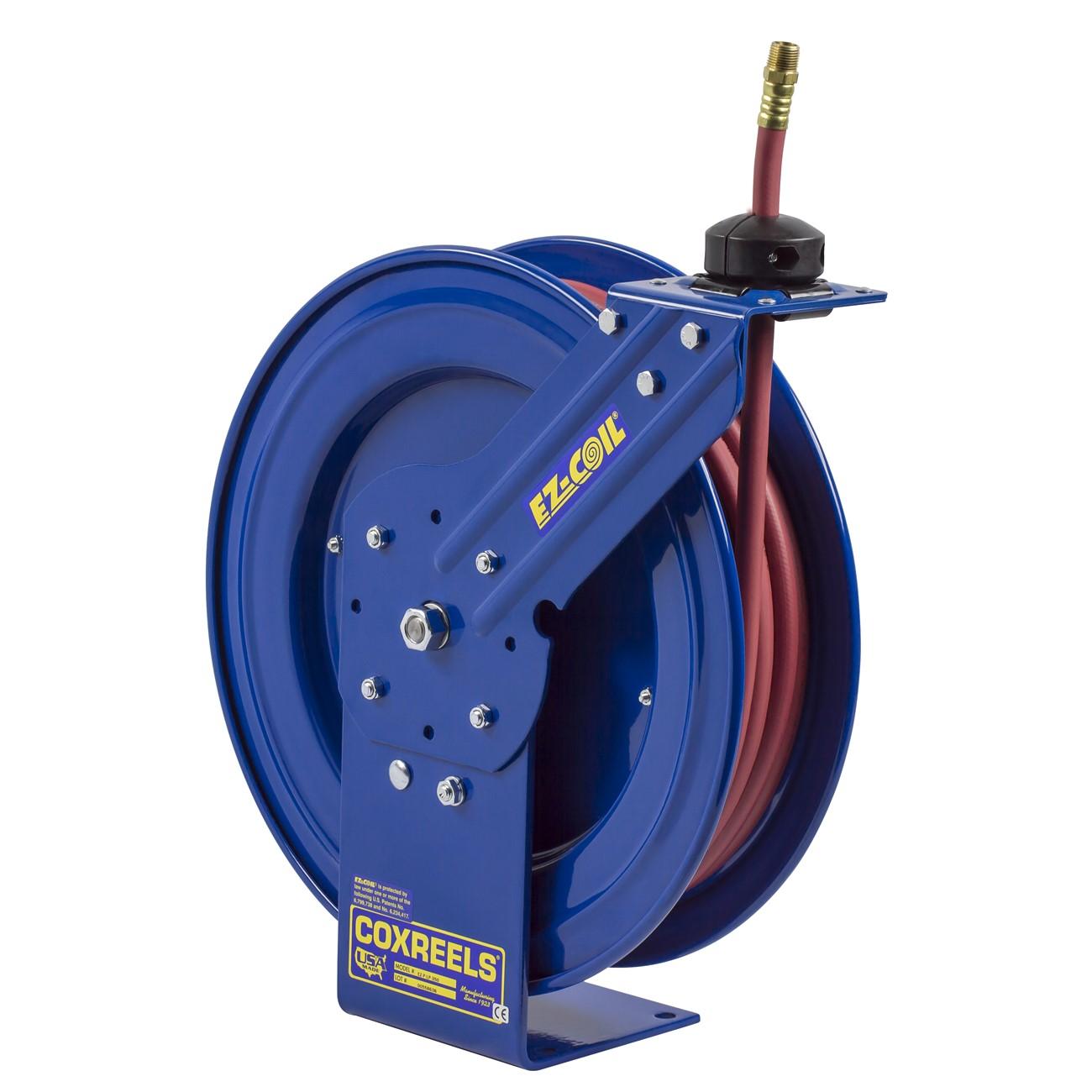

Coxreels EZ-P-LP-125 Spring Driven Hose Reel 1/4 in 25 Ft

Product Description

The COXREELS EZ-P-LP-125 is a spring-driven retractable hose reel built for demanding trade applications where compact size and long service life are both required. Part of the Coxreels P Series, this reel accepts hose with a 1/4 inch ID and 1/2 inch OD up to 25 feet in length. The EZ-Coil spring motor uses a lubricated, enclosed cartridge design that retracts at up to 80% slower than conventional reels, reducing snap-back hazards on the job. The unit weighs 27 pounds and measures 17.5 inches long by 8.5 inches wide by 19.25 inches tall. Installation is handled by licensed contractors and qualified service technicians across HVAC, plumbing, and general mechanical trades.

This hose reel is suited for low-pressure fluid service in both residential and light commercial settings. Typical installations include service bays, mechanical rooms, fleet vehicles, and shop walls where a compact, wall-, floor-, ceiling-, or vehicle-mounted retractable reel is needed. The multi-position guide arm adjusts to accommodate all four mounting orientations without requiring additional hardware. The solid one-piece steel base and single-pedestal support post provide stable mounting across surfaces without welded joints.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts up to 80% slower than conventional reels for improved operator safety
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for increased strength, hose protection, and durability
• Solid one-piece steel base and support post — no welds — for maximum mounting stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style retractable hose reel compatible with 1/4 inch ID, 1/2 inch OD hose up to 25 feet in length for low-pressure fluid service applications.

Installation Notes

Installation is typically performed by a qualified mechanical or service technician familiar with hose reel mounting requirements. Shut off all fluid supply and depressurize the hose and supply line before connecting or disconnecting the swivel inlet. Secure the mounting base to a structurally adequate surface using fasteners appropriate for the substrate. Consult applicable local mechanical codes for hose routing and fluid service requirements.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 1/2 inch
• Hose Length: 25 feet
• Spring Motor Type: EZ-Coil enclosed cartridge, spring driven
• Swivel Material: Solid brass, machined
• Base Material: Steel, one-piece
• Finish: CPC powder coat
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 27 pounds
• UPC: 674255726079

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-P-LP-125
