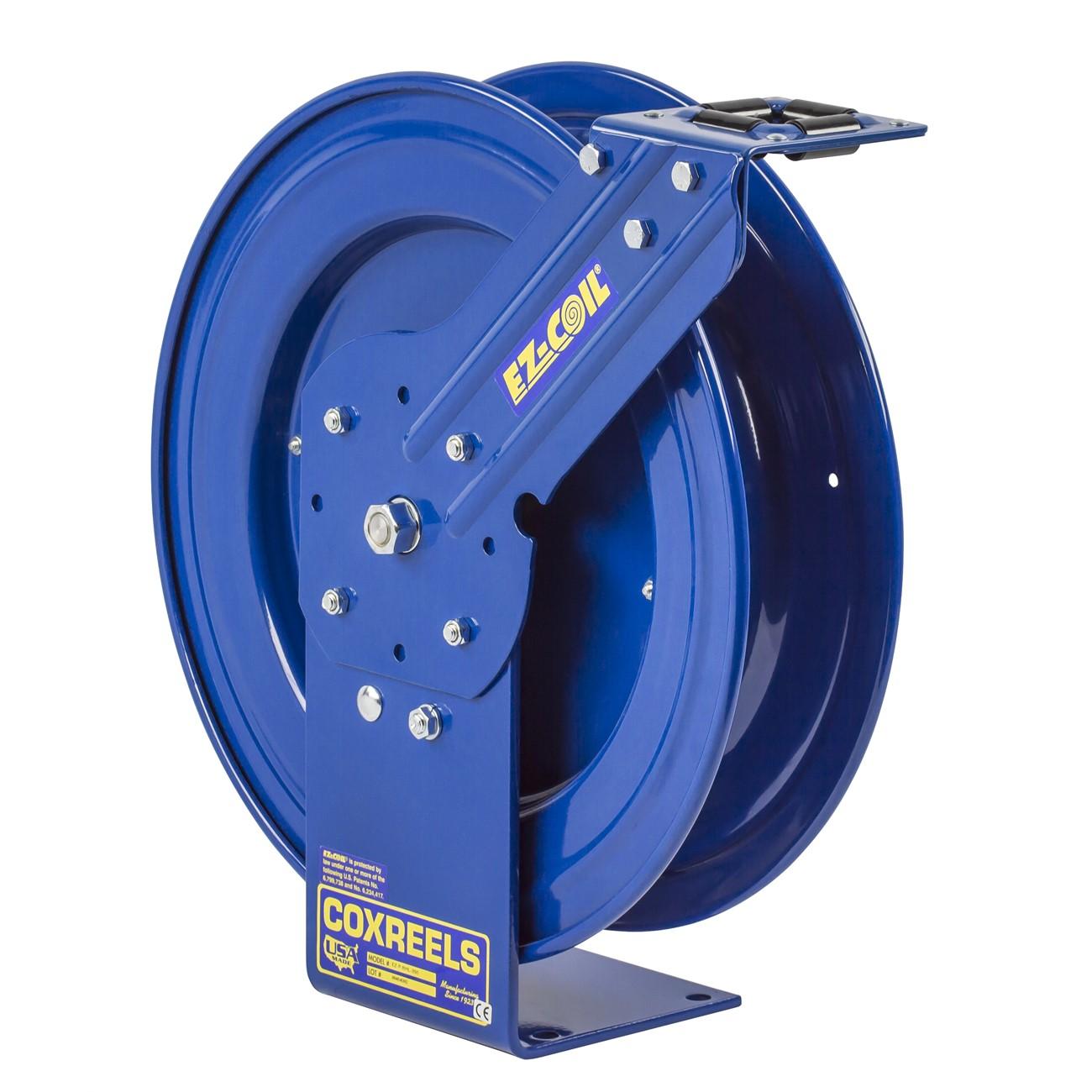

Coxreels EZ-P-BLL-350 Pure Flow Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS EZ-P-BLL-350 is a professional-grade Pure Flow hose reel designed for sanitary and non-contaminated fluid transfer applications. Built on a single-pedestal steel base, this reel accepts 3/8 inch ID, 5/8 inch OD hose up to 50 feet in length. The unit features CNC robotically spun and ribbed discs with rolled edges for structural integrity and hose protection. A stainless steel full-flow swivel inlet provides a corrosion-resistant fluid path. Licensed HVAC technicians, plumbers, and fluid-handling professionals install this reel in both stationary service bays and mobile service rigs where clean, uncontaminated fluid delivery is required.

The EZ-P-BLL-350 suits applications requiring sanitized hose storage and dispensing, including potable water lines, respiratory air lines, and other fluid transfer systems that demand contamination-free handling. Its single-pedestal design with a solid one-piece steel base makes it appropriate for fixed installations in shops, service vehicles, and light industrial environments. The adjustable guide arm allows precise hose layering across the drum. Dual axle support via the Super Hub system reduces vibration during reel operation, which is particularly valuable in mobile or high-cycle service environments.

Key Features

• 3/8 inch ID hose capacity up to 50 feet for high-flow fluid transfer
• Stainless steel 90-degree full-flow NPT swivel inlet resists corrosion and supports easy seal access
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Solid one-piece steel single-pedestal base with no-weld construction for maximum stability
• Enclosed, lubricated cartridge-style motor is removable for simplified maintenance
• CPC powder coat finish resists chips and rust for long service life

Compatibility

Designed as an OEM-style Pure Flow hose reel for stationary and mobile fluid transfer installations requiring sanitary, non-contaminated delivery through 3/8 inch ID hose assemblies.

Installation Notes

Installation should be performed by a qualified plumbing or fluid-handling professional familiar with applicable codes. Shut off and depressurize the fluid supply line completely before mounting the reel or connecting hose and fittings. Secure the pedestal base to a flat, load-bearing surface using appropriately rated fasteners. Verify all NPT swivel connections are leak-free before returning the system to service.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 5/8 inch
• Hose Length Capacity: 50 feet
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 43 pounds
• Swivel Material: Stainless Steel
• Inlet Type: 90-degree Full-Flow NPT
• Finish: CPC Powder Coat
• UPC: 674255724891

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-P-BLL-350
