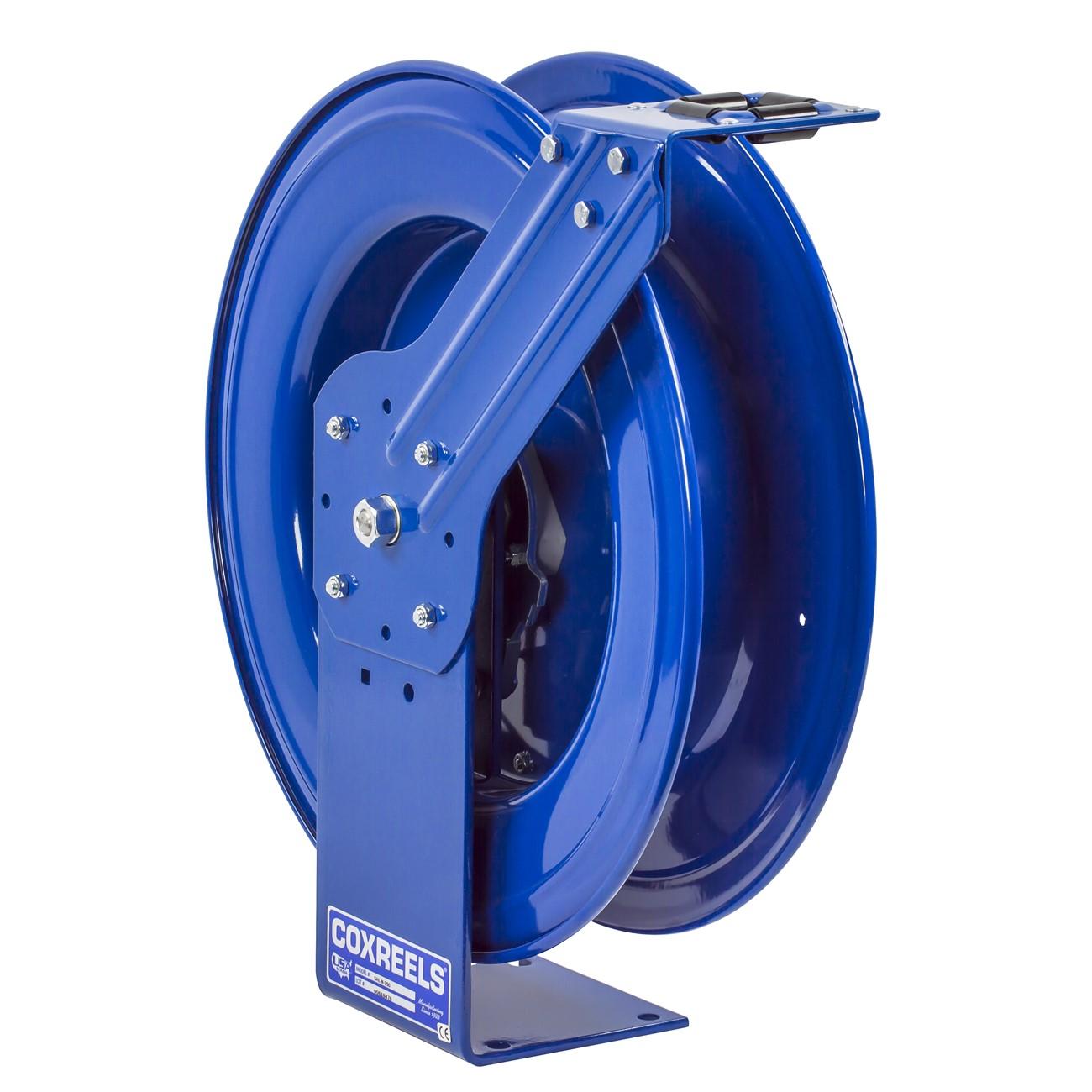

Coxreels EZ-MPL-350 Spring Driven Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS EZ-MPL-350 is a spring-driven hose reel from the EZ-SH Series, built for professional-grade fluid delivery in demanding service environments. It accepts 3/8-inch ID hose up to 50 feet in length and features Coxreels patented EZ-COIL retraction system, which slows rewind speed by up to 80 percent compared to conventional spring reels. The reel is constructed with a heavy-duty CNC robotically spun and ribbed disc design, a solid one-piece steel base, and a dual axle Super Hub support system that reduces vibration and improves structural integrity during operation. Weighing 53 pounds, this is a full-duty unit intended for installation by HVAC technicians, plumbers, or industrial service professionals who require controlled, reliable hose retraction.

The EZ-MPL-350 is suited for wall, floor, ceiling, and vehicle mounting applications, making it a versatile choice for service trucks, shop bays, and fixed mechanical rooms. The multi-position guide arm adjusts to accommodate each mounting configuration without requiring a reel-specific mounting bracket. The machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount. This model is appropriate for use in commercial and industrial settings where hose management, retraction safety, and long service life are priorities.

Key Features

• EZ-COIL patented retraction system slows rewind up to 80 percent slower than conventional spring reels for operator safety
• Lubricated and enclosed cartridge-style motor is removable for maintenance without full reel disassembly
• Machined solid brass 90-degree full-flow NPT swivel allows hose replacement without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges for hose protection and structural durability
• Solid one-piece steel base with no-weld single pedestal design and dual axle Super Hub support
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting orientations
• CPC powder coat finish provides chip resistance and rust inhibition for long-term durability

Compatibility

Designed for use with 3/8-inch ID, 11/16-inch OD hose up to 50 feet in length. Fits standard NPT hose connections. Intended as a direct-mount spring-driven reel for professional service applications across HVAC, plumbing, and industrial fluid delivery systems.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting requirements and fluid system safety. Shut off and depressurize the fluid supply line before making any hose or swivel connections. Mounting hardware must be rated for the combined weight of the reel and fully loaded hose. Verify that the mounting surface and fasteners are appropriate for the selected orientation — wall, floor, ceiling, or vehicle — prior to final installation.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 11/16 inches
• Hose Length Capacity: 50 feet
• Retraction Type: Spring driven, EZ-COIL enclosed cartridge motor
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Base Material: Steel, one-piece no-weld single pedestal
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Weight: 53 pounds
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-MPL-350
