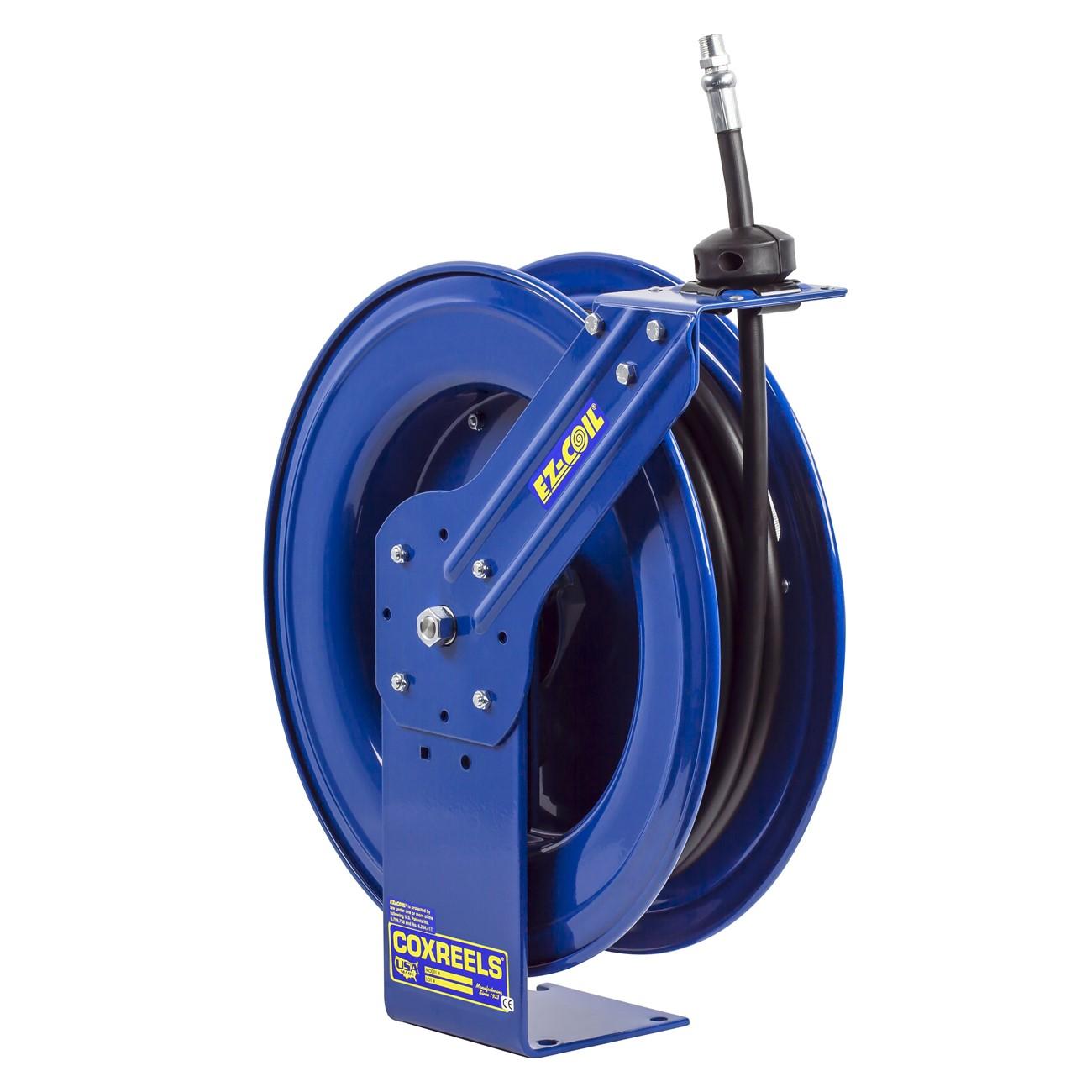

Coxreels EZ-MP-350 Spring Driven Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS EZ-MP-350 is a spring-driven hose reel from the SH Series Super Hub line, built for demanding trade applications where reliable hose retrieval and structural durability are required. The reel accepts hose with a 3/8 inch ID and 11/16 inch OD up to 50 feet in length. It features Coxreels patented EZ-Coil retraction system, which slows rewind speed up to 80 percent compared to conventional spring-driven reels, reducing snap-back hazard during retraction. The unit weighs 65 pounds and ships as a single assembly. Licensed contractors and service technicians in HVAC, plumbing, and industrial fluid transfer typically specify this reel for fixed or mobile service installations.

The EZ-MP-350 suits residential and light commercial service applications where a spring-retract reel is mounted to a wall, floor, ceiling, or service vehicle. The multi-position guide arm supports all four mounting orientations without modification. The 90-degree full-flow NPT swivel is machined from solid brass and allows hose installation and seal service without removing the reel from its mount, making it practical for fleet vehicles and fixed shop bays alike. The enclosed, lubricated cartridge motor is field-removable for maintenance without specialized tooling.

Key Features

• EZ-Coil patented spring motor retracts up to 80 percent slower than conventional reels, reducing snap-back risk
• Solid brass 90-degree full-flow NPT swivel machined from solid stock for simple seal maintenance and easy hose installation
• CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Single-pedestal, one-piece steel base with no-weld construction and exclusive dual-axle Super Hub support system
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish resists chips and rust; adjustable solid rubber hose stop included
• Permanently lubricated precision bearings for long service life

Compatibility

Designed to accept hose with a 3/8 inch ID and 11/16 inch OD up to 50 feet in length. Intended as an OEM-style replacement or new-installation reel compatible with standard NPT fluid transfer hose assemblies in professional service environments.

Installation Notes

Installation is typically performed by licensed HVAC technicians, plumbers, or qualified mechanical contractors. Shut off and depressurize the fluid supply line completely before connecting or disconnecting hose or swivel fittings. Secure the mounting base to a structural surface capable of supporting the combined weight of the reel and charged hose. Verify that all NPT thread connections are properly sealed and pressure-tested before returning the system to service.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 11/16 inch
• Maximum Hose Length: 50 feet
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 65 pounds
• Swivel Material: Solid brass
• Finish: CPC powder coat
• Drive Type: Spring driven
• UOM: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-MP-350
