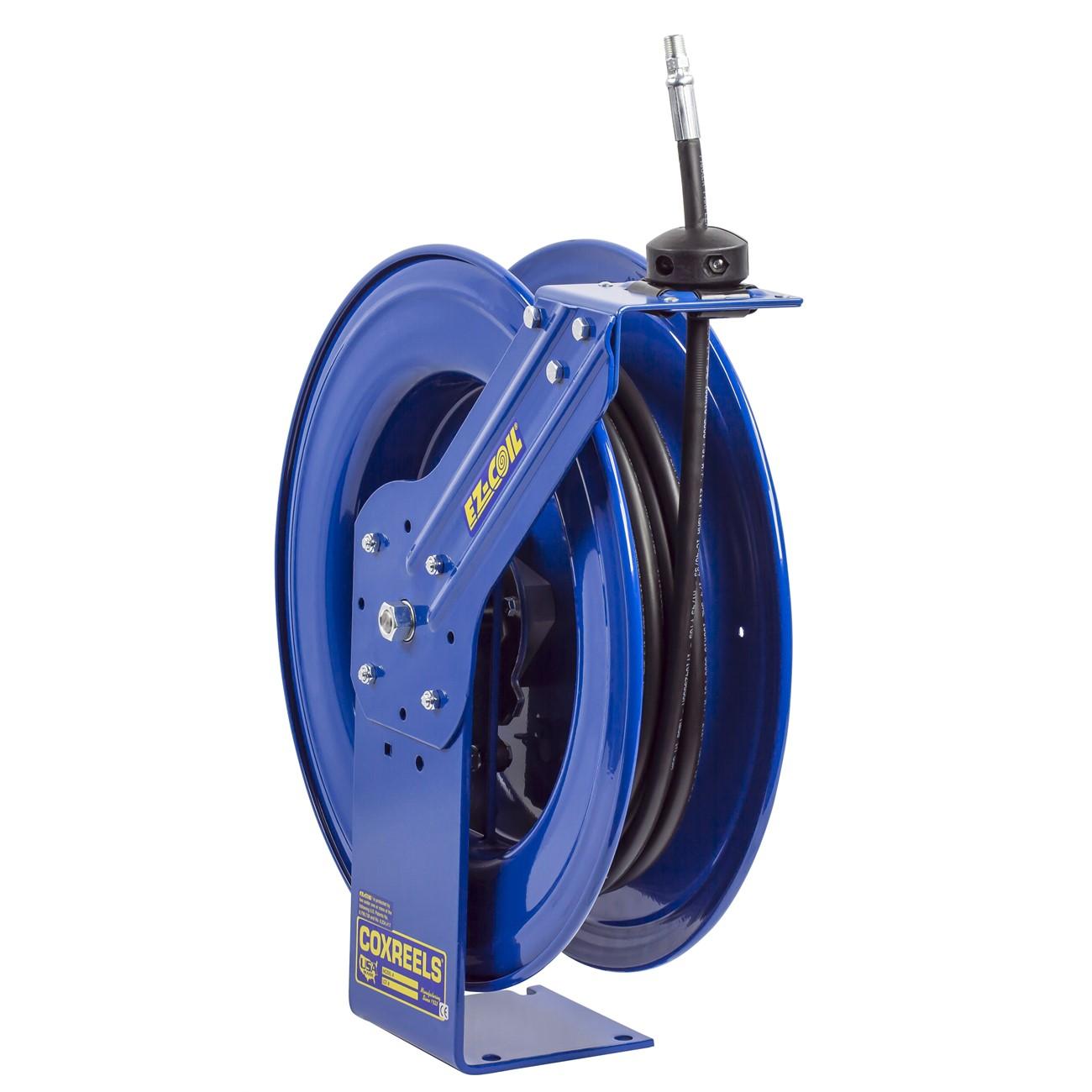

Coxreels EZ-HP-150 Spring Driven Hose Reel 50 Ft

Product Description

The COXREELS EZ-HP-150 is a spring-driven hose reel from the SH Series Super Hub line, built for demanding trade applications where controlled retraction and structural durability are required. The reel uses Coxreels patented EZ-Coil system, which retracts hose up to 80% slower than conventional spring-driven reels, reducing snap-back risk on the job. The larger SH Series chassis accommodates longer hose lengths and larger hose diameters compared to standard P Series units. A dual axle Super Hub support system stabilizes the reel during operation and reduces vibration. It accepts 1/4 inch ID hose and is rated for up to 50 feet of hose length.

This reel is suited for professional use in automotive service, industrial maintenance, construction, and fleet vehicle applications. The multi-position guide arm allows mounting to walls, floors, ceilings, or vehicles, making it adaptable to fixed shop installations or mobile service rigs. Licensed trades and service contractors handling compressed air, water, or compatible fluid lines will find the enclosed spring cartridge and field-serviceable swivel practical for high-frequency daily use. The single-pedestal steel base keeps the footprint compact without sacrificing stability.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts hose up to 80% slower than conventional reels for improved operator safety
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Super Hub dual axle support system reduces vibration and increases structural stability during retraction
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges protect hose and improve operator safety
• Solid one-piece steel base with no-weld single pedestal construction for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, or vehicle mounting
• CPC powder coat finish provides chip resistance and rust inhibition; permanently lubricated precision bearings included

Compatibility

Designed for use with 1/4 inch ID hose up to 50 feet in length. Consult Coxreels application guidelines to confirm fluid compatibility and pressure rating for the intended hose and service type.

Installation Notes

Installation is typically performed by a qualified mechanic, plumber, or industrial maintenance technician depending on the fluid service involved. Shut off and depressurize the supply line completely before connecting or disconnecting the reel. Ensure the mounting surface is rated to support the reel weight and the dynamic load of retraction. Follow applicable OSHA and local facility safety codes for hose reel placement and clearance requirements.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 9/16 inch
• Maximum Hose Length: 50 feet
• Spring Drive: EZ-Coil enclosed cartridge, self-retracting
• Swivel Type: 90-degree full-flow NPT, zinc-plated steel
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 64 pounds
• Finish: CPC powder coat
• UPC: 674255723818

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-HP-150
