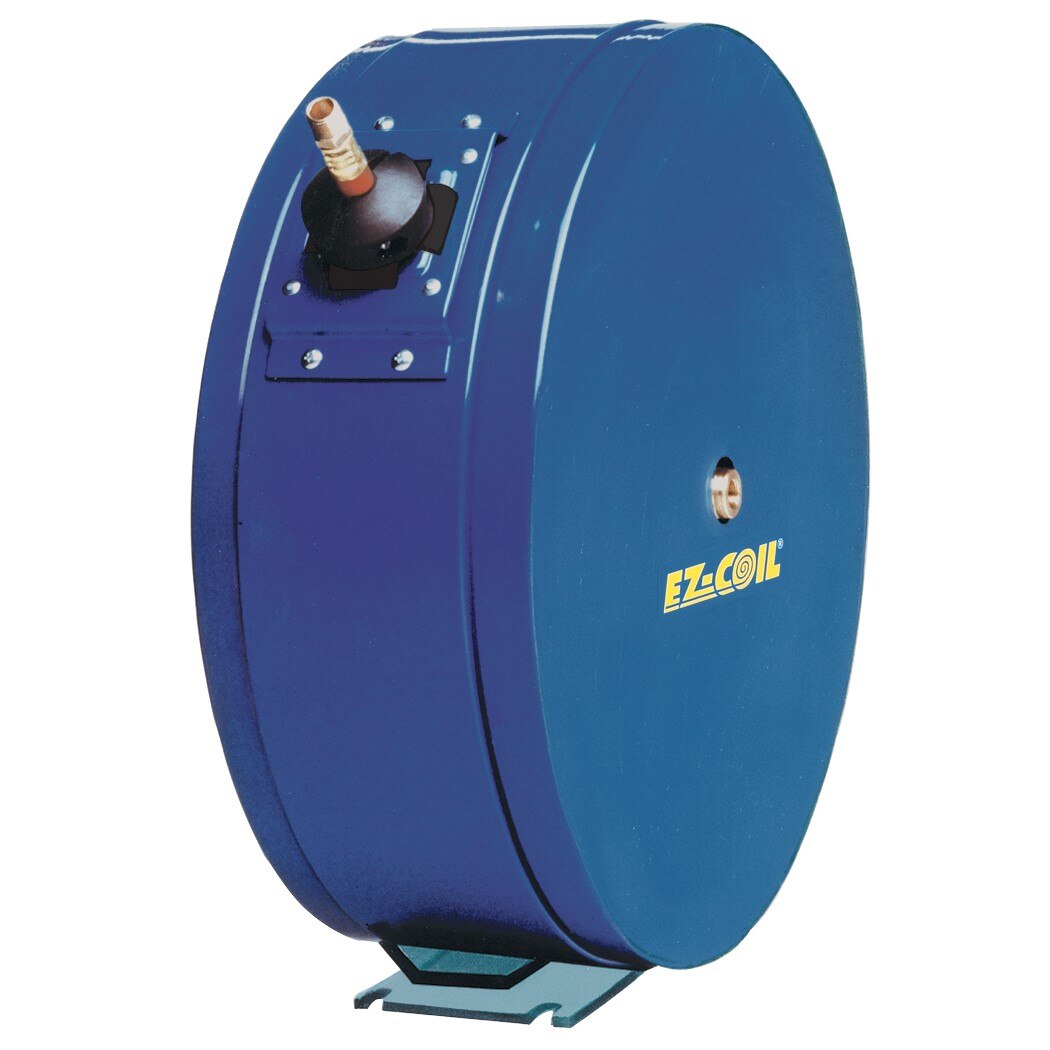

Coxreels EZ-ENM-325 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS EZ-ENM-325 is an enclosed, spring-driven hose reel built for trade environments that require a clean, professional appearance alongside reliable daily performance. The reel houses a 3/8 inch inner diameter hose path with a 25-foot hose capacity inside a heavy-gauge, powder-coated steel 3-piece casing that protects internal components from dust, moisture, and mechanical damage. The EZ-Coil spring motor is a lubricated, cartridge-style unit that retracts hose up to 80 percent slower than conventional spring reels, reducing snap-back hazards on the job. At 61 pounds, the unit is a substantial, fixed-mount reel intended for permanent or semi-permanent installation in shops, service bays, and fleet maintenance facilities. Licensed contractors and industrial maintenance technicians are the primary installers.

The EZ-ENM-325 is suited for air and fluid delivery applications in commercial and industrial settings where both functionality and workspace appearance matter. The enclosed casing keeps hose and internal hardware protected in environments with airborne debris, chemical exposure, or strict visual standards. The adjustable hose roller guide and multi-position lock ratchet mechanism support controlled hose positioning at a fixed work point, making this reel appropriate for service bays, manufacturing floors, and professional detail or maintenance operations requiring repeatable hose placement.

Key Features

• EZ-Coil cartridge spring motor retracts hose up to 80 percent slower than conventional reels, reducing snap-back risk
• Heavy-gauge steel 3-piece casing with CPC powder coat finish resists chips, rust, and corrosion
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for increased strength and hose protection
• Solid one-piece steel base with no-weld single pedestal design and dual axle support for maximum stability
• Adjustable solid rubber hose stop, adjustable hose roller guide, and lubricated precision bearings included

Compatibility

Designed as an OEM-style enclosed spring-driven hose reel for permanent or semi-permanent mounting in commercial and industrial air and fluid delivery applications. Accepts 3/8 inch inner diameter hose up to 25 feet in length.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air or fluid distribution systems. Shut off and bleed down all pressure in the supply line before connecting or servicing the reel. Mount to a structurally sound surface capable of supporting the loaded weight of the reel, hose, and fluid. The 3-piece casing is designed for straightforward disassembly, allowing access to the spring motor cartridge and swivel for routine maintenance without removing the entire unit from its mount.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Outer Diameter: 11/16 inch
• Hose Capacity: 25 feet
• Unit Weight: 61 pounds
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Casing Material: Heavy-gauge steel with CPC powder coat finish
• Swivel Material: Solid brass
• Drive Type: Spring driven, enclosed EZ-Coil cartridge motor
• UPC: 674255724457

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-ENM-325
