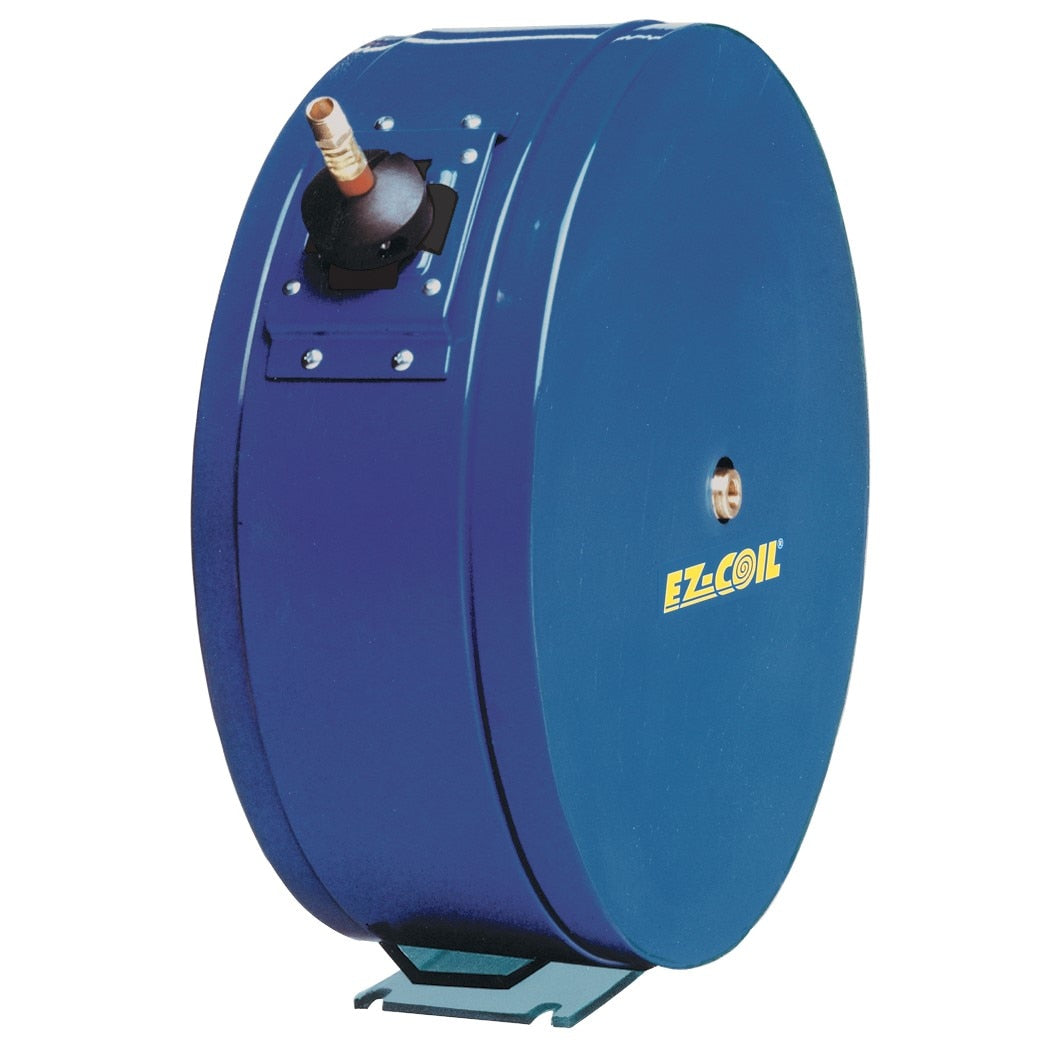

Coxreels EZ-ENHL-350 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS EZ-ENHL-350 is an enclosed, spring-driven hose reel designed for trade and industrial environments where hose protection, appearance, and reliable retraction are priorities. The reel is housed in a heavy-gauge, powder-coated steel three-piece casing that shields internal components from contaminants, moisture, and physical damage. The EZ-Coil spring motor is a lubricated, cartridge-style unit that retracts hose up to 80 percent slower than conventional spring reels, reducing snap-back hazards for technicians. CNC robotically spun and ribbed steel discs with rolled edges add structural strength and protect hose from abrasion during operation. This reel is installed by HVAC technicians, plumbers, and general mechanical contractors in shops, service bays, and field vehicles.

The EZ-ENHL-350 suits applications requiring a 3/8 inch ID hose in lengths up to 50 feet. The enclosed casing makes it well suited for clean professional environments including service shops, commercial facilities, and mobile service units where an exposed reel would be unacceptable. The adjustable hose roller guide and multi-position lock ratchet mechanism allow precise hose positioning across a wide range of task scenarios. The three-piece casing is designed for straightforward removal and reinstallation, supporting routine maintenance without taking the unit off its mount.

Key Features

• EZ-Coil cartridge spring motor retracts up to 80 percent slower than conventional reels, reducing snap-back risk
• Heavy-gauge steel three-piece enclosure with CPC powder coat finish resists chips, rust, and environmental exposure
• CNC robotically spun, ribbed steel discs with rolled edges for hose protection and structural durability
• Zinc-plated steel 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Solid one-piece steel base with single pedestal and no-weld support post for maximum stability
• Multi-position lock ratchet mechanism and lubricated precision bearings included

Compatibility

Designed for use with 3/8 inch ID, 11/16 inch OD hose up to 50 feet in length. Intended as a direct-fit unit within the COXREELS EZ-EN enclosed spring-driven hose reel series.

Installation Notes

Installation is performed by qualified mechanical or HVAC service technicians. Shut off all fluid supply and relieve line pressure completely before mounting or servicing the reel. The cartridge spring motor is removable without dismounting the reel from its bracket, simplifying maintenance. Follow applicable OSHA and facility safety guidelines when working with pressurized hose assemblies.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 11/16 inches
• Hose Length: 50 feet
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 68 pounds
• Casing Material: Heavy-gauge steel with CPC powder coat finish
• Base Material: Solid one-piece steel
• Swivel Material: Zinc-plated steel
• UPC: 674255724624

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-ENHL-350
