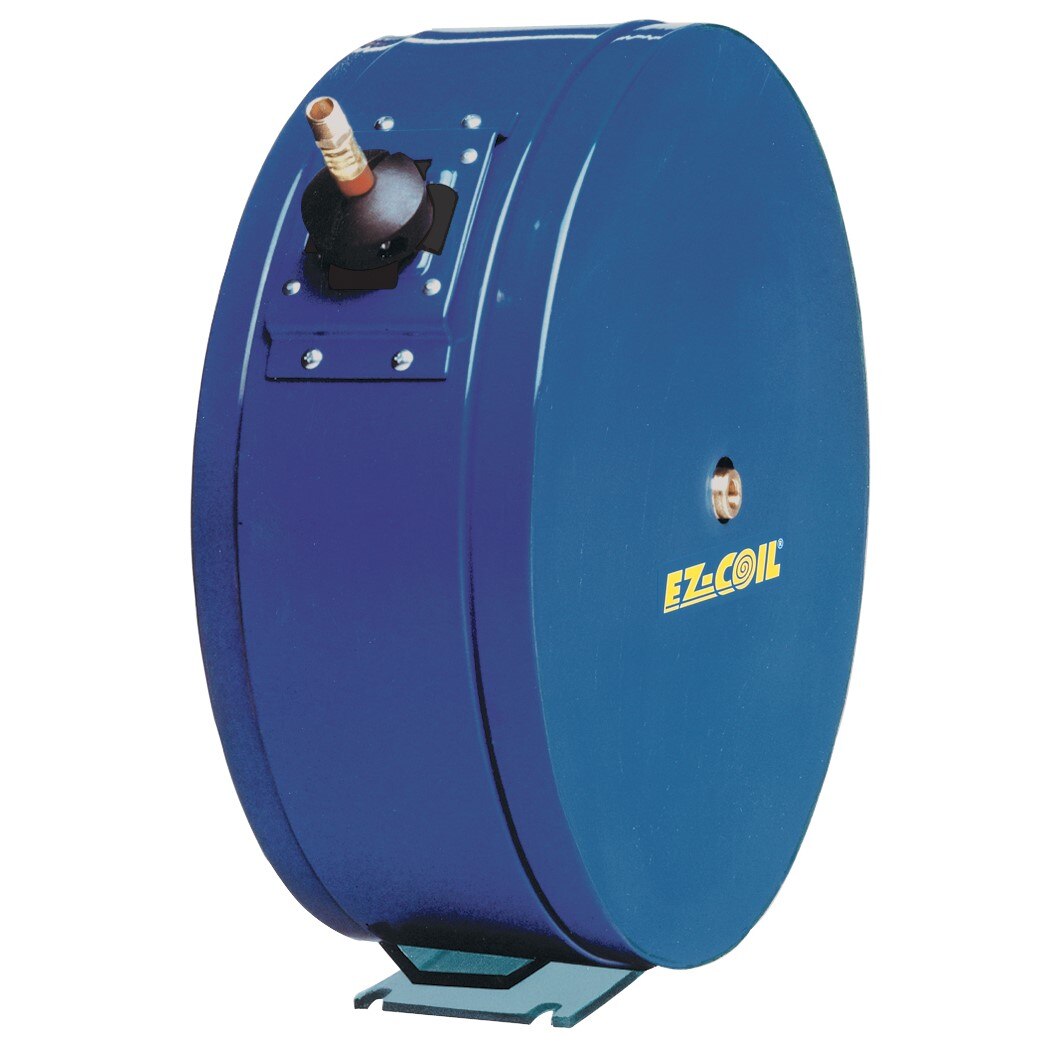

Coxreels EZ-ENHL-125 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS EZ-ENHL-125 is an enclosed, spring-driven hose reel designed for trade environments where hose protection, reel longevity, and a clean installation appearance all matter. The reel features a heavy-gauge, powder-coated steel three-piece casing that shields internal components from dust, debris, and moisture. The EZ-Coil spring motor is a lubricated, cartridge-style unit that retracts the hose at up to 80 percent slower than conventional spring-driven reels, reducing snap-back risk during retraction. The unit accepts 1/4-inch ID hose up to 25 feet in length. Licensed technicians and service professionals in industrial, automotive, and commercial facility environments install this reel where a durable, self-retracting hose management solution is required.

The EZ-ENHL-125 is suited for compressed air, fluid, or similar low-pressure hose applications in shops, service bays, and commercial facilities where a neat, enclosed hose reel is preferred. The three-piece casing assembles and disassembles without special tooling, making mounting and periodic maintenance straightforward. An adjustable hose roller guide is included to manage hose routing at the outlet. This reel is appropriate for single-station installations on walls, ceilings, or floor-mounted pedestals where the 20.5 x 10.5 x 22-inch footprint can be accommodated.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts hose up to 80 percent slower than conventional reels for improved operator safety
• Heavy-gauge steel three-piece casing with CPC powder coat finish resists chips, rust, and environmental exposure
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows seal service and hose replacement without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for hose protection and structural durability
• Multi-position lock ratchet mechanism holds hose at any extended length
• Single-pedestal, no-weld steel base with dual-axle Exclusive Super Hub support system for maximum stability

Compatibility

Designed as an OEM-style enclosed spring-driven hose reel replacement or new installation unit for 1/4-inch ID hose assemblies up to 25 feet in compressed air or fluid service applications.

Installation Notes

Installation is typically performed by a qualified technician or maintenance professional. Shut off and depressurize the air or fluid supply line completely before connecting or disconnecting hose or swivel fittings. Mount the reel to a structurally adequate surface using fasteners appropriate for the substrate and load. Verify that the hose material and fittings are rated for the intended working pressure and fluid type before placing the reel in service.

Technical Specifications

• Hose ID: 1/4 inch
• Hose Length: 25 feet
• Drive Type: Spring driven
• Casing: Enclosed heavy-gauge steel with CPC powder coat finish
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 54 pounds
• Swivel Material: Zinc-plated steel
• UPC: 674255724600

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-ENHL-125
