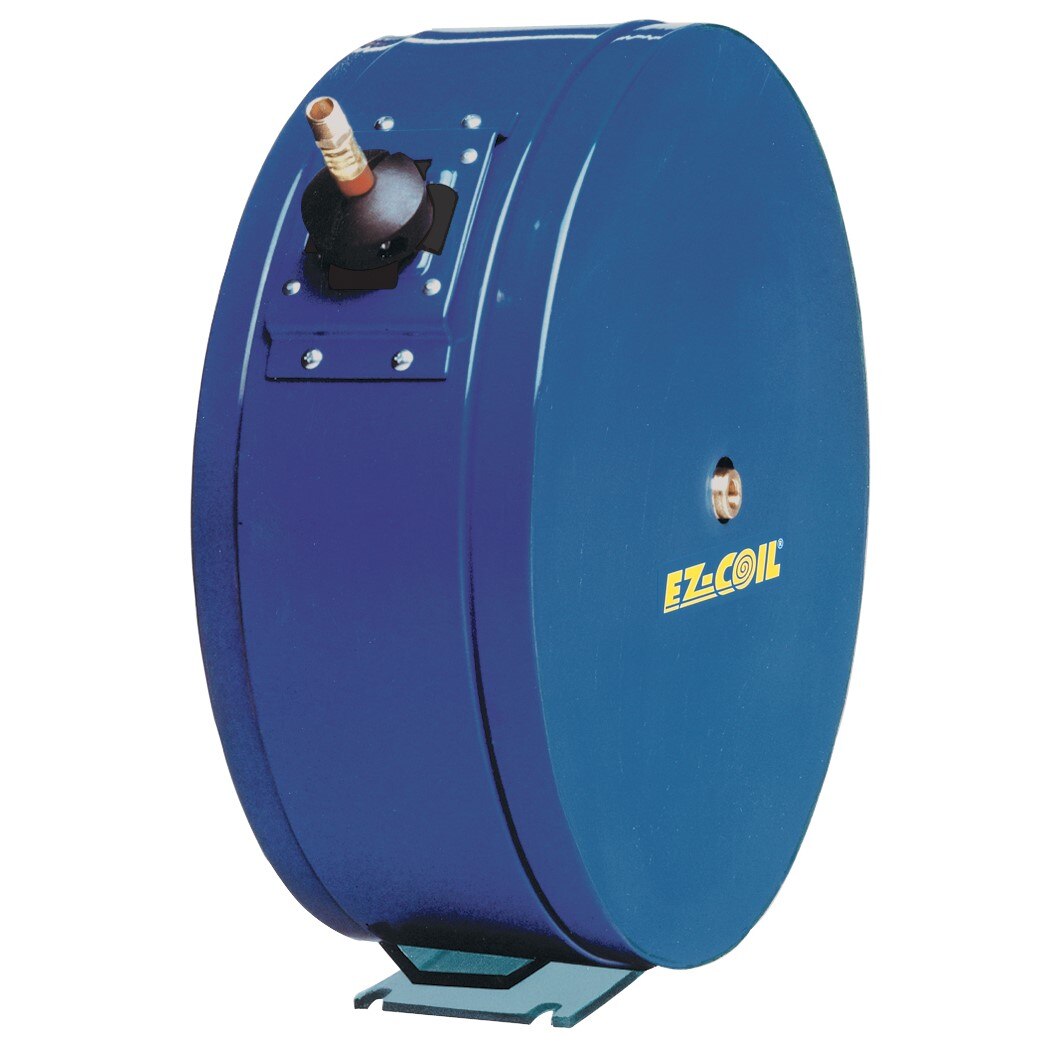

Coxreels EZ-ENH-350 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS EZ-ENH-350 is an enclosed, spring-driven hose reel from the EZ-EN Series, designed for trade and industrial environments where hose management, durability, and a clean appearance all matter. The reel accepts 3/8-inch ID hose up to 50 feet and is housed inside a heavy-gauge, powder-coated steel 3-piece casing that protects the internal components from dirt, moisture, and physical damage. The EZ-COIL spring motor is a patented system that retracts hose up to 80 percent slower than conventional reels, reducing snap-back hazards during retraction. This reel is installed by HVAC technicians, plumbers, and general service professionals who need a reliable, wall- or pedestal-mounted hose management solution.

The EZ-ENH-350 is suited for service bays, utility rooms, workshops, and field service vehicles where a tidy, professional appearance is required alongside reliable hose retraction. The enclosed casing shields the reel and hose from environmental exposure, making it appropriate for both indoor and covered outdoor installations. The adjustable hose roller guide and multi-position lock ratchet mechanism allow the operator to position and hold the hose at a desired length without additional hardware. Typical applications include compressed air, water, and light fluid delivery in commercial and light industrial settings.

Key Features

• EZ-COIL patented spring motor retracts hose up to 80 percent slower than conventional reels, reducing snap-back risk
• Heavy-gauge steel 3-piece casing with CPC powder coat finish resists chips, rust, and corrosion
• Zinc-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose changes without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Solid one-piece steel base and support post with no-weld construction and dual axle support for maximum stability
• Adjustable solid rubber hose stop, multi-position lock ratchet mechanism, and lubricated precision bearings included

Compatibility

Designed as an OEM-style replacement or new-install option for spring-driven enclosed hose reel applications requiring 3/8-inch ID hose up to 50 feet in length.

Installation Notes

Installation is typically performed by qualified service technicians or mechanical contractors. Shut off the supply line and depressurize the hose before mounting or servicing the reel. The 3-piece casing is designed for straightforward assembly and disassembly to simplify access during installation and maintenance. Follow applicable OSHA and facility safety guidelines when mounting overhead or in high-traffic areas.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 11/16 inches
• Hose Length Capacity: 50 feet
• Drive Type: Spring driven
• Casing Material: Heavy-gauge powder-coated steel
• Finish: CPC powder coat, chip resistant, rust inhibiting
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 80 pounds
• UPC: 674255724518

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-ENH-350
