Coxreels EZ-EN-425 Enclosed Spring Driven Hose Reel

Product Description

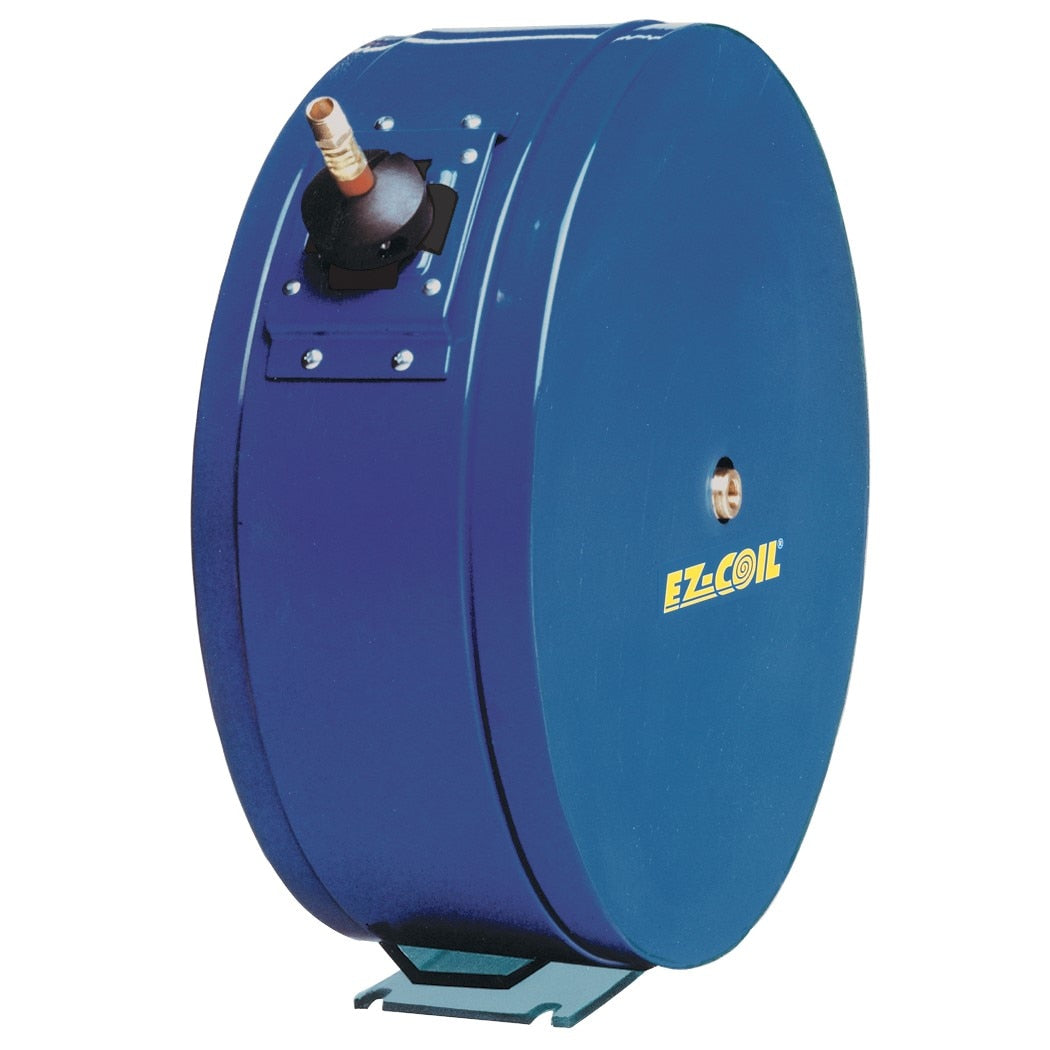

The COXREELS EZ-EN-425 is an enclosed, spring-driven hose reel built for trade environments where hose protection and a clean installation appearance are both required. The reel houses a lubricated, cartridge-style spring motor inside a heavy-gauge, powder-coated steel three-piece casing that shields internal components from dirt, moisture, and physical damage. Designed for 1/2-inch ID hose up to 25 feet in length, it features a machined solid-brass 90-degree full-flow NPT swivel and CNC robotically spun ribbed steel discs with rolled edges. At 63 pounds, it is a substantial, fixed-mount unit intended for professional installation in shops, service bays, and similar work environments.

The EZ-EN-425 fits applications where retractable hose management is needed alongside a tidy, enclosed aesthetic. Typical install scenarios include automotive service shops, industrial maintenance bays, fleet service facilities, and similar commercial or light-industrial settings. The three-piece casing is designed for straightforward assembly and disassembly, which simplifies both initial mounting and routine maintenance access. The adjustable hose roller guide accommodates different routing angles at the outlet, making it adaptable to varied mounting positions.

Key Features

• EZ-Coil spring motor retracts hose up to 80% slower than conventional spring reels, reducing snap-back and operator risk
• Cartridge-style spring motor is fully enclosed and removable without pulling the reel from its mount
• Machined solid-brass 90-degree full-flow NPT swivel allows hose installation and seal service without dismounting the reel
• CNC robotically spun and ribbed steel discs with rolled edges for structural strength and hose protection
• Solid one-piece steel base with single pedestal design and dual axle support — no welds at the base joint
• CPC powder-coat finish is chip-resistant and rust-inhibiting; includes adjustable solid-rubber hose stop and multi-position lock ratchet

Compatibility

Designed as an OEM-style enclosed spring-driven hose reel for 1/2-inch ID hose applications in commercial and industrial service environments.

Installation Notes

Installation is typically performed by a qualified mechanic or facilities maintenance technician. Before mounting, confirm the support structure can bear the combined weight of the reel and a fully loaded hose. Secure the steel base to a wall bracket, ceiling mount, or pedestal using hardware rated for the load. Route the inlet supply line only after the reel is fully mounted and all fittings are hand-tight and wrench-seated; do not pressurize until the swivel and supply connections have been inspected for leaks.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Length: 25 feet
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 63 pounds
• Casing Material: Heavy-gauge powder-coated steel
• Swivel Material: Solid brass
• Drive Type: Spring driven
• UPC: 674255724433

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-EN-425
