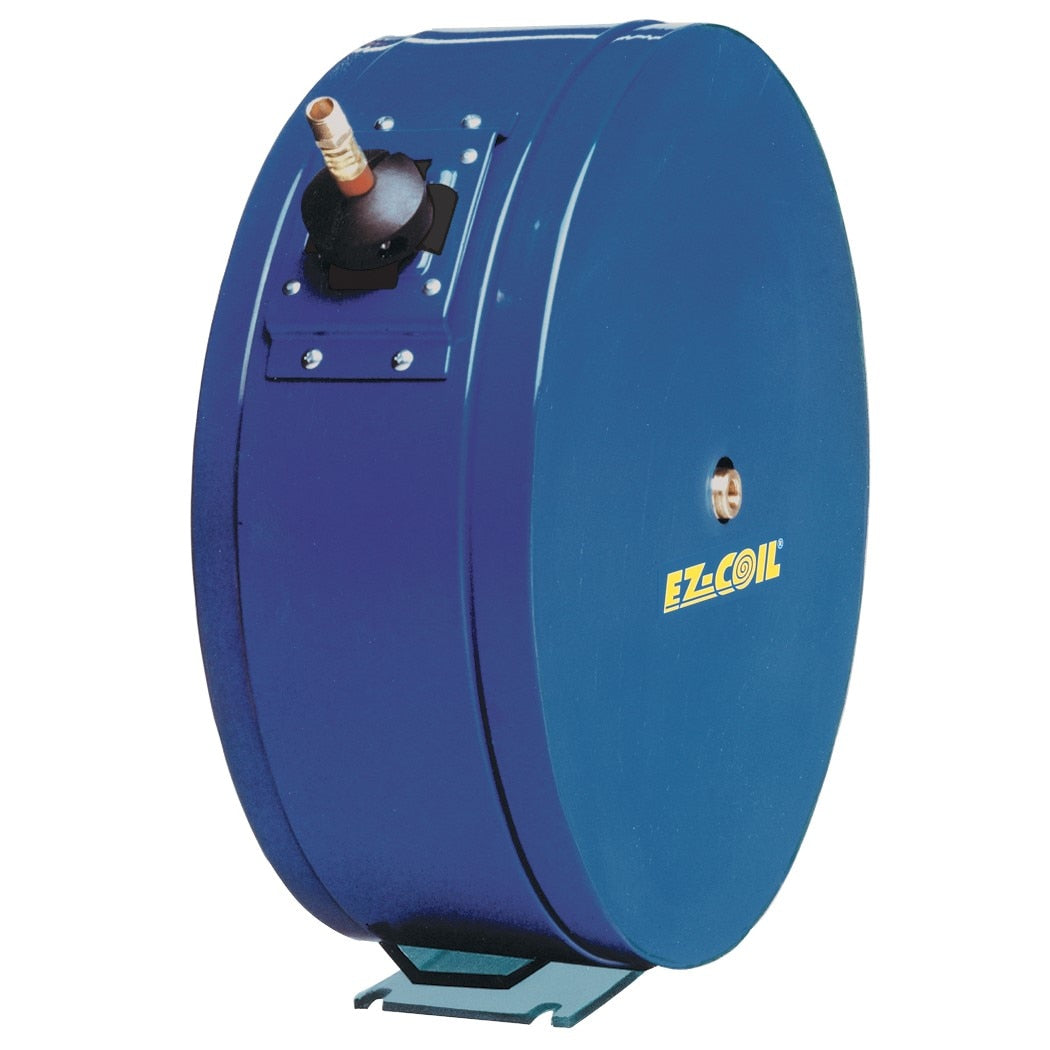

Coxreels EZ-EN-325 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS EZ-EN-325 is an enclosed, spring-driven hose reel built for trade environments where hose protection and a clean installation are priorities. Designed around a heavy-gauge powder-coated steel 3-piece casing, it shields the internal components, the reel discs, and the hose from dust, debris, and environmental exposure. The EZ-COIL spring motor is a cartridge-style unit that retracts hose up to 80% slower than conventional spring reels, reducing snap-back hazards on the job. The reel accepts 3/8-inch ID hose up to 25 feet in length and ships at 49 pounds. HVAC technicians, plumbers, and general service professionals install this unit wherever a tidy, wall- or bench-mounted hose station is required.

The EZ-EN-325 is suited for light industrial, commercial, and professional service shop applications. Its enclosed design makes it a practical choice in customer-facing environments such as service bays, mechanical rooms, and facilities maintenance areas where an exposed open-frame reel is not acceptable. The adjustable hose roller guide accommodates routing flexibility during installation, and the multi-position lock ratchet mechanism holds the hose at any extended length. The machined solid-brass 90-degree full-flow NPT swivel allows hose connection or replacement without removing the reel from its mount, simplifying routine service in tight spaces.

Key Features

• EZ-COIL enclosed cartridge spring motor retracts hose up to 80% slower than conventional reels, reducing snap-back risk
• Heavy-gauge steel 3-piece casing with CPC powder-coat finish resists chips, rust, and environmental exposure
• Machined solid-brass 90-degree full-flow NPT swivel supports hose maintenance without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges for structural strength and hose protection
• Single-pedestal, no-weld solid steel base with dual axle support for maximum mounting stability
• Adjustable solid-rubber hose stop and multi-position lock ratchet mechanism for controlled hose extension

Compatibility

Designed as an OEM-style enclosed spring-driven hose reel for 3/8-inch ID hose assemblies in professional service and light industrial installations.

Installation Notes

Installation is typically performed by a qualified service technician. Shut off the supply line and depressurize the hose assembly before mounting or performing any maintenance on the swivel or spring motor cartridge. The 3-piece casing is designed for straightforward disassembly, giving access to the spring cartridge without specialized tools. Follow applicable facility or local codes when mounting to walls or overhead structures to ensure the anchor hardware meets the load requirements for a 49-pound unit.

Technical Specifications

• Hose Inside Diameter: 3/8 inches
• Hose Outside Diameter: 5/8 inches
• Hose Length: 25 feet
• Drive Type: Spring driven
• Casing Material: Powder-coated steel
• Swivel Material: Solid brass
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 49 pounds
• UPC: 674255724419

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-EN-325
