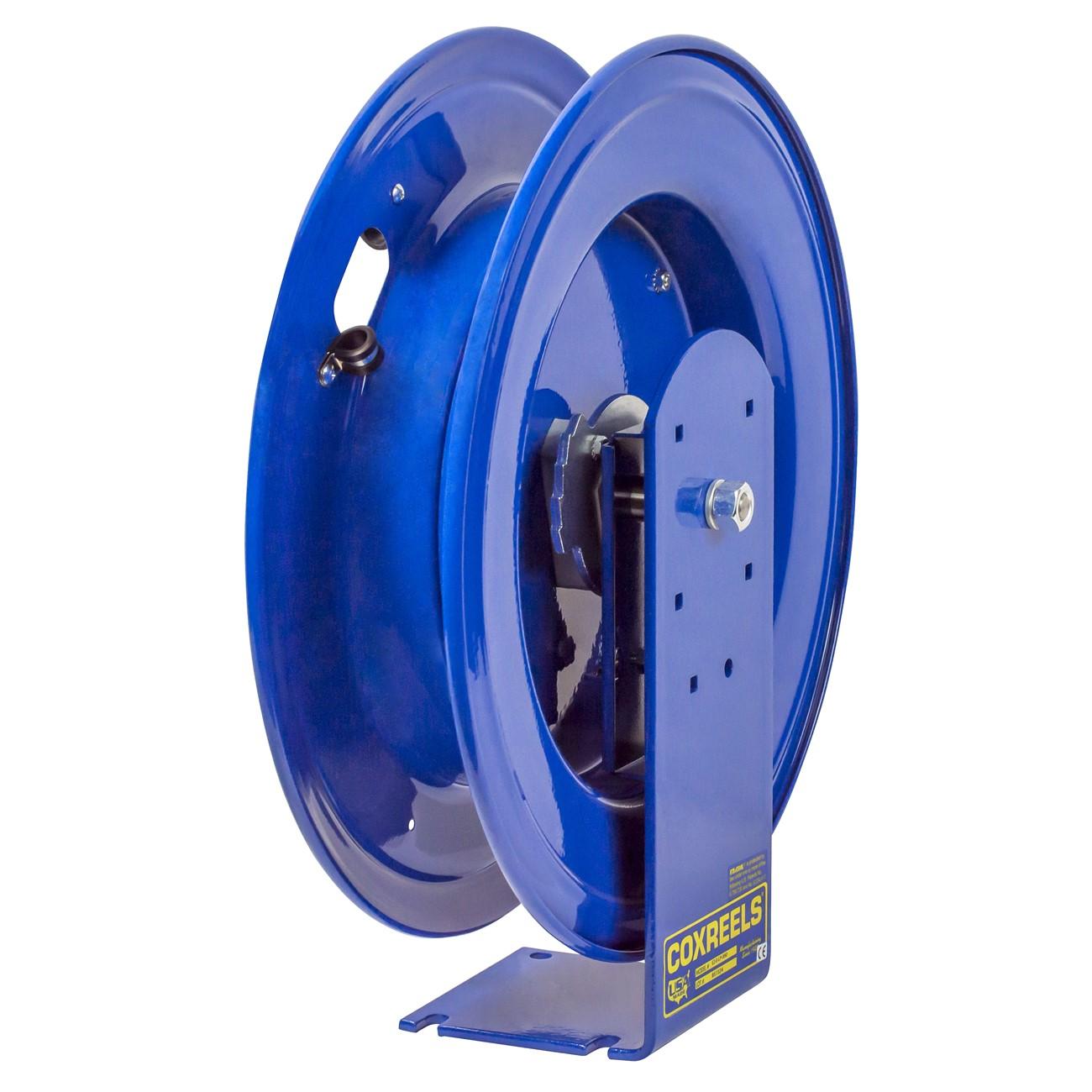

Coxreels EZ-E-MPL-450 Spring Rewind Hose Reel 50 Ft

Product Description

The COXREELS EZ-E-MPL-450 is a spring-rewind hose reel built for the E Series expandable multiple-bank cabinet system. It accepts 1/2-inch ID hose up to 50 feet and is engineered for professional multimedia delivery in service bays, fleet shops, and industrial facilities where multiple reels need to be mounted in a single organized enclosure. The reel features a patented EZ-Coil retraction motor that retracts up to 80 percent slower than conventional spring reels, reducing hose snap-back and operator injury risk. A machined brass 90-degree full-flow NPT swivel allows hose changes without removing the reel from its mount.

This reel is designed for installation inside COXREELS E Series interlocking metal cabinets, which can be expanded to accommodate any number of reel assemblies side by side. Typical applications include automotive service shops, truck fleet maintenance facilities, industrial manufacturing floors, and anywhere a multi-drop hose delivery system is required. The single-pedestal steel base with no-weld construction provides rigid mounting within the cabinet enclosure. Licensed mechanics, industrial maintenance technicians, and fleet service personnel are the primary installers of this system.

Key Features

• EZ-Coil enclosed cartridge motor retracts hose up to 80 percent slower than standard spring reels for improved operator safety
• Machined solid brass 90-degree full-flow NPT swivel allows hose replacement without dismounting the reel
• CNC robotically spun and ribbed steel discs with rolled edges for hose protection and structural durability
• Solid one-piece steel base and support post, no-weld construction, with dual axle support for maximum stability
• Multi-position lock ratchet mechanism holds hose at any extension length
• CPC powder coat finish resists chips, rust, and long-term corrosion in shop environments

Compatibility

Designed for use within the COXREELS E Series expandable interlocking metal cabinet bank system. The cabinet system accepts any number of E Series spring-driven reel assemblies and is intended for professional multi-reel multimedia delivery installations.

Installation Notes

Installation should be performed by a qualified mechanic or industrial maintenance technician familiar with pressurized hose reel systems. Shut off and depressurize the supply line before mounting or servicing the reel or swivel. Secure the cabinet enclosure to a structural wall or floor surface per the manufacturer mounting instructions before connecting any supply lines. Follow all applicable facility and local safety codes when routing pressurized fluid lines through the cabinet system.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Length: 50 feet
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 49 pounds
• Swivel Material: Solid brass
• Base Material: Steel
• Finish: CPC powder coat
• UPC: 674255730380

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-E-MPL-450
