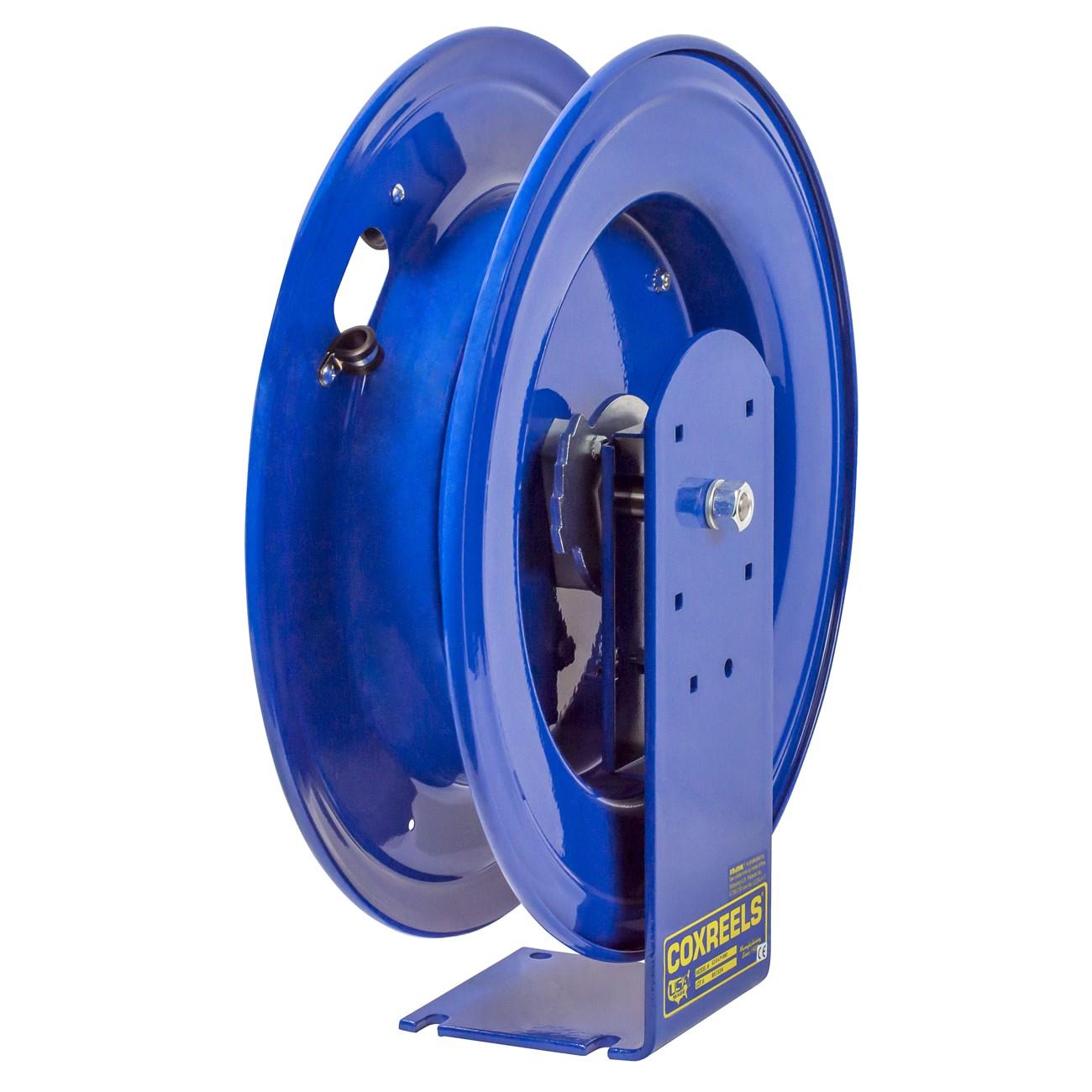

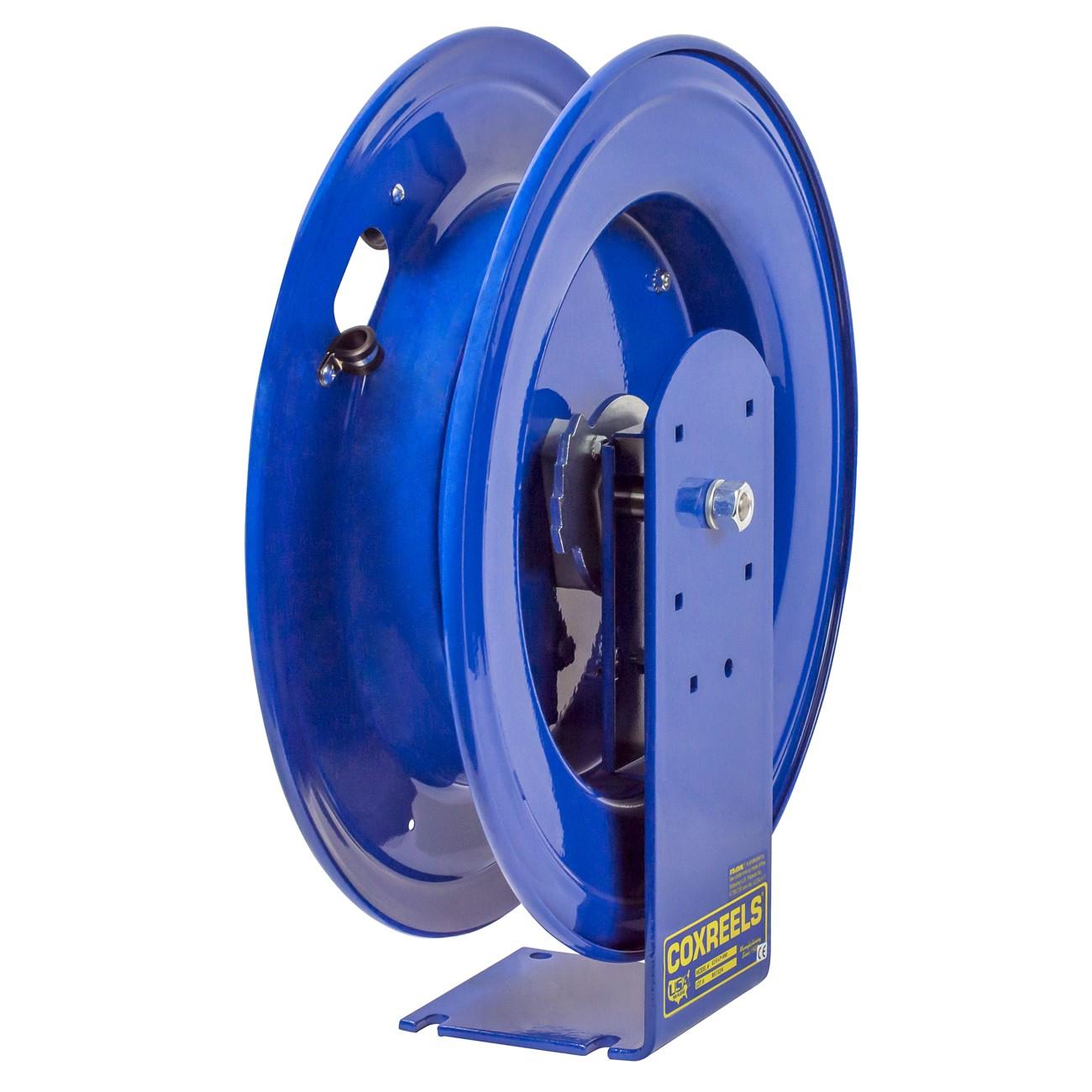

Coxreels EZ-E-MPL-430 Spring Retractable Hose Reel

Product Description

The COXREELS EZ-E-MPL-430 is a spring-driven retractable hose reel built for professional trade environments that demand organized, reliable fluid delivery. Designed as part of the EZ-E Series expandable bank system, this reel accepts a 1/2 inch ID, 3/4 inch OD hose up to 30 feet in length. The EZ-Coil spring motor is enclosed in a lubricated cartridge and retracts up to 80 percent slower than conventional reels, reducing snap-back hazards. Heavy-duty CNC robotically spun and ribbed discs with rolled edges provide structural strength and protect both the hose and the operator. HVAC technicians, plumbers, and shop maintenance crews are the primary installers.

The EZ-E-MPL-430 is suited for professional service bays, fleet maintenance facilities, and commercial or industrial installations where multiple reels must be deployed in a clean, consolidated layout. The interlocking and expandable metal cabinet design allows any number of spring-driven reel assemblies to be combined into a single bank system. This makes it a practical fit for multi-bay shops or service trucks requiring multimedia fluid delivery from one organized mounting station.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts up to 80 percent slower than conventional reels for improved operator safety
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for increased strength, durability, and hose protection
• Solid one-piece steel base and single pedestal support post with no-weld construction for maximum stability
• Exclusive Super Hub dual axle support system for added structural rigidity
• Expandable interlocking metal cabinet design supports multiple reel bank configurations
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes multi-position lock ratchet and lubricated precision bearings

Compatibility

Designed as part of the COXREELS EZ-E Series expandable bank system, compatible with interlocking EZ-E Series cabinet enclosures and spring-driven reel assemblies requiring 1/2 inch ID hose connections.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting and fluid delivery systems. Shut off all supply lines and depressurize the system before connecting or disconnecting hose fittings. Secure the reel to a structurally sound mounting surface using appropriate fasteners rated for the unit weight. Follow all applicable facility safety codes and manufacturer torque guidelines for NPT fittings.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Length: 30 feet
• Spring Motor Type: EZ-Coil enclosed cartridge, spring-driven
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Base Material: Steel, one-piece no-weld construction
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 39 pounds
• UPC: 674255730373

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-E-MPL-430
