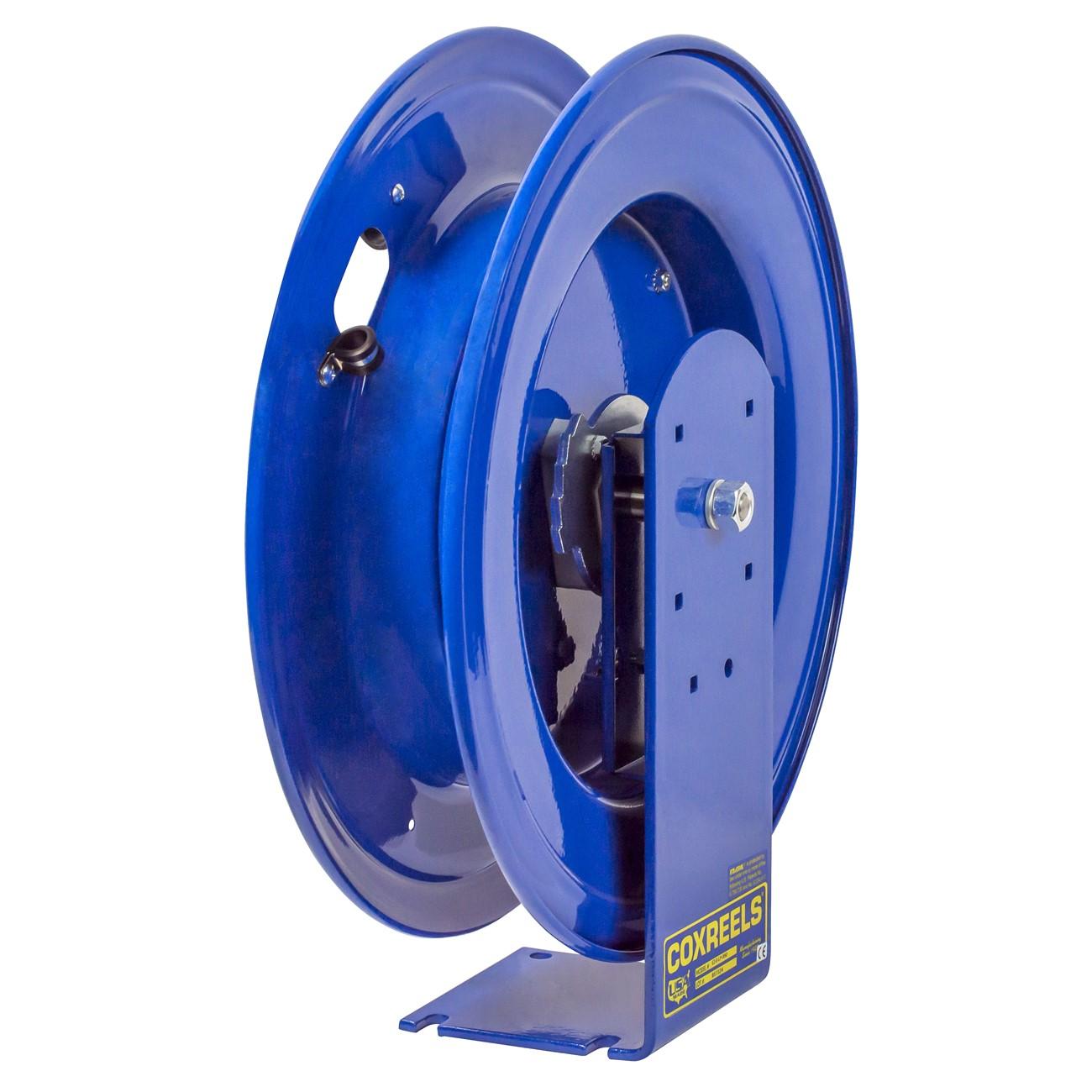

Coxreels EZ-E-MPL-350 Spring Rewind Hose Reel 50 Ft

Product Description

The COXREELS EZ-E-MPL-350 is a spring-driven hose reel built for the EZ-E series expandable multiple-bank cabinet system. Designed for professional service environments, it accepts 3/8 inch ID hose up to 50 feet in length and retracts using Coxreels patented EZ-Coil motor, which slows retraction speed by up to 80 percent compared to conventional spring reels. The unit rides on precision lubricated bearings and features a multi-position lock ratchet mechanism. A machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount. HVAC technicians, plumbers, and industrial service professionals install this reel where organized, multi-line hose delivery is required.

The EZ-E-MPL-350 is intended for installation within the COXREELS E Series interlocking expandable metal cabinet system. Cabinets can be configured to house any number of spring-driven reel assemblies side by side, supporting multimedia fluid or air delivery from a single organized station. This reel is well suited to commercial service bays, mechanical rooms, and fleet maintenance facilities where multiple hose drops are needed at one location. Its single-pedestal steel base and no-weld support post provide a stable mount inside the cabinet enclosure.

Key Features

• EZ-Coil enclosed cartridge-style spring motor retracts up to 80 percent slower than conventional reels for operator safety
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and structural strength
• Solid one-piece steel base and support post, no-weld construction, for maximum stability inside cabinet enclosures
• Designed for expandable interlocking metal cabinet bank systems supporting multiple reel assemblies
• CPC powder coat finish is chip-resistant and rust-inhibiting for long service life in demanding environments

Compatibility

Designed for use within the COXREELS E Series expandable interlocking metal cabinet multiple-bank reel system. Accepts 3/8 inch ID, 5/8 inch OD hose up to 50 feet in length.

Installation Notes

Installation is performed by qualified service technicians familiar with spring-driven reel assemblies. Depressurize and bleed down the supply line before connecting or disconnecting hose fittings. The EZ-Coil cartridge motor is removable for maintenance without disassembling the full reel. Follow the cabinet manufacturer mounting instructions and verify that the supply line inlet connection matches the NPT swivel fitting before pressurizing the system.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Outer Diameter: 5/8 inch
• Hose Length Capacity: 50 feet
• Spring Drive: EZ-Coil enclosed cartridge motor
• Swivel: Solid brass 90-degree full-flow NPT
• Disc Construction: CNC robotically spun and ribbed steel with rolled edges
• Base Construction: Solid one-piece steel, no-weld single pedestal
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 49 pounds
• Sold As: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-E-MPL-350
