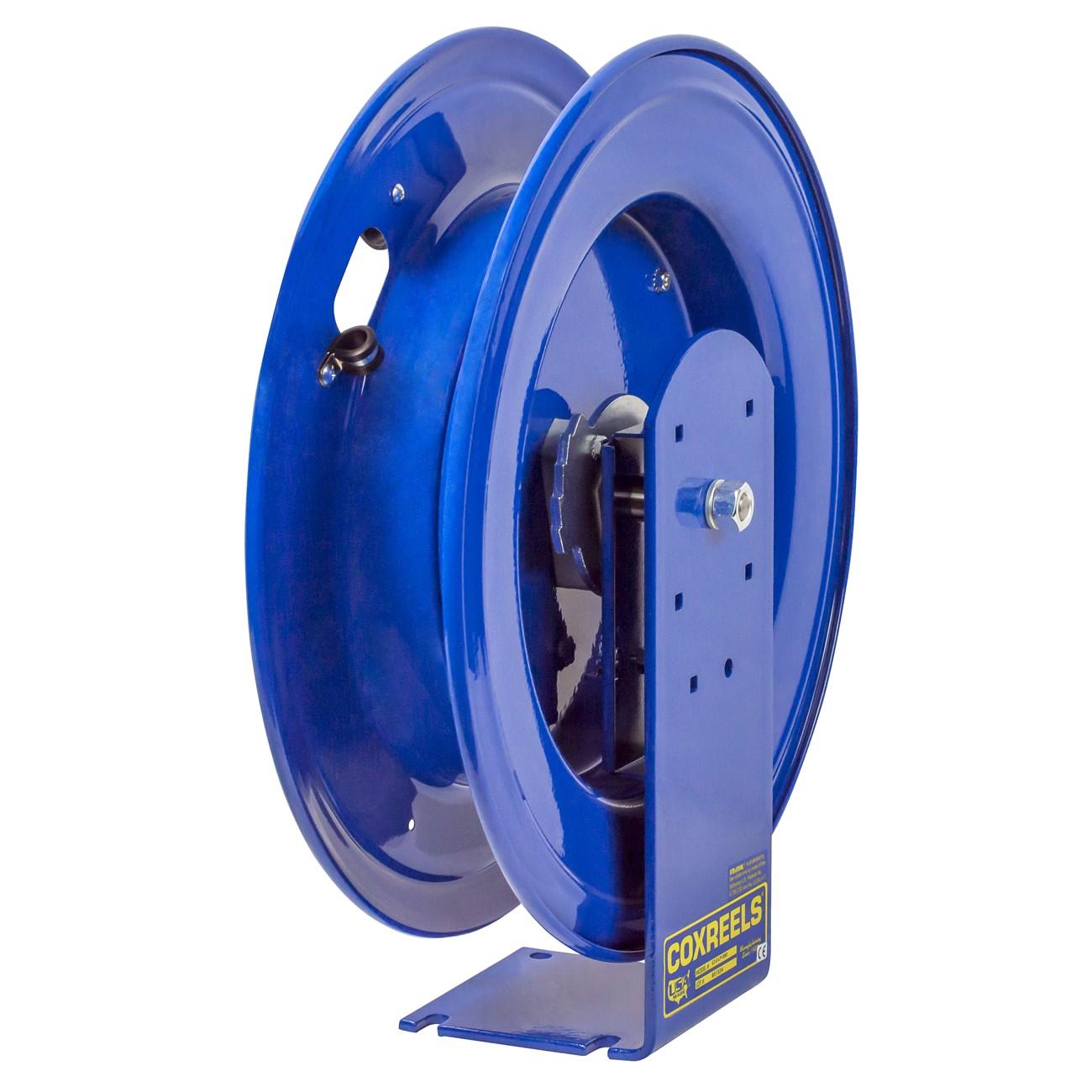

Coxreels EZ-E-MPL-330 Spring Rewind Hose Reel 30 Ft

Product Description

The COXREELS EZ-E-MPL-330 is a spring-rewind hose reel built for professional trade environments that require organized, multi-point fluid delivery. Part of the COXREELS E Series expandable cabinet system, this reel accepts 3/8 inch ID hose up to 30 feet in length and retracts hose at a controlled rate using the EZ-Coil patented safety motor. The enclosed, lubricated cartridge-style spring motor retracts hose up to 80 percent slower than conventional spring reels, reducing hose whip and operator risk. The unit is finished in a CPC powder coat that resists chipping and rust, making it well-suited for shop, service bay, and industrial installation environments where durability and appearance both matter.

The EZ-E-MPL-330 is designed for use in expandable multiple-reel bank cabinet systems, allowing any number of spring-driven reel assemblies to be interlocked into a single organized installation. Typical applications include automotive service shops, fleet maintenance facilities, and industrial work cells where air, oil, coolant, or similar media are delivered from a centralized overhead or wall-mounted distribution point. Licensed technicians and facility maintenance professionals handle installation. The pedestal-style steel base supports single-unit floor or wall anchoring and integrates directly into the COXREELS E Series interlocking cabinet enclosures.

Key Features

• EZ-Coil patented spring motor retracts hose up to 80 percent slower than conventional reels for safer controlled retraction
• Enclosed lubricated cartridge-style motor is removable for maintenance without removing the reel from its mount
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges provide strength, durability, and hose protection
• Single-pedestal steel base with one-piece support post and no-weld construction for maximum stability
• Expandable interlocking cabinet design supports multi-reel bank configurations for organized professional installations
• Multi-position lock ratchet mechanism and lubricated precision bearings included

Compatibility

Designed for use within the COXREELS E Series expandable interlocking cabinet multiple-reel bank system. Compatible with 3/8 inch ID hose up to 30 feet in length.

Installation Notes

Installation is typically performed by qualified maintenance technicians or licensed tradespeople. Shut off and depressurize the supply line before connecting or disconnecting hose or swivel fittings. Anchor the base securely to a floor or wall surface capable of supporting the loaded reel weight. Follow applicable facility safety codes and manufacturer torque guidelines for fluid fittings when making supply connections.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 5/8 inch
• Hose Capacity: 30 feet
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 39 pounds
• Spring Motor Type: EZ-Coil enclosed lubricated cartridge
• Swivel Material: Solid brass
• Base Material: Steel
• Finish: CPC powder coat, chip resistant and rust inhibiting
• UPC: 674255730359

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-E-MPL-330
