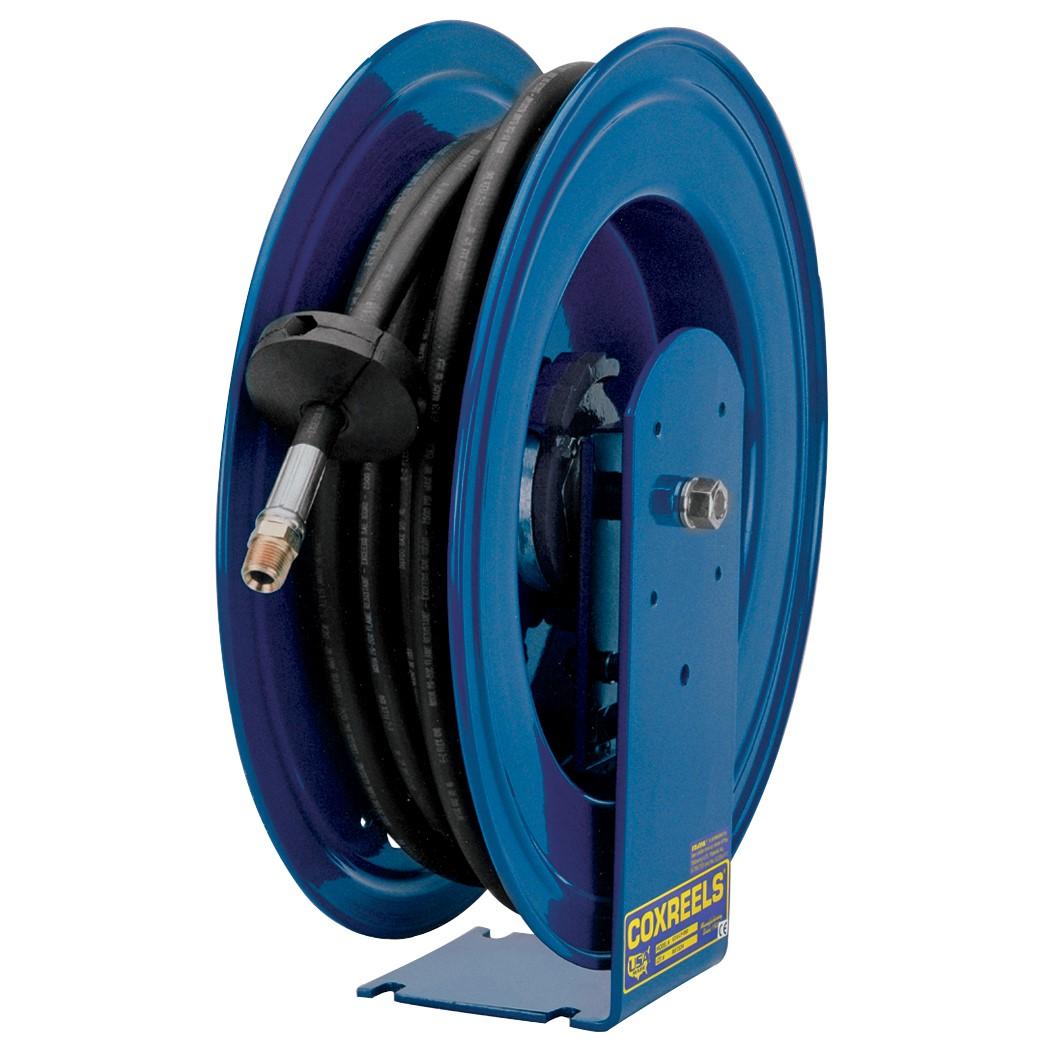

Coxreels EZ-E-MP-450 Spring Rewind Hose Reel 50 Ft

Product Description

The COXREELS EZ-E-MP-450 is a spring-rewind hose reel built for professional multi-bay service environments. Part of the EZ-E Series, it accepts 1/2 inch ID hose up to 50 feet and is engineered for expandable, interlocking cabinet bank systems. The reel features Coxreels patented EZ-Coil retraction motor, which slows rewind speed up to 80 percent compared to conventional spring reels, reducing hose snap-back and operator injury risk. CNC robotically spun and ribbed steel discs with rolled edges provide structural rigidity and protect hose at the drum edge. Licensed HVAC, plumbing, and mechanical contractors install this reel in fixed service bays, lube centers, and fleet maintenance facilities.

The EZ-E-MP-450 is designed for fixed overhead or wall-mount installation as part of an expandable multiple-reel bank cabinet system. The interlocking enclosures allow any number of reel assemblies to be combined into a single organized, professional-grade media delivery station. The unit ships as a single reel assembly intended for integration into the E Series cabinet system. It is suited for air, water, oil, and other compatible fluid delivery in commercial and industrial service applications where organized hose management and retraction safety are priorities.

Key Features

• EZ-Coil enclosed cartridge-style spring motor retracts up to 80 percent slower than conventional reels for operator safety
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• 1/4 inch solid one-piece steel base and single pedestal support post, no-weld construction, with dual axle support
• Expandable interlocking metal cabinet design supports multiple reel bank configurations
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop, multi-position lock ratchet, and lubricated precision bearings

Compatibility

Designed for use within the COXREELS E Series expandable interlocking cabinet bank system; compatible with 1/2 inch ID hose up to 50 feet in length.

Installation Notes

Installation should be performed by a qualified technician familiar with fixed hose reel mounting and the applicable fluid or compressed-air system being served. Shut off and depressurize the supply line before connecting to the swivel inlet. Secure the mounting base to a structurally adequate surface capable of supporting the reel, hose, and fluid load. Follow all applicable OSHA, ANSI, and local facility safety requirements for pressurized fluid delivery equipment.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Capacity: 50 feet
• Retraction Type: Spring rewind (EZ-Coil)
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Disc Construction: CNC spun ribbed steel with rolled edges
• Base Material: 1/4 inch solid steel, no-weld single pedestal
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 62 pounds
• UPC: 674255730267

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-E-MP-450
