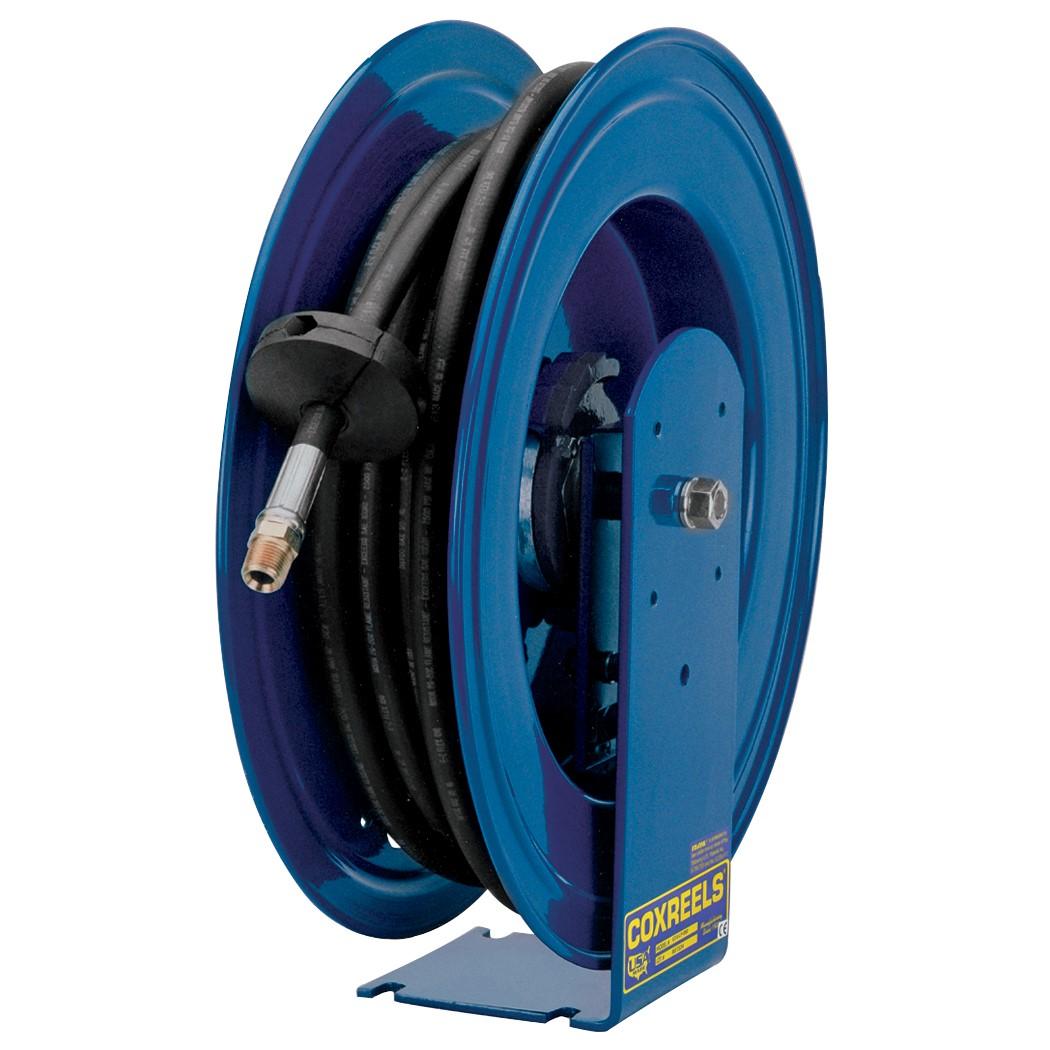

Coxreels EZ-E-MP-350 Spring Retractable Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS EZ-E-MP-350 is a spring-driven retractable hose reel built for professional shop and service bay installations. Designed as part of the EZ-E Series expandable bank system, it accepts 3/8 inch ID hose up to 50 feet in length and retracts at a controlled rate using Coxreels patented EZ-Coil technology, which slows retraction speed up to 80 percent compared to conventional spring reels. The reel mounts on a solid one-piece steel base with a single pedestal support post requiring no welding. A machined brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount. This unit is intended for installation by professional HVAC technicians, mechanics, and industrial service personnel.

The EZ-E-MP-350 fits into the EZ-E Series interlocking cabinet system, which can be expanded to accommodate any number of spring-driven reel assemblies side by side. This makes it well suited for multi-bay service facilities, fleet maintenance shops, and professional service environments that require organized, centralized delivery of air, water, oil, or other compatible media through a single custom enclosure. The cabinet design creates a uniform, professional appearance while keeping multiple reels accessible and serviceable from a single location.

Key Features

• EZ-Coil patented spring motor retracts hose up to 80 percent slower than standard reels for controlled, safe retraction
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without dismounting the reel
• Lubricated, enclosed cartridge-style spring motor is removable for maintenance without full disassembly
• CNC robotically spun and ribbed steel discs with rolled edges for hose protection and structural durability
• Solid one-piece steel base with single pedestal support post, no-weld construction, for maximum stability
• CPC powder coat finish resists chipping and rust; includes adjustable rubber hose stop and multi-position lock ratchet mechanism

Compatibility

Designed for use with 3/8 inch ID hose up to 50 feet and is compatible with the COXREELS EZ-E Series interlocking expandable cabinet and multiple reel bank systems.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air, fluid, or applicable media distribution systems. Shut off and depressurize the supply line before connecting or servicing the reel or swivel assembly. Secure the base mount to a stable surface rated for the load, and verify swivel inlet thread compatibility with the supply fitting before final connection. Follow all applicable facility and local codes governing the media being delivered through the reel.

Technical Specifications

• Hose Inside Diameter: 3/8 inches
• Hose Outside Diameter: 5/8 inches
• Hose Length Capacity: 50 feet
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 61 pounds
• Base Material: Steel
• Finish: CPC Powder Coat
• Swivel Material: Solid Brass
• Spring Motor: Lubricated Enclosed Cartridge Style
• UPC: 674255730243

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-E-MP-350
