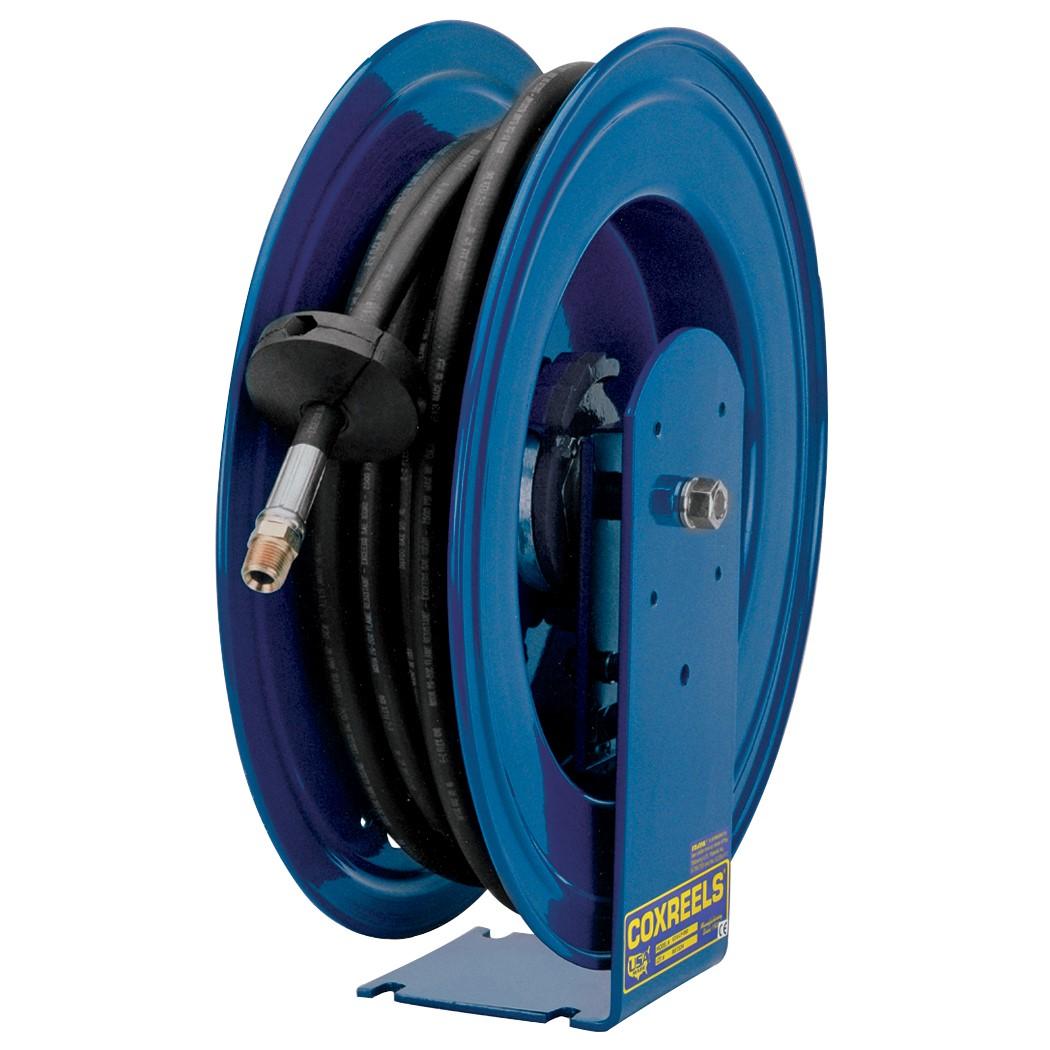

Coxreels EZ-E-MP-330 Spring Rewind Hose Reel 3/8 in 30 Ft

Product Description

The COXREELS EZ-E-MP-330 is a spring-driven retractable hose reel built for professional multi-bay service environments. Part of the EZ-E series, it accepts 3/8 inch ID, 5/8 inch OD hose up to 30 feet and retracts using Coxreels' patented EZ-Coil system, which slows retraction speed by up to 80 percent compared to conventional spring reels. The unit is designed for installation within interlocking, expandable metal cabinets, making it a core component of organized, multi-reel bank systems. Licensed trades in automotive, industrial, and shop-maintenance settings depend on this reel for reliable hose management and consistent fluid or air delivery at a fixed workstation.

The EZ-E-MP-330 is suited for fixed-station installations in commercial garages, service bays, and industrial facilities where multiple reels must be housed in a single organized cabinet array. The expandable cabinet design allows additional reel assemblies to be added as service demands grow. Its single-pedestal steel base and dual-axle hub support make it appropriate for permanent wall or bench mounting. Typical applications include air, water, and other compatible media delivery lines routed to service bays or production floors.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts up to 80 percent slower than conventional reels for operator safety and hose longevity
• Solid brass 90-degree full-flow NPT swivel machined from bar stock for simple seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for increased strength, durability, and hose protection
• One-piece 1/4 inch steel base and support post with no-weld construction and exclusive dual-axle hub support for maximum stability
• Designed for expandable interlocking metal cabinet bank systems to support multi-reel professional installations
• CPC powder coat finish with chip resistance and rust inhibition; includes adjustable solid rubber hose stop, multi-position lock ratchet, and lubricated precision bearings

Compatibility

Designed as an OEM-style component for the COXREELS EZ-E expandable multiple-bank cabinet system; compatible with interlocking EZ-E series cabinet assemblies requiring 3/8 inch ID hose reel assemblies.

Installation Notes

Installation is typically performed by a qualified mechanic or industrial maintenance technician. Shut off and depressurize the supply line before connecting or disconnecting the swivel inlet. The reel should be securely mounted to a structural wall, ceiling, or bench surface rated to support the assembly weight plus loaded hose. Follow applicable OSHA and local facility safety codes for compressed-air or fluid delivery system installations.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Hose Capacity: 30 feet
• Retraction Type: Spring driven
• Swivel Material: Solid brass
• Swivel Angle: 90 degrees
• Base Material: 1/4 inch steel
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 47 pounds
• UPC: 674255730236

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-E-MP-330
