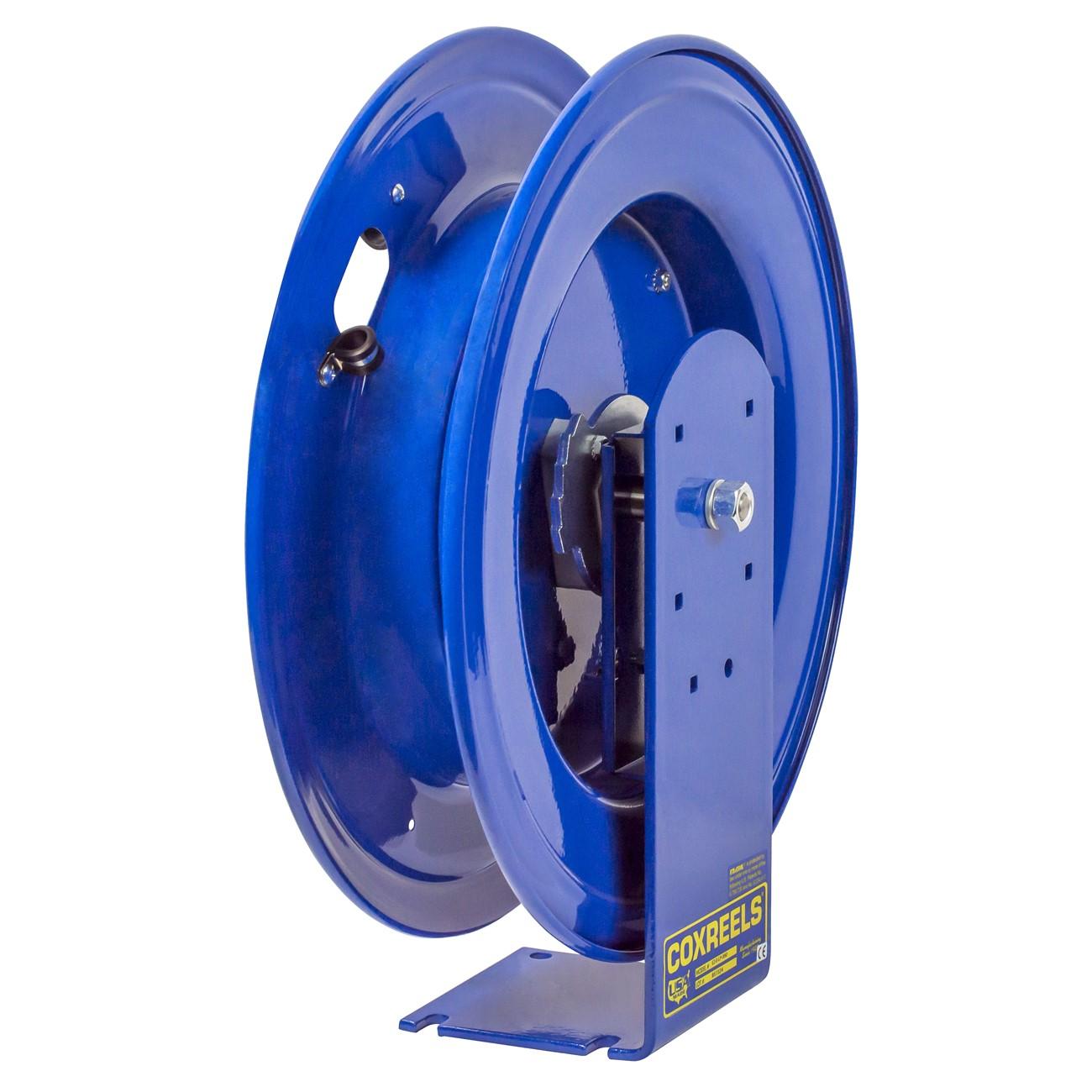

Coxreels EZ-E-LPL-450 Spring Rewind Hose Reel 50 Ft

Product Description

The COXREELS EZ-E-LPL-450 is a spring-driven, EZ-Coil equipped hose reel built for professional multimedia delivery in demanding trade environments. Part of the COXREELS E Series expandable bank system, it accepts 1/2 inch ID, 3/4 inch OD hose up to 50 feet in length. The EZ-Coil motor is a lubricated, enclosed cartridge design that retracts hose up to 80 percent slower than conventional spring reels, reducing snap-back risk on the job. The reel weighs 42 pounds and measures 20.5 inches long by 10.5 inches wide by 22 inches tall. Licensed HVAC, plumbing, and general mechanical contractors specify this unit for fixed service bay and fleet vehicle installations.

The EZ-E-LPL-450 is designed for use in expandable metal cabinet bank configurations, allowing multiple spring-driven reel assemblies to be joined in a single interlocking enclosure. This makes it well suited for professional service shops, fleet maintenance bays, and commercial service trucks where multiple fluid or air delivery lines are managed from one organized station. The expandable cabinet system allows technicians to add reel assemblies as service requirements grow, without replacing the existing infrastructure.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts hose up to 80 percent slower than standard reels for improved operator safety
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and structural durability
• 1/4 inch steel single-pedestal base with one-piece no-weld support post and exclusive Super Hub dual axle support system
• Designed for interlocking expandable metal cabinet bank systems to accommodate multiple reel assemblies
• CPC powder coat finish is chip resistant and rust inhibiting; includes multi-position lock ratchet mechanism and lubricated precision bearings

Compatibility

Designed as an OEM-style component for the COXREELS E Series expandable bank system; compatible with 1/2 inch ID, 3/4 inch OD hose up to 50 feet in length.

Installation Notes

Installation is typically performed by a licensed mechanical or plumbing contractor familiar with hose reel mounting and fluid delivery systems. Shut off and depressurize all supply lines before mounting or servicing the reel. The swivel and EZ-Coil cartridge motor are serviceable in place without removing the reel from its mount. Follow applicable local mechanical codes and the manufacturer instructions for cabinet bank assembly sequencing.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Length Capacity: 50 feet
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 42 pounds
• Drive Type: Spring rewind (EZ-Coil)
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Base Material: Steel (1/4 inch)
• Finish: CPC powder coat, chip resistant and rust inhibiting
• UPC: 674255730342

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-E-LPL-450
