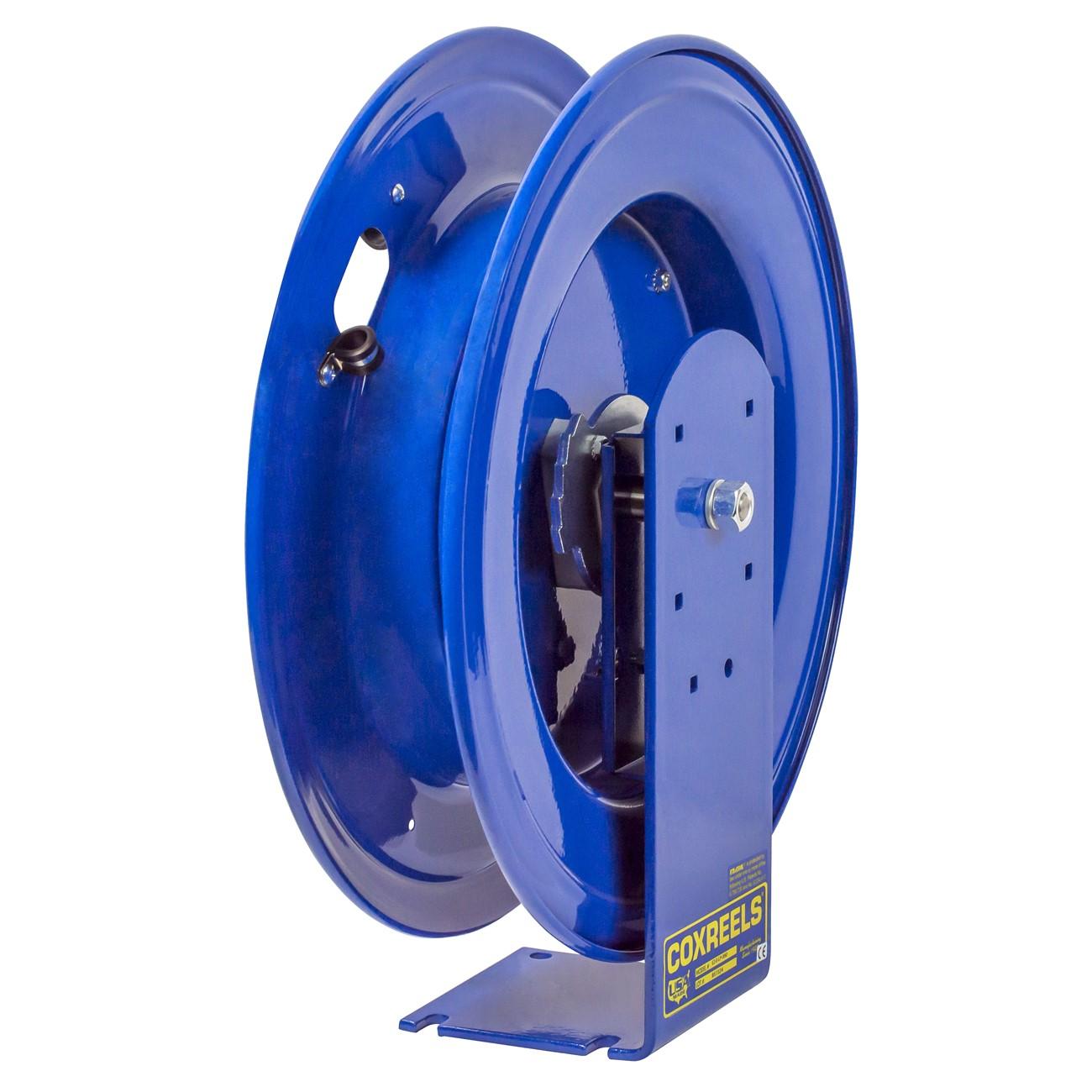

Coxreels EZ-E-LPL-430 Spring Retractable Hose Reel

Product Description

The COXREELS EZ-E-LPL-430 is a spring-driven retractable hose reel designed for low-pressure lubricant delivery in professional shop and service environments. Built around Coxreels EZ-Coil safety retraction system, this reel retracts up to 80% slower than conventional spring reels, reducing snap-back risk for technicians. The reel accepts 1/2 inch ID hose with a 3/4 inch OD and accommodates up to 30 feet of hose. A machined solid brass 90-degree full-flow NPT swivel allows hose connection and maintenance without removing the reel from its mount. Licensed HVAC technicians, automotive service techs, and lube room operators are the primary installers and end users of this equipment.

The EZ-E-LPL-430 fits into the Coxreels E Series expandable bank cabinet system, which is designed for multi-reel installations requiring a uniform, organized appearance. Individual reel assemblies mount inside interlocking metal cabinets that can be expanded to any number of reels needed for a service bay or utility room. This makes the unit a practical choice for commercial garages, fleet maintenance shops, and industrial service facilities where multiple fluid delivery lines must be managed at a single station.

Key Features

• EZ-Coil enclosed cartridge-style spring motor retracts up to 80% slower than conventional reels for improved operator safety
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Solid one-piece steel base and support post with no-weld single pedestal design and Exclusive Super Hub dual axle support
• Compatible with E Series expandable interlocking metal cabinet bank systems for multi-reel installations
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes multi-position lock ratchet and lubricated precision bearings

Compatibility

Designed for use within the Coxreels E Series expandable multiple-bank cabinet system; individual reel assemblies are interchangeable within that system for scalable multi-reel installations.

Installation Notes

Installation is typically performed by a qualified maintenance technician or journeyman mechanic familiar with fluid delivery systems. Shut off all fluid supply pressure to the line before mounting or connecting the reel. Secure the mounting base to a structural surface rated for the combined weight of the reel, hose, and fluid load. Follow all applicable facility safety codes for lubricant handling when routing and connecting supply lines.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Length Capacity: 30 feet
• Retraction Type: Spring-driven EZ-Coil
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Base Material: Steel, one-piece no-weld construction
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 36 pounds
• UPC: 674255730335

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-E-LPL-430
