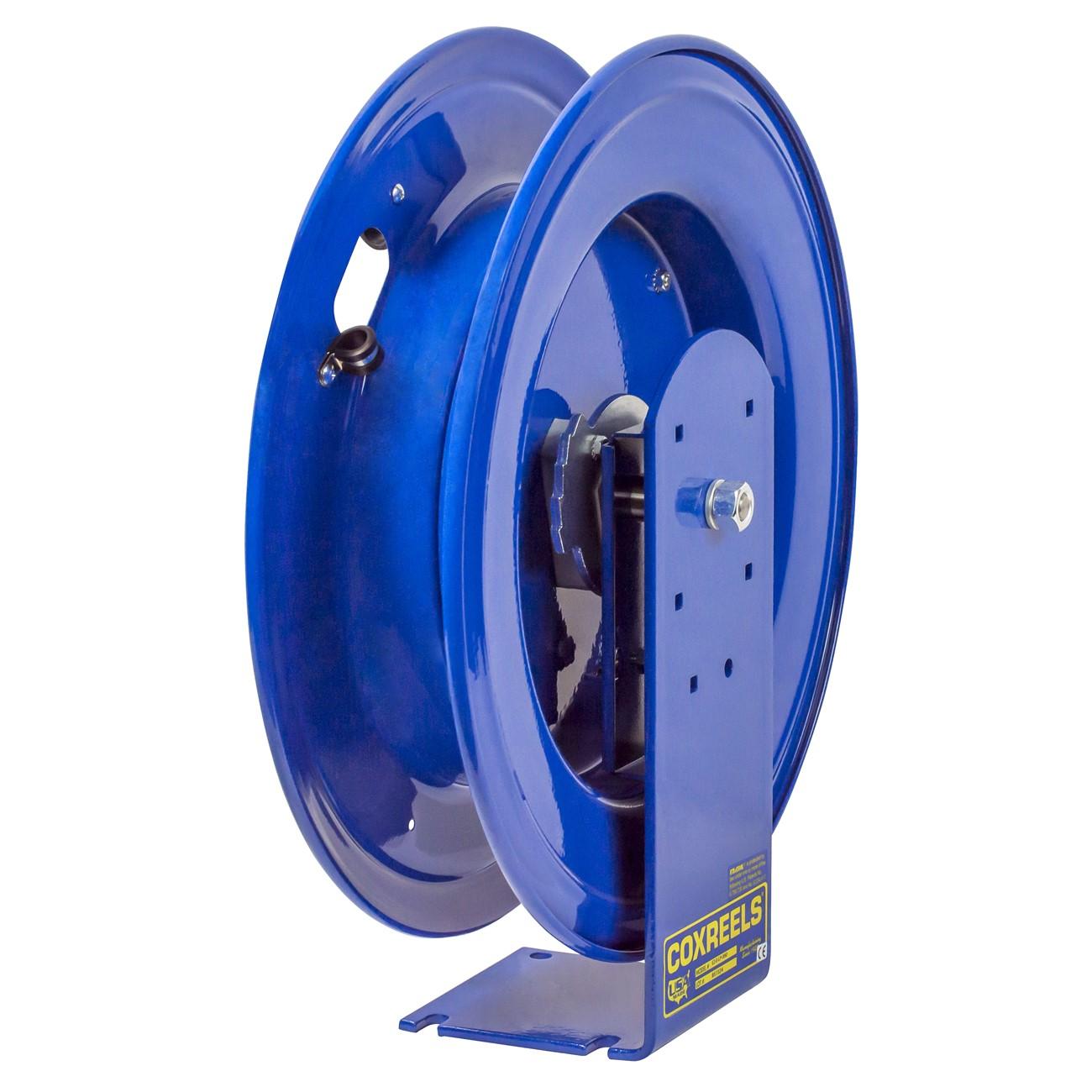

Coxreels EZ-E-LPL-330 Hose Reel 3/8 in 30 Ft Spring Retractable

Product Description

The COXREELS EZ-E-LPL-330 is a spring-driven retractable hose reel from the E Series expandable bank system, designed for professional multimedia delivery in service bays, fleet shops, and industrial workstations. It accepts hose with a 3/8 inch inner diameter and 5/8 inch outer diameter, with a 30-foot hose capacity. The EZ-COIL spring motor is a lubricated, enclosed cartridge design that retracts the hose up to 80 percent slower than conventional spring reels, reducing snap-back hazards during daily use. The unit ships at 29 pounds and measures 20.5 inches long, 10.5 inches wide, and 22 inches tall.

This reel is built for fixed installation in professional service environments where organized, repeatable hose management is required. The E Series cabinet system is interlocking and expandable, allowing multiple reel assemblies to be mounted together in a single bank for a clean, organized appearance. Typical applications include compressed air, lubrication fluid, and low-pressure liquid delivery lines in automotive shops, dealerships, and industrial maintenance facilities. A licensed mechanic or facilities technician handles installation in most commercial settings.

Key Features

• EZ-COIL enclosed cartridge spring motor retracts up to 80 percent slower than conventional reels, reducing snap-back risk
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• CNC robotically spun and ribbed steel discs with rolled edges for hose protection and structural durability
• Single pedestal base constructed from one-piece steel with no welds, featuring dual axle support via the Exclusive Super Hub system
• Expandable interlocking metal cabinet design supports multi-reel bank configurations
• CPC powder coat finish is chip-resistant and rust-inhibiting; multi-position lock ratchet mechanism and lubricated precision bearings included

Compatibility

Designed as an OEM-style replacement and direct-fit component within the COXREELS E Series expandable bank reel system, accepting hose with 3/8 inch ID and 5/8 inch OD up to 30 feet in length.

Installation Notes

Installation is typically performed by a qualified mechanic or industrial maintenance technician. Mount the reel securely to a wall, ceiling, or pedestal structure rated for the combined weight of the unit and hose before connecting the supply line. Shut off and depressurize the fluid or air supply line before making any swivel or inlet connections. Follow applicable facility and local codes for compressed air or fluid distribution line installation.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Outer Diameter: 5/8 inch
• Hose Capacity: 30 feet
• Spring Motor Type: EZ-COIL enclosed lubricated cartridge, spring-driven
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Base Construction: One-piece steel, single pedestal, no weld
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 29 pounds
• UPC: 674255730311

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-E-LPL-330
