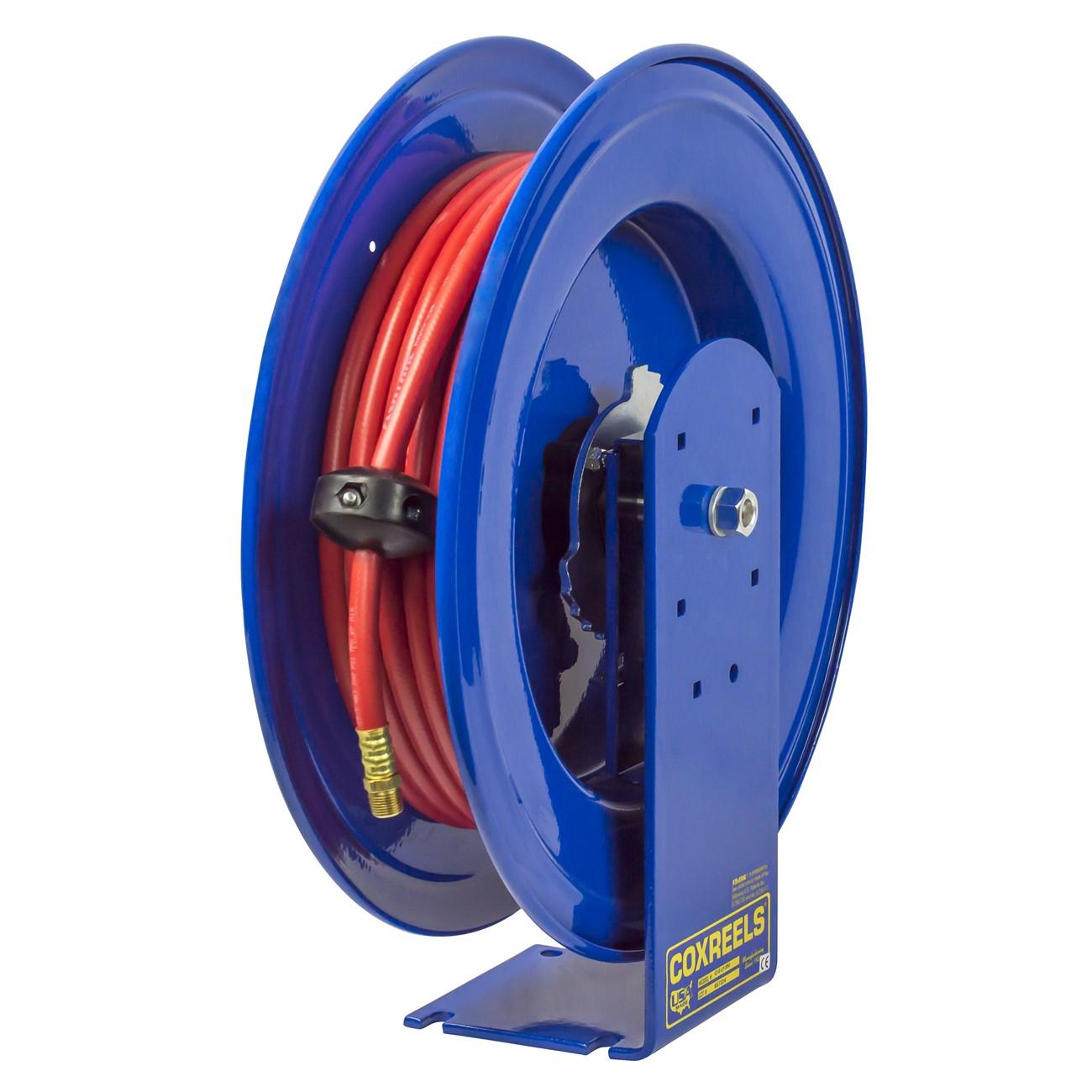

Coxreels EZ-E-LP-450 Spring Retractable Hose Reel 50 Ft

Product Description

The COXREELS EZ-E-LP-450 is a spring-retractable hose reel engineered for low-pressure fluid delivery applications in professional trade environments. Built around the E Series expandable bank system, this reel accepts 1/2-inch ID hose up to 50 feet in length and retracts using Coxreels patented EZ-Coil spring motor, which slows retraction speed by up to 80 percent compared to conventional reels. The unit weighs 50 pounds and measures 20.5 inches in length, 10.5 inches in width, and 22 inches in height. It is intended for installation by licensed tradespeople in service bays, shops, and organized multi-reel cabinet setups.

The EZ-E-LP-450 is suited for low-pressure hose delivery in automotive service, light industrial, and general trade shop environments. The E Series cabinet design is modular and expandable, allowing multiple reel assemblies to interlock into a single organized bank system. This makes the reel a practical choice for facilities that need to consolidate several fluid or air delivery points in one professional-grade cabinet installation. Typical installers include shop mechanics, plumbers, and facilities maintenance technicians setting up multi-media delivery systems.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts up to 80 percent slower than conventional reels for operator safety
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and structural durability
• Single pedestal design with solid one-piece steel base and support post, no-weld construction for maximum stability
• Expandable interlocking cabinet design supports multiple reel bank configurations
• CPC powder coat finish is chip resistant and rust inhibiting; includes adjustable solid rubber hose stop, multi-position lock ratchet, and lubricated precision bearings

Compatibility

Designed as an OEM-style replacement or new-installation reel for use with 1/2-inch ID low-pressure hose up to 50 feet in expandable E Series bank cabinet systems.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting and fluid delivery systems. Shut off all fluid supply lines and depressurize the system before mounting or servicing the reel. Secure the unit to a structurally sound surface using appropriate fasteners rated for the reel weight. Refer to applicable OSHA and facility safety guidelines during installation in shop or service bay environments.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 3/4 inch
• Maximum Hose Length: 50 feet
• Retraction Type: Spring driven (EZ-Coil)
• Swivel Material: Solid brass, 90-degree NPT full-flow
• Base Material: Steel, no-weld single pedestal
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 50 pounds
• UPC: 674255730229

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-E-LP-450
