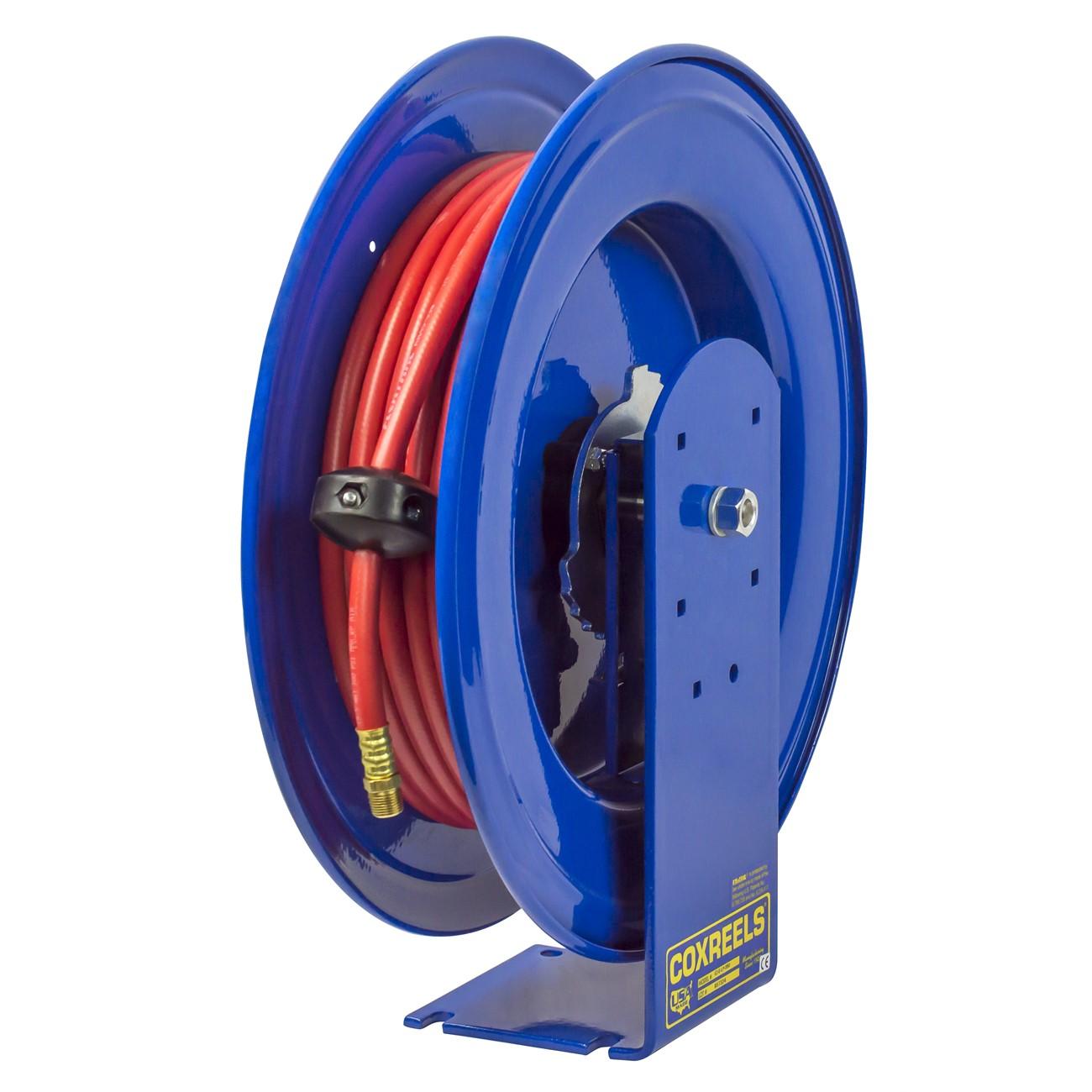

Coxreels EZ-E-LP-430 Spring Rewind Hose Reel 30 Ft

Product Description

The COXREELS EZ-E-LP-430 is a spring-driven, low-pressure hose reel built for professional fluid delivery applications in shops, service bays, and industrial work environments. Part of the COXREELS E Series EZ-Coil system, this reel accepts 1/2 inch ID hose up to 30 feet in length and features a patented retraction system that retracts up to 80 percent slower than conventional spring reels, reducing hose wear and operator injury risk. The solid one-piece steel base and CNC robotically spun discs make this a durable, long-service unit suited for licensed technicians and facilities maintenance professionals who need reliable hose management day in and day out.

The EZ-E-LP-430 is designed for low-pressure fluid delivery in single-reel or multi-reel bank configurations. The cabinet-compatible design integrates with COXREELS E Series interlocking expandable metal cabinets, allowing facilities to build out organized, multi-reel multimedia delivery stations. Typical installations include automotive service shops, fleet maintenance facilities, industrial plants, and commercial service bays where a clean, professional hose management solution is required.

Key Features

• Patented EZ-Coil retraction system retracts up to 80 percent slower than conventional reels for improved safety and reduced hose wear
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges provide greater strength, hose protection, and operator safety
• Solid one-piece steel base with single pedestal support post and no-weld construction for maximum stability
• Compatible with COXREELS E Series expandable interlocking cabinet bank systems for multi-reel professional installations
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and multi-position lock ratchet mechanism

Compatibility

Designed for use within the COXREELS E Series expandable multiple-bank cabinet system; compatible with low-pressure hose assemblies using 1/2 inch ID hose up to 30 feet in length.

Installation Notes

Installation is typically performed by a licensed mechanic, plumber, or facilities technician. Before servicing or mounting the reel, depressurize and disconnect all fluid supply lines. The lubricated cartridge-style spring motor is removable for maintenance without full reel removal. Ensure the mounting surface and pedestal base are secured to a stable structure capable of supporting the reel and hose load before placing the unit in service.

Technical Specifications

• Hose ID: 1/2 inch
• Max Hose Length: 30 feet
• Drive Type: Spring rewind (EZ-Coil)
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Base Material: Steel
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 41 pounds
• UPC: 674255730212

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-E-LP-430
