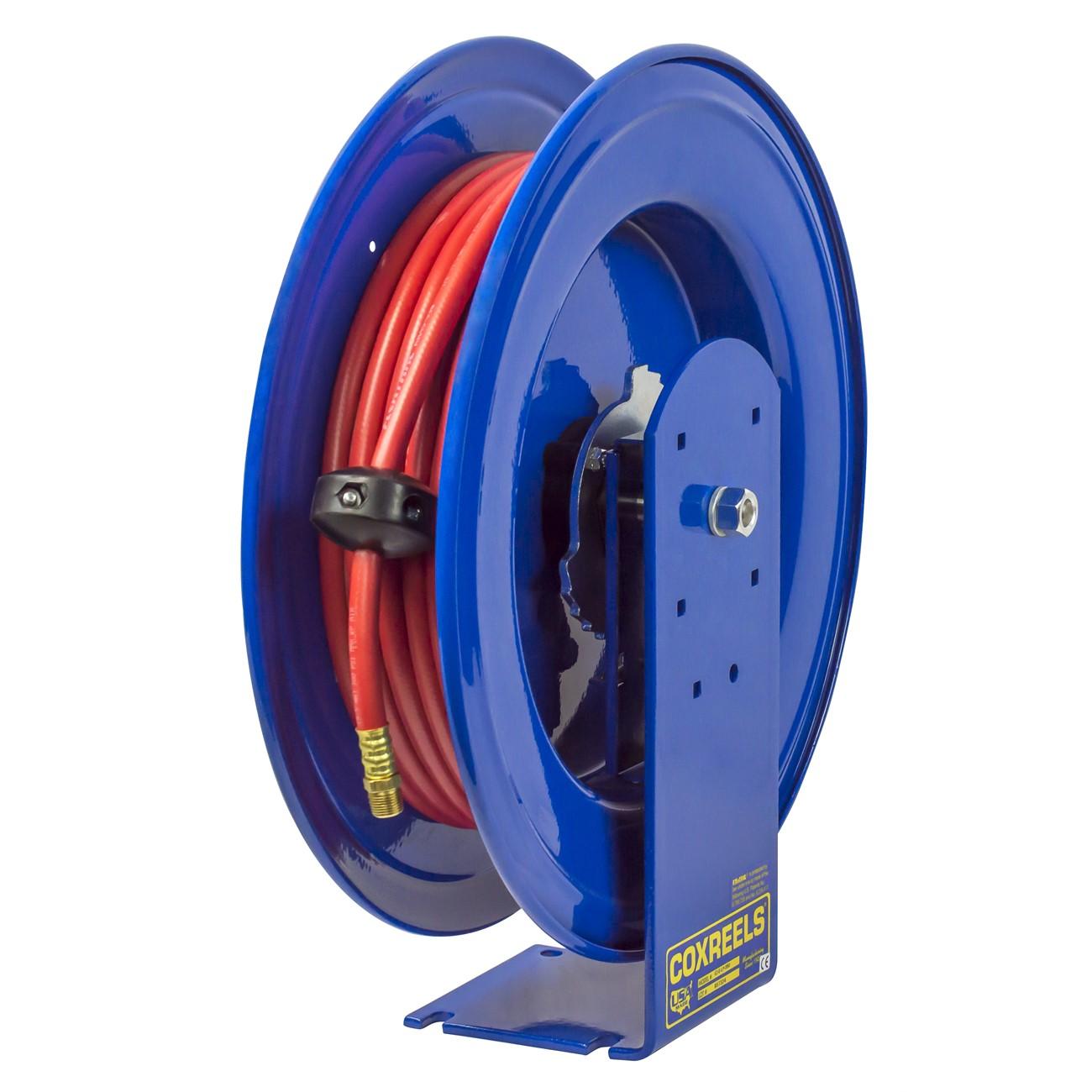

Coxreels EZ-E-LP-350 Spring Driven Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS EZ-E-LP-350 is a spring-driven retractable hose reel built for low-pressure fluid delivery applications in professional service environments. Part of the COXREELS E Series expandable bank system, this reel accepts 3/8 inch ID hose up to 50 feet and features the patented EZ-COIL retraction motor, which retracts up to 80% slower than conventional spring reels for improved operator safety. The unit is constructed with CNC robotically spun and ribbed steel discs, a solid one-piece steel base, and a chip-resistant CPC powder coat finish. Licensed tradespeople in automotive, industrial, and facility maintenance settings select this reel for organized, high-visibility hose management.

The EZ-E-LP-350 is designed for use in professional service bays, workshops, and facilities where multiple reels are deployed in a single location. The E Series cabinet system is interlocking and expandable, allowing any number of spring-driven reel assemblies to be combined into a unified bank for multimedia or multi-line delivery. The reel suits low-pressure applications involving air, water, or compatible fluids routed through 3/8 inch ID hose. Its single-pedestal mounting design simplifies installation on floors, walls, or within an enclosed cabinet bank.

Key Features

• EZ-COIL enclosed cartridge-style spring motor retracts up to 80% slower than conventional reels for improved safety; removable for maintenance without removing the reel from its mount
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges for increased strength, hose protection, and operator safety
• Solid one-piece steel base and support post with no-weld construction and Exclusive Super Hub dual axle support for maximum stability
• Designed for expandable interlocking metal cabinet bank systems to accommodate multiple reel assemblies
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop, multi-position lock ratchet mechanism, and lubricated precision bearings

Compatibility

Designed for use within the COXREELS E Series expandable cabinet bank system; accepts 3/8 inch ID hose up to 50 feet in length. Compatible with other E Series reel assemblies for multi-reel bank configurations.

Installation Notes

Installation should be performed by a qualified technician familiar with retractable hose reel mounting requirements. Shut off and depressurize the supply line completely before connecting or disconnecting hose or swivel fittings. Secure the base to a structurally adequate mounting surface using appropriately rated fasteners. Follow the manufacturer's instructions for cartridge motor removal and lubrication intervals during routine maintenance.

Technical Specifications

• Hose ID: 3/8 inches
• Hose Length: 50 feet
• Retraction Type: Spring driven (EZ-COIL enclosed cartridge motor)
• Swivel Material: Solid brass, machined
• Swivel Angle: 90 degrees
• Base Material: Steel, one-piece no-weld construction
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 46 pounds
• UPC: 674255730205

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-E-LP-350
