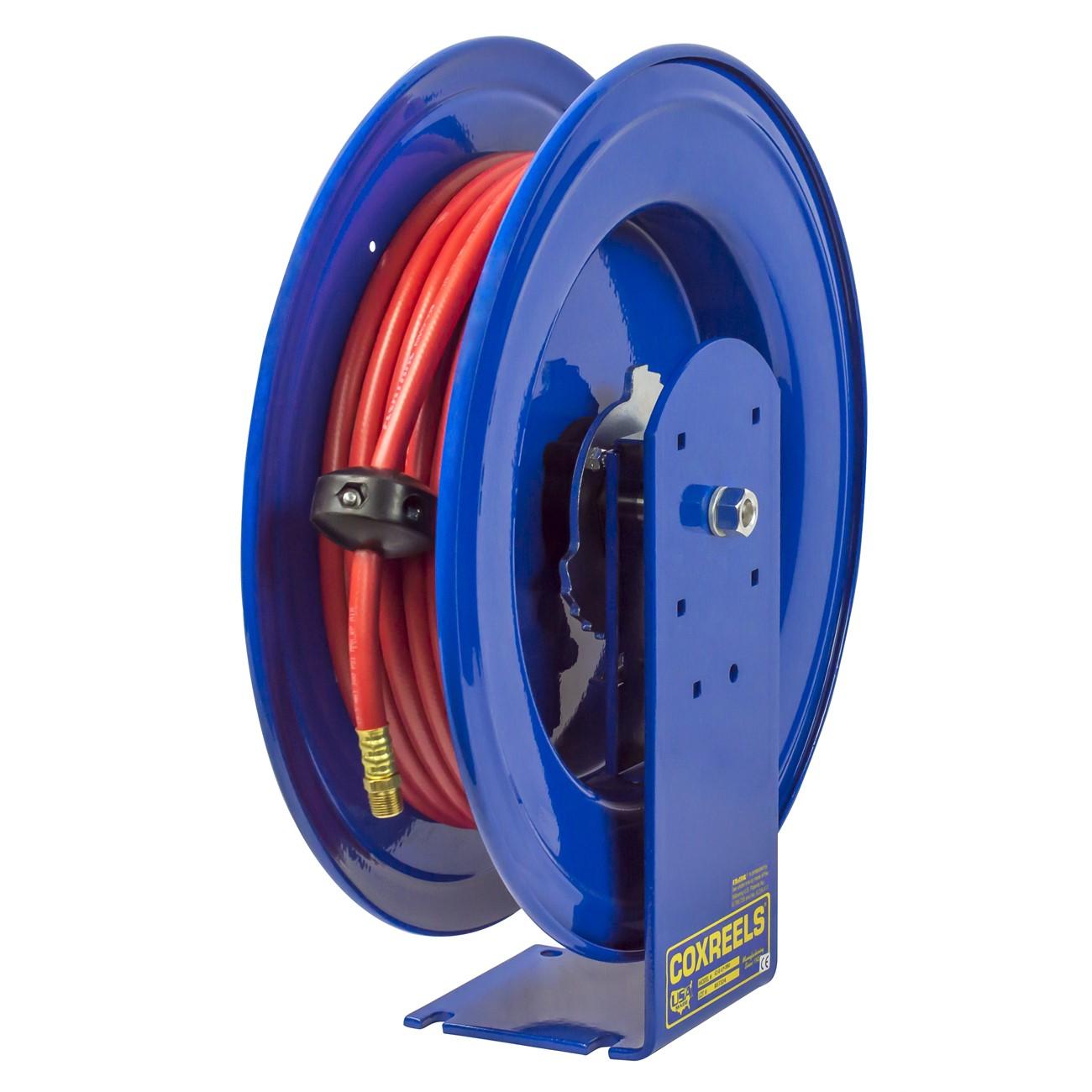

Coxreels EZ-E-LP-330 Spring Retractable Hose Reel

Product Description

The COXREELS EZ-E-LP-330 is a spring-retractable hose reel designed for low-pressure fluid delivery in professional service environments. Built around Coxreels EZ-Coil technology, the reel retracts up to 80% slower than conventional spring-driven reels, reducing wear on the hose and improving operator safety. The unit accepts 3/8-inch ID, 5/8-inch OD hose up to 30 feet in length. A machined solid brass 90-degree full-flow NPT swivel allows fast hose installation and seal maintenance without removing the reel from its mount. This reel is installed by service technicians in automotive, industrial, and trade shop settings where organized, retractable hose delivery is required.

The EZ-E-LP-330 is part of the Coxreels E Series, which features interlocking, expandable metal cabinets that can be configured into multiple-reel bank systems. This makes it a practical choice for service bays, maintenance facilities, and mobile service units where multiple hose stations need to share a common, organized enclosure. The single-pedestal steel base design mounts cleanly to a wall or floor installation. The reel suits applications involving air, water, and other low-pressure media delivered through 3/8-inch hose assemblies.

Key Features

• EZ-Coil spring motor retracts up to 80% slower than standard reels, reducing hose snap-back and operator risk
• Lubricated, enclosed cartridge-style spring motor is removable for maintenance without full reel disassembly
• Machined solid brass 90-degree full-flow NPT swivel supports seal service and hose changes without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and structural durability
• One-piece steel base with single-pedestal support post, no-weld construction for maximum stability
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and multi-position lock ratchet mechanism

Compatibility

Designed for use with 3/8-inch ID, 5/8-inch OD hose up to 30 feet. Compatible with the Coxreels E Series expandable interlocking cabinet bank system for multi-reel configurations.

Installation Notes

Installation is typically performed by a qualified technician familiar with hose reel mounting and fluid system connections. Shut off and depressurize the supply line before connecting or servicing any hose or swivel fitting. Secure the base to a structurally sound mounting surface using appropriate fasteners for the substrate. Verify that hose ratings are compatible with the intended media and working pressure before placing the reel in service.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Hose Length Capacity: 30 feet
• Spring Motor Type: EZ-Coil enclosed cartridge, spring-driven retractable
• Swivel Material: Solid brass, machined
• Base Construction: One-piece steel, single-pedestal, no-weld
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 33 pounds
• UPC: 674255730199

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-E-LP-330
