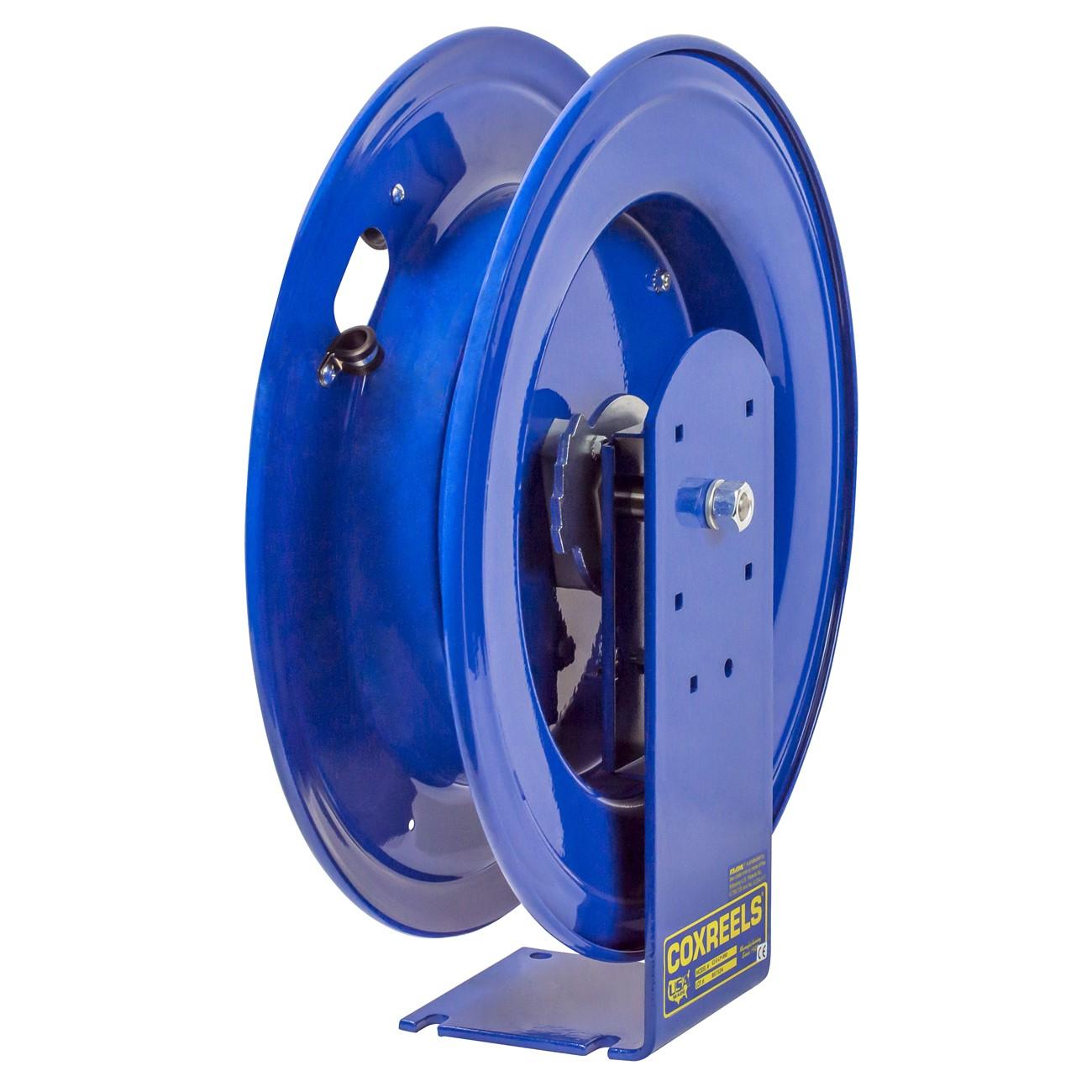

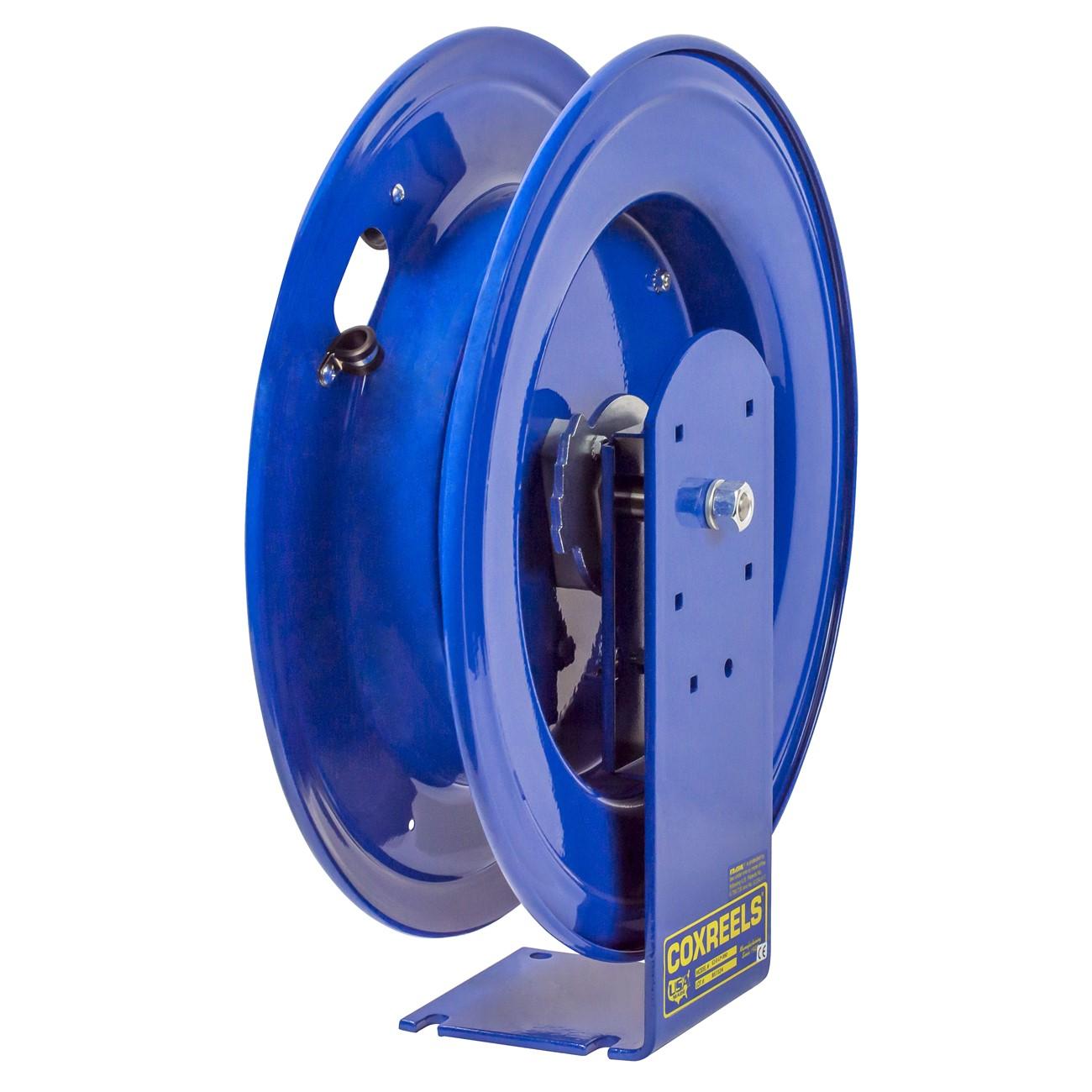

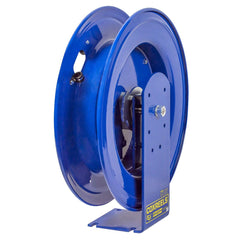

Coxreels EZ-E-HPL-330 Spring Rewind Hose Reel 3/8 in 30 Ft

Product Description

The COXREELS EZ-E-HPL-330 is a spring-driven retractable hose reel from the E Series expandable bank system, built for professional service environments where consistent hose management and fast retrieval are essential. Designed for 3/8 inch inner diameter hose with an 11/16 inch outer diameter and a 30-foot hose capacity, this reel uses Coxreels patented EZ-COIL retraction system, which retracts up to 80 percent slower than conventional spring reels. A machined zinc-plated steel 90-degree full-flow NPT swivel allows for hose installation and seal maintenance without removing the reel from its mount. Licensed HVAC technicians, plumbers, and shop service professionals typically specify this unit for fixed-bay or mobile service installations.

The EZ-E-HPL-330 is suited for professional service bays, fleet maintenance facilities, and trade shops requiring organized, multi-reel hose delivery setups. The E Series cabinet design is interlocking and expandable, allowing multiple spring-driven reel assemblies to be combined into a single bank system. This makes it a practical choice for shops running compressed air, fluid transfer, or other hose-based services from a centralized point. The reel ships as a single unit and integrates directly into existing E Series cabinet banks.

Key Features

• EZ-COIL patented retraction system retracts up to 80 percent slower than conventional spring reels for improved operator safety
• Lubricated, enclosed cartridge-style spring motor is removable for maintenance without full reel disassembly
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows hose installation and seal service without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• 1/4 inch solid one-piece steel base and support post with no-weld construction and dual-axle Exclusive Super Hub support
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes multi-position lock ratchet mechanism and lubricated precision bearings

Compatibility

Designed for use with 3/8 inch ID, 11/16 inch OD hose up to 30 feet in length. Compatible with COXREELS E Series interlocking expandable cabinet bank systems for multi-reel professional installations.

Installation Notes

Installation is typically performed by a licensed plumber, HVAC technician, or qualified maintenance technician. Shut off and depressurize the supply line before connecting or servicing the swivel and hose fittings. The single-pedestal steel base should be secured to a stable mounting surface per the manufacturer mounting instructions before pressurizing the system. The spring motor cartridge is field-removable for maintenance — do not attempt to disassemble the spring motor outside of the cartridge assembly.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Outer Diameter: 11/16 inch
• Hose Capacity: 30 feet
• Retraction Type: Spring-driven (EZ-COIL)
• Swivel Material: Zinc-plated steel
• Base Construction: 1/4 inch solid one-piece steel, no-weld
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 39 pounds
• Sold As: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-E-HPL-330
