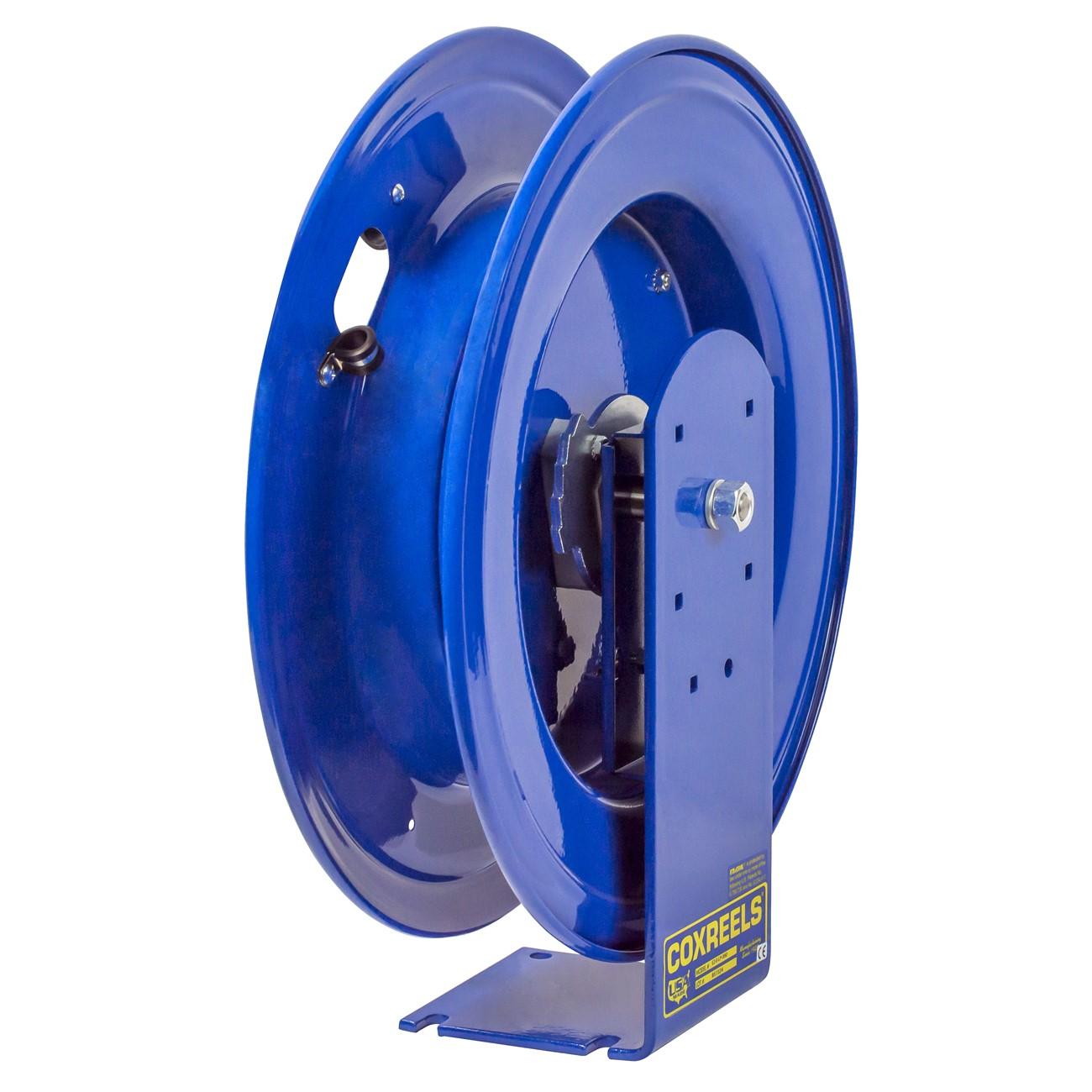

Coxreels EZ-E-HPL-150 Hose Reel 1/4 Inch Id 50 Ft

Product Description

The COXREELS EZ-E-HPL-150 is a spring-retractable hose reel from the E Series EZ-Coil line, designed for professional-grade fluid and air delivery in industrial and service environments. Built around a lubricated, enclosed cartridge-style spring motor, it retracts hose up to 80% slower than conventional reels, reducing snap-back hazards during retraction. The reel accepts 1/4 inch ID, 9/16 inch OD hose at 50 feet in length. A machined zinc-plated steel 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount. Licensed tradespeople and service technicians in automotive, HVAC, and industrial maintenance use this reel as a permanent or semi-permanent overhead or wall-mounted delivery point.

The EZ-E-HPL-150 fits into the E Series expandable bank cabinet system, which allows multiple spring-driven reel assemblies to be mounted and interlocked in a single organized enclosure. This makes it well suited for multi-bay service facilities, fleet maintenance shops, and professional service vans or trailers where multiple fluid or air delivery points are required from one unified installation. The reel ships as a single unit and can be integrated into a larger bank system as needs grow.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts up to 80% slower than conventional reels for improved operator safety
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose changes without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and structural durability
• Solid one-piece steel base and support post with no-weld single pedestal design for maximum stability
• Compatible with E Series expandable interlocking metal cabinet bank systems for multi-reel installations
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes multi-position lock ratchet and lubricated precision bearings

Compatibility

Designed for use within the COXREELS E Series expandable bank cabinet system; accepts 1/4 inch ID hose up to 50 feet in length. Consult COXREELS documentation for compatible cabinet enclosures and additional bank reel assemblies.

Installation Notes

Installation is typically performed by a qualified technician familiar with compressed air or fluid distribution systems. Shut off and depressurize any supply line before mounting or connecting the reel. Secure the reel to a structurally adequate wall, ceiling, or cabinet mount rated for the combined weight of the unit and filled hose. Follow applicable facility safety codes and manufacturer torque guidance for swivel and inlet fittings during final connection.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 9/16 inch
• Hose Length: 50 feet
• Spring Motor Type: Enclosed cartridge, lubricated
• Swivel Material: Zinc-plated steel
• Swivel Angle: 90 degrees full-flow NPT
• Disc Construction: CNC robotically spun, ribbed with rolled edges
• Base Construction: One-piece steel, no-weld single pedestal
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 49 pounds
• UPC: 674255730403

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-E-HPL-150
